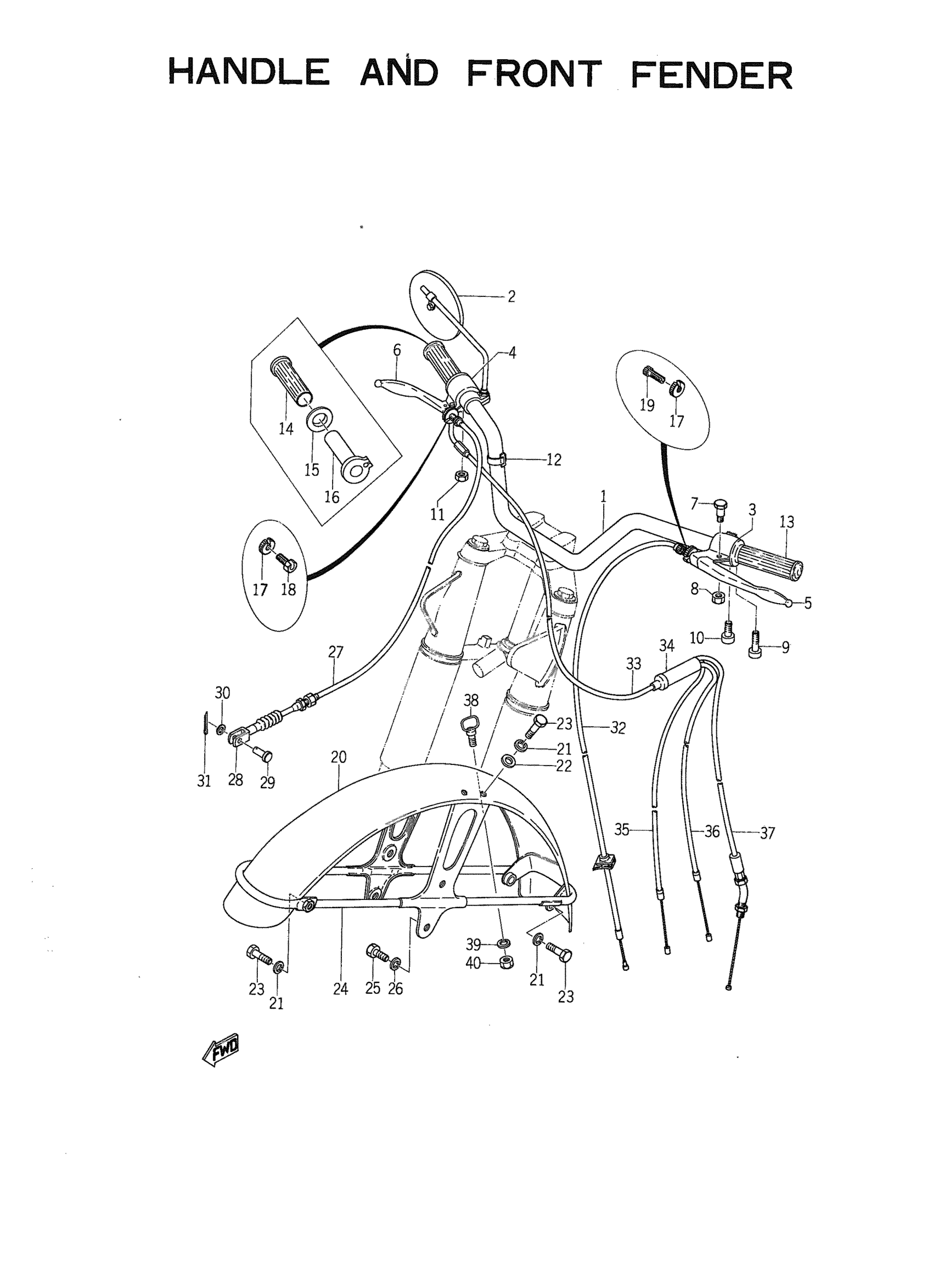

Yamaha YDS5E (YDS5E) 169 1967 HANDLE AND FRONT FENDER Diagram

#

Description
Price

1

HANDLEBAR

156-26111-00-00

Unavailable

2

MIRROR ASY

253-26290-00-00

Unavailable

3

LEVER HOLDER ASSEMBLY 1

168-82910-09-00

Unavailable

4

LEVER HOLDER ASSEMBLY 2

169-82820-10-94

Unavailable

5

LEVER L

150-83912-00-38

Unavailable

6

LEVER R

218-83922-30-38

Unavailable

7

BOLT

90109-06333-00

Unavailable

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

9

SCREW, PAN HEAD

98580-05020-00

Unavailable

10

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

10

SCREW, PAN HEAD

98580-05020-00

Unavailable

11

NUT, HEXAGON

90170-10038-00

$4.67

12

BAND, SWITCH CORD

437-83936-01-00

$7.99

13

GRIP (LH)

156-26241-00-00

Unavailable

14

GRIP (RH)

156-26242-00-00

Unavailable

15

RING, LEAF

150-26249-00-00

Unavailable

16

TUBE, GUIDE

1V1-26243-00-00

Unavailable

17

NUT

90179-08030-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

BOLT

90123-08002-00

Unavailable

20

FENDER, FRONT

156-21510-01-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

BOLT(3JP)

97017-06010-00

Unavailable

24

STAY, FENDER 1

156-21513-01-00

Unavailable

25

BOLT(62E)

97013-08012-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

CABLE,BRAKE

174-26341-10-00

Unavailable

28

JOINT, WIRE

156-26347-00-00

Unavailable

29

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

30

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

31

PIN, COTTER

91490-20025-00

Unavailable

32

CABLE, CLUTCH

170-26335-10-00

Unavailable

33

CABLE, THROTTLE 1

170-26311-10-00

Unavailable

34

CYLINDER, WIRE

156-26261-01-00

Unavailable

35

CABLE, THROTTLE 3

170-26313-00-00

Unavailable

36

CABLE, THROTTLE 3

170-26313-00-00

Unavailable

37

CABLE, PUMP

170-26321-00-00

Unavailable

38

HOLDER, CABLE

152-21518-00-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

NUT, HEXAGON

95380-06600-00

Unavailable
