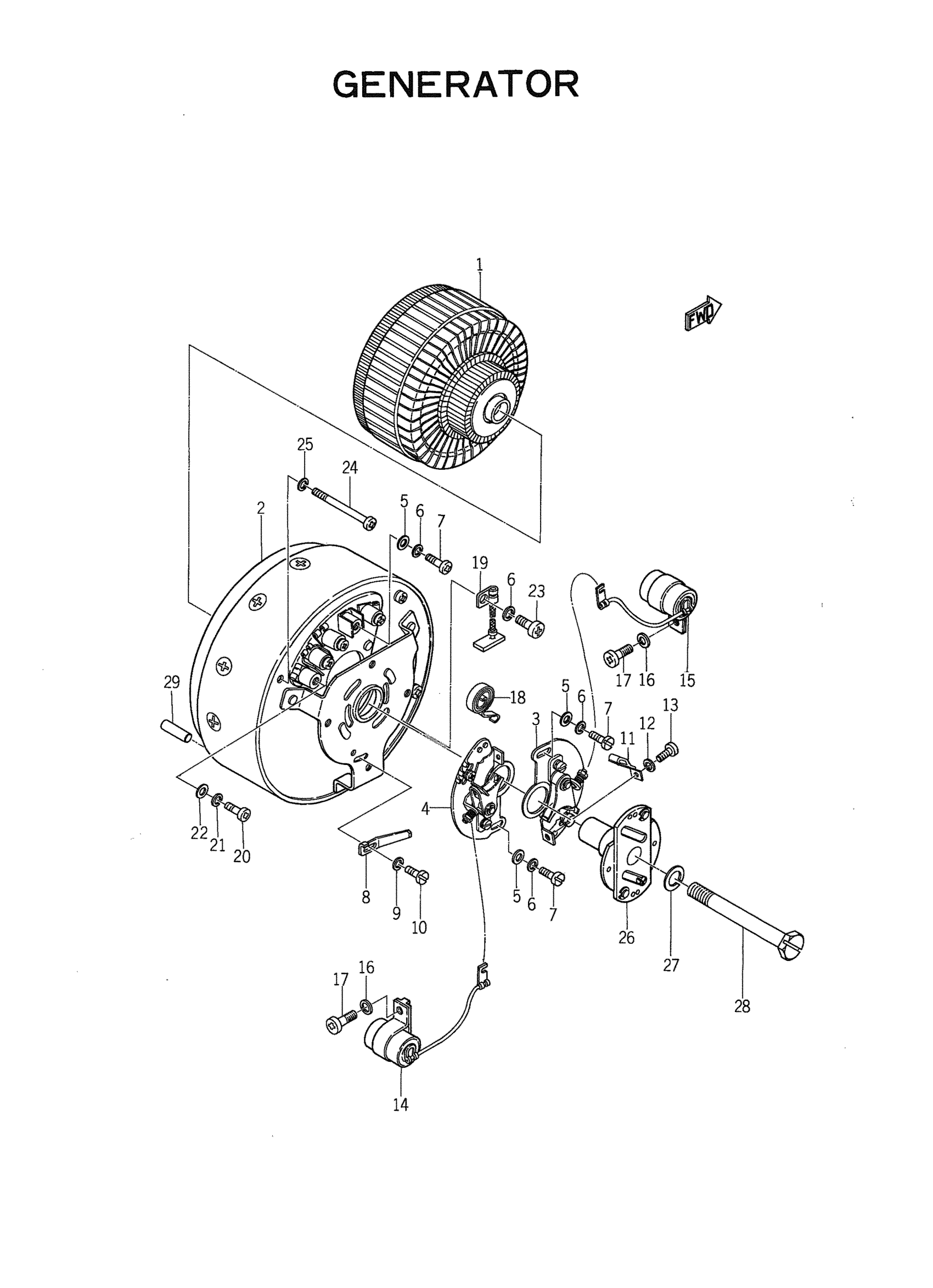

Yamaha YDS5E (YDS5E) 169 1967 GENERATOR (YDS5) Diagram

#

Description
Price

1

ARMATURE

169-81155-20-00

Unavailable

1

ARMATURE

169-81155-21-00

Unavailable

2

STATOR ASSEMBLY

169-81110-22-00

Unavailable

2

STATOR ASSEMBLY

169-81110-22-00

Unavailable

3

CONTACT BRKR ASSEMBLY 2

169-81122-20-00

Unavailable

3

CONTACT BRKR ASSEMBLY 2

169-81122-22-00

Unavailable

4

CONTACT BRKR ASSEMBLY

169-81121-20-00

Unavailable

4

CONTACT BRKR ASSEMBLY

169-81121-22-00

Unavailable

5

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

SCREW,PAN HEAD

164-81246-20-00

Unavailable

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

PLATE, TIMING

169-81132-21-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

SCREW,PAN HEAD

164-81246-20-00

Unavailable

10

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

11

LUBRICATOR

168-81231-20-00

Unavailable

12

WASHER, SPRING

92990-03100-00

Unavailable

13

. SCREW

92503-03006-00

Unavailable

13

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

14

CONDENSER 2

169-81126-21-00

Unavailable

15

CONDENSER 1

169-81125-20-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

17

SCREW,PAN HEAD

164-81245-20-00

Unavailable

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

.. SPRING, BRUSH

165-81113-20-00

Unavailable

19

.. BRUSH

165-81111-20-00

Unavailable

20

SCREW

92503-05008-00

Unavailable

20

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

. WASHER, PLAIN

92990-05200-00

Unavailable

23

SCREW,PAN HEAD

164-81245-20-00

Unavailable

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

24

SCREW, STATOR

165-81135-20-00

Unavailable

24

. SCREW, STATOR

165-81135-21-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

GOVERNOR ASSEMBLY

169-81153-20-00

Unavailable

26

GOVERNOR ASSEMBLY

169-81153-22-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

BOLT

169-81152-20-00

Unavailable

29

PIN, DOWEL

93603-14026-00

Unavailable

30

FIXTURE, TMNG PLATE

169-81133-20-00

Unavailable

31

. SCREW

92503-03006-00

Unavailable

31

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

32

WASHER, SPRING

92990-03100-00

Unavailable

33

WASHER,PLAIN

92990-03200-00

Unavailable
