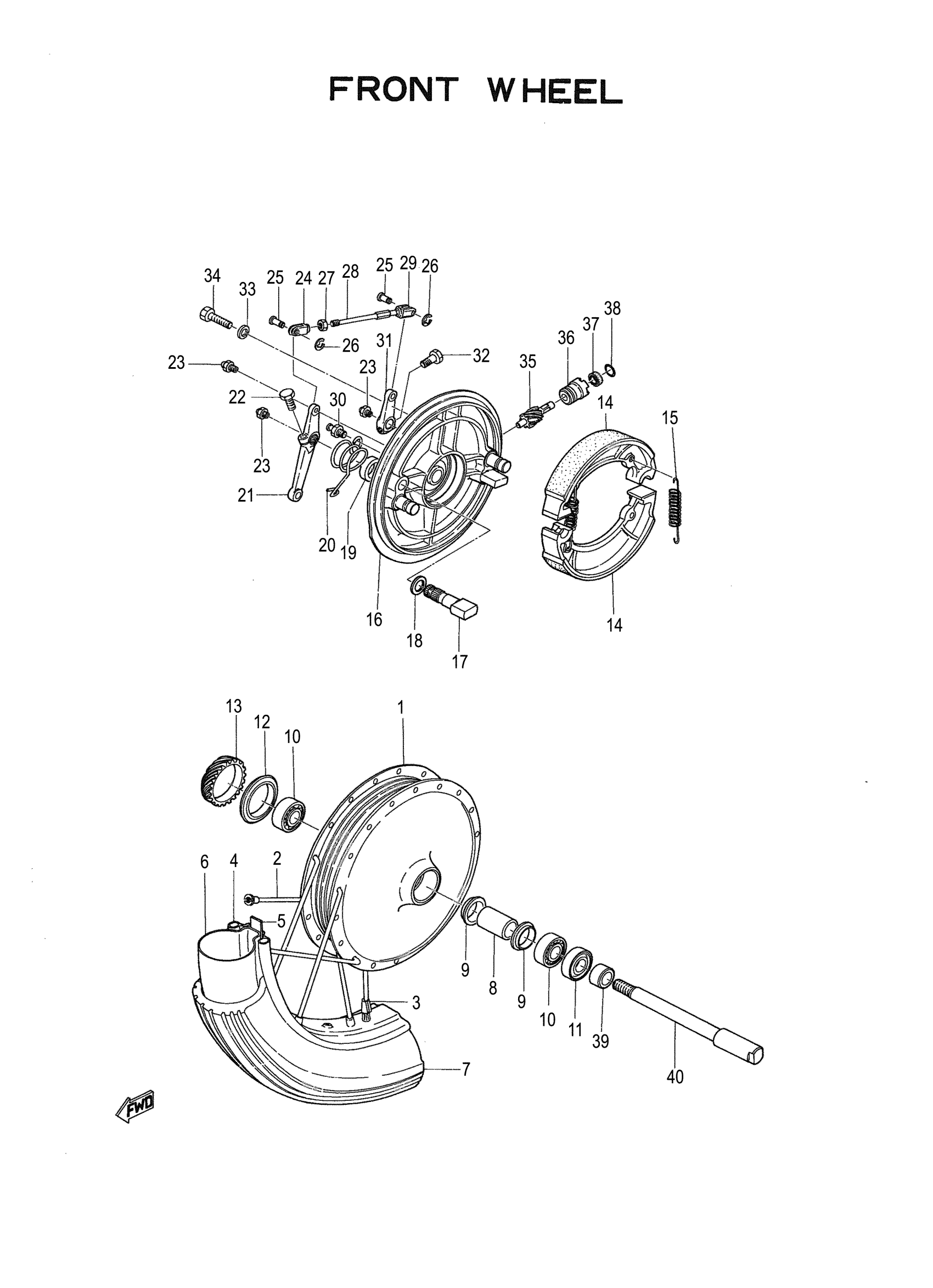

Yamaha YDS5E (YDS5E) 169 1967 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

152-25111-00-00

Unavailable

2

SPOKE SET, FRONT

152-25104-00-00

Unavailable

3

BALANCER, WHEEL

3HT-25398-00-00

$7.99

4

RIM 1.60X18

94416-18013-00

Unavailable

5

BAND, RIM (2J4)

94340-18086-00

$17.99

6

TUBE (5H5)

94227-18195-00

$35.99

7

300-18 YOKO Y986

94130-18363-00

Unavailable

8

SPACER, BEARING

152-25117-00-00

Unavailable

9

FLANGE, SPACER

146-25315-00-00

$7.99

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

OIL SEAL, SDD-TYPE

93105-24006-00

Unavailable

12

OIL SEAL, OS-TYPE

93107-50003-00

Unavailable

13

GEAR, DRIVE

152-25135-00-00

Unavailable

14

BRAKESHOE SET-2PCS

168-W2535-00-00

Unavailable

15

SPRING, TENSION 2462533300

90507-20002-00

$8.49

16

PLATE,BRAKE SHOE

156-25121-01-00

Unavailable

17

CAMSHAFT

168-25151-00-00

Unavailable

18

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

19

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

20

SPRING,TORSION

90508-23032-00

Unavailable

21

LEVER,CAMSHAFT 1

168-25155-00-00

Unavailable

22

BOLT(3DM)

97024-06020-00

Unavailable

23

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

END, ROD 1

152-25163-00-00

Unavailable

25

PIN, SPEC'L SHAPE

90249-06095-00

Unavailable

26

CIRCLIP (EU0)

99080-04600-00

Unavailable

27

NUT(650)

95380-06700-00

Unavailable

28

ROD, CONNECTING

152-25161-00-00

Unavailable

29

END, ROD 2

152-25164-00-00

Unavailable

30

SPRING, HOOK PIN

152-25125-00-00

Unavailable

31

LEVER,CAMSHAFT 2

168-25156-00-00

Unavailable

32

BOLT, HEXAGON

97017-06025-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

BOLT(3DM)

97024-06020-00

Unavailable

35

GEAR, METER

152-25138-00-00

Unavailable

36

BUSHING

109-25136-00-00

Unavailable

37

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

38

O-RING (26H)

93210-14579-00

Unavailable

39

COLLAR

90387-17136-00

Unavailable

40

AXLE, WHEEL

152-25181-00-00

Unavailable
