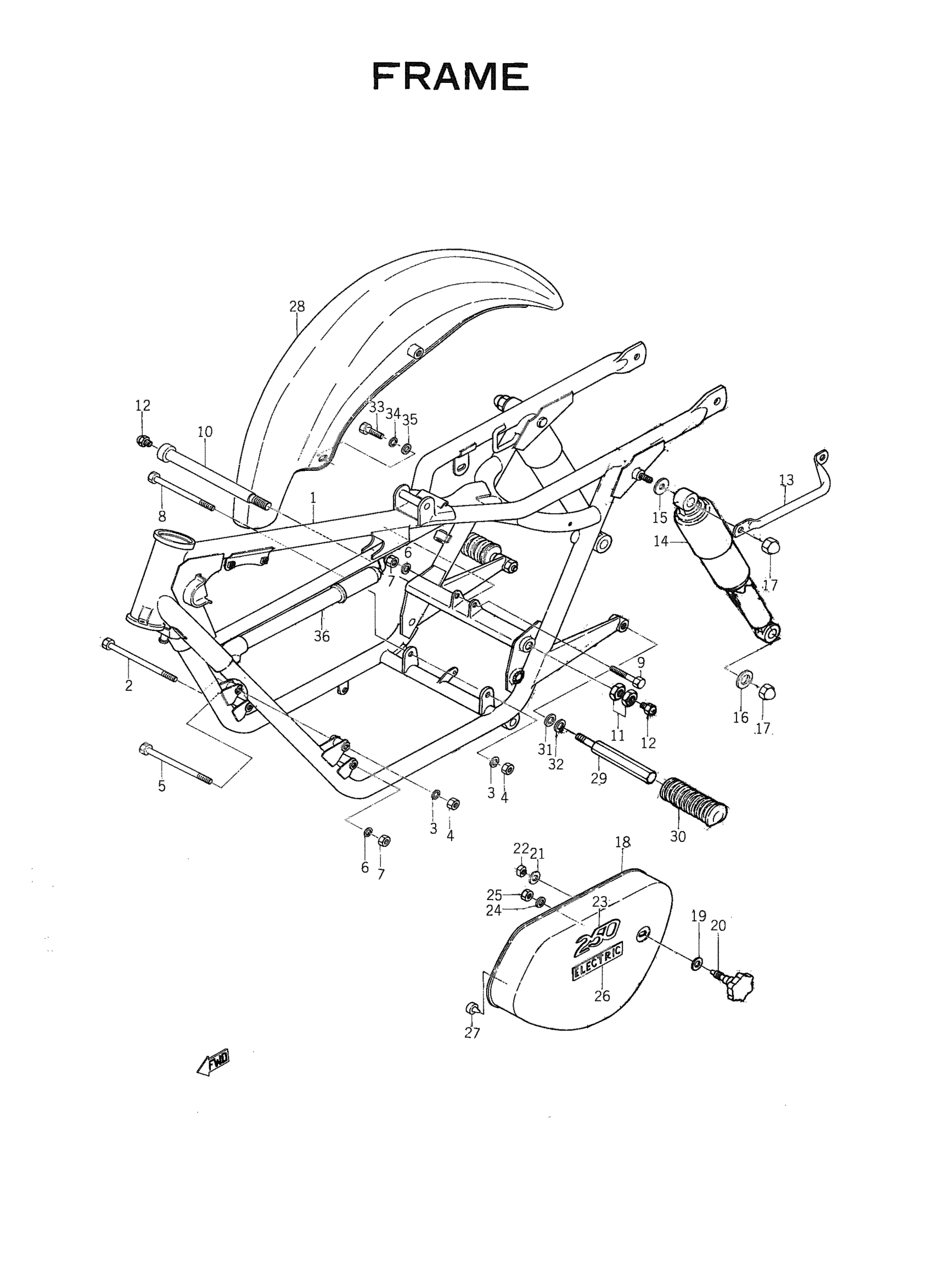

Yamaha YDS5E (YDS5E) 169 1967 FRAME Diagram
#
1
FRAME
204-21110-11-33
Unavailable
2
BOLT
90101-10085-00
Unavailable
5
BOLT,WASHER BASED
90105-08033-00
Unavailable
5
BOLT, WASHER BASED
90105-08034-00
Unavailable
8
BOLT, WASHER BASED
90105-10227-00
Unavailable
9
BOLT, HEXAGON
97013-08050-00
Unavailable
10
SHAFT, PIVOT
156-22141-00-00
Unavailable
11
NUT,HEXAGON
90170-14147-00
Unavailable
12
NIPPLE, GREASE
93700-06M03-00
Unavailable
13
HANDLE, STANDING
168-21165-00-00
Unavailable
14
SHK/ABS ASSEMBLY, REAR
156-22210-01-44
Unavailable
14
SHK/ABS ASSEMBLY, REAR
156-22210-01-63
Unavailable
14
SHK/ABS ASSEMBLY, REAR
156-22210-01-81
Unavailable
15
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
16
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
17
NUT, CROWN (650)
95380-10800-00
Unavailable
18
COVER, SIDE 1
170-21711-00-29
Unavailable
19
WASHER, SPECIAL 1
136-21715-00-00
Unavailable
20
KNOB, SIDE COVER 1
156-21714-00-00
Unavailable
21
CLAMP, DAMPER
156-21729-00-00
Unavailable
22
NUT(650)
95380-06700-00
Unavailable
23
EMBLEM 6
170-21786-00-00
Unavailable
24
WASHER PLATE 174283160000
90202-04003-00
Unavailable
25
NUT SPRING 116283170100
90183-04005-00
Unavailable
26
EMBLEM 7
176-21787-00-00
Unavailable
27
DAMPER, SIDE COVER
141-21717-00-00
Unavailable
28
FENDER, REAR
172-21610-00-00
Unavailable
29
FOOTREST,REAR 1
169-27431-00-00
Unavailable
30
COVER, RR FOOTREST
156-27433-00-00
Unavailable
31
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
33
BOLT(JA9)
90101-08691-00
Unavailable
35
WASHER, PLAIN
92990-08200-00
Unavailable
36
PUMP,AIR
150-28181-00-00
Unavailable
