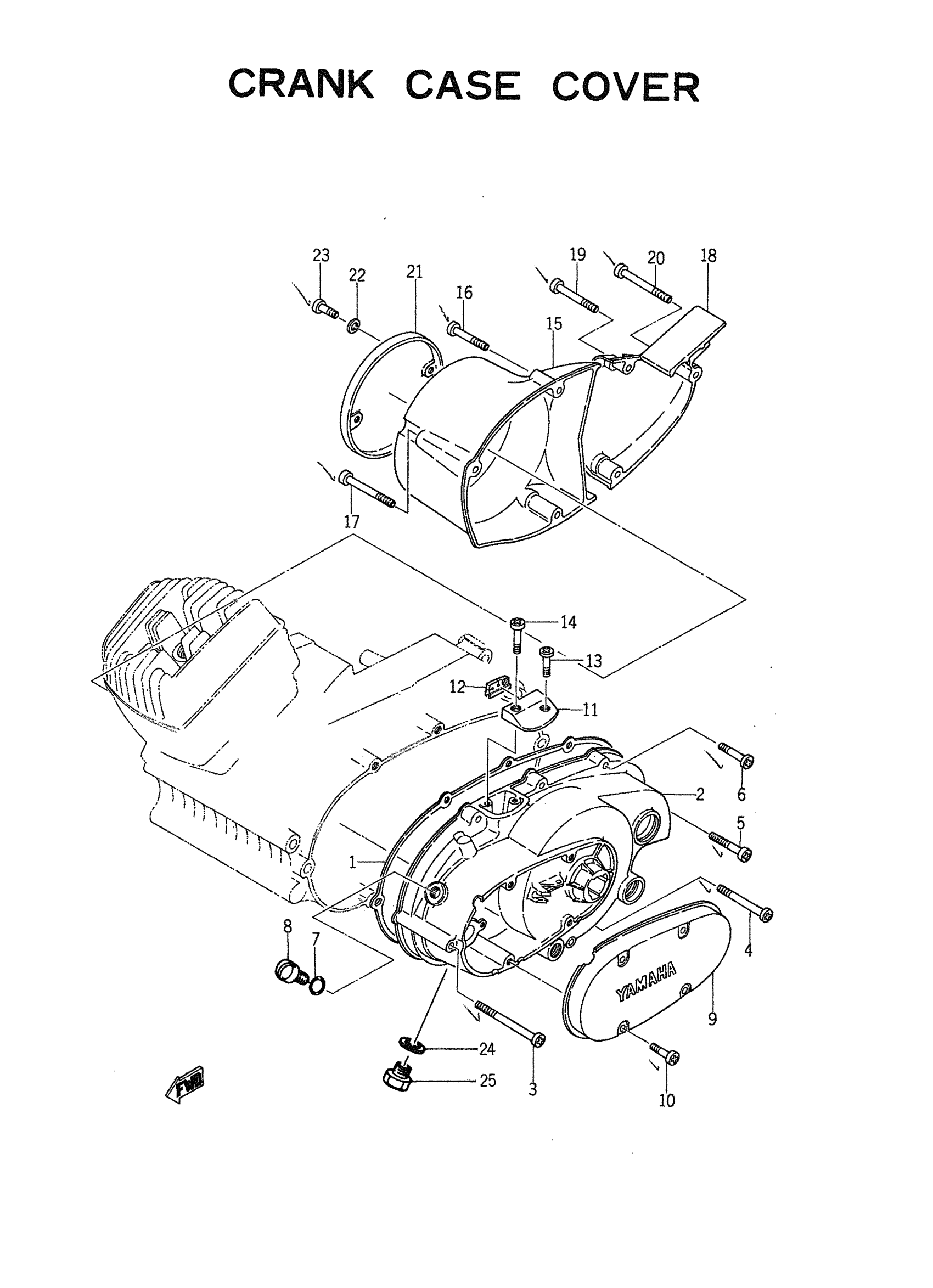

Yamaha YDS5E (YDS5E) 169 1967 CRANKCASE COVER Diagram

#

Description
Price

1

GASKET, CRANKCASR COVER

156-15451-00-00

Unavailable

2

COVER, CRANKCASE L

204-15411-01-00

Unavailable

3

SCREW, PAN HEAD

98507-06095-00

Unavailable

4

SCREW, PAN HEAD

98580-06580-00

Unavailable

5

SCREW PAN HEAD

98580-06040-00

$8.49

6

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

7

O-RING (137)

93210-13016-00

$7.49

8

PLUG,OIL

137-15363-00-00

Unavailable

9

COVER, OIL PUMP

170-15416-00-00

Unavailable

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

PROTECTOR

170-15491-00-00

Unavailable

12

SEAL, PROTECTOR

168-15494-00-00

Unavailable

13

SCREW,PAN HEAD

92503-05012-00

Unavailable

13

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

14

SCREW, PAN HEAD

92501-05006-00

Unavailable

14

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

15

COVER, CRANKCASE R

169-15421-01-00

Unavailable

16

SCREW PAN HEAD

98580-06545-00

Unavailable

17

SCREW PAN HEAD

98580-06570-00

Unavailable

17

SCREW, PAN

98507-06100-00

Unavailable

18

COVER, CRANKCASE 3

170-15431-00-00

Unavailable

19

SCREW PAN HEAD

98580-06545-00

Unavailable

20

SCREW PAN HEAD

98580-06040-00

$8.49

21

COVER,GENERATOR

372-15415-00-00

Unavailable

22

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

23

SCREW,PAN HEAD

92503-04015-00

Unavailable

23

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

24

GASKET

90430-08076-00

Unavailable

25

PLUG,OIL LEVEL

146-15362-00-00

Unavailable
