CRANK AND PISTON

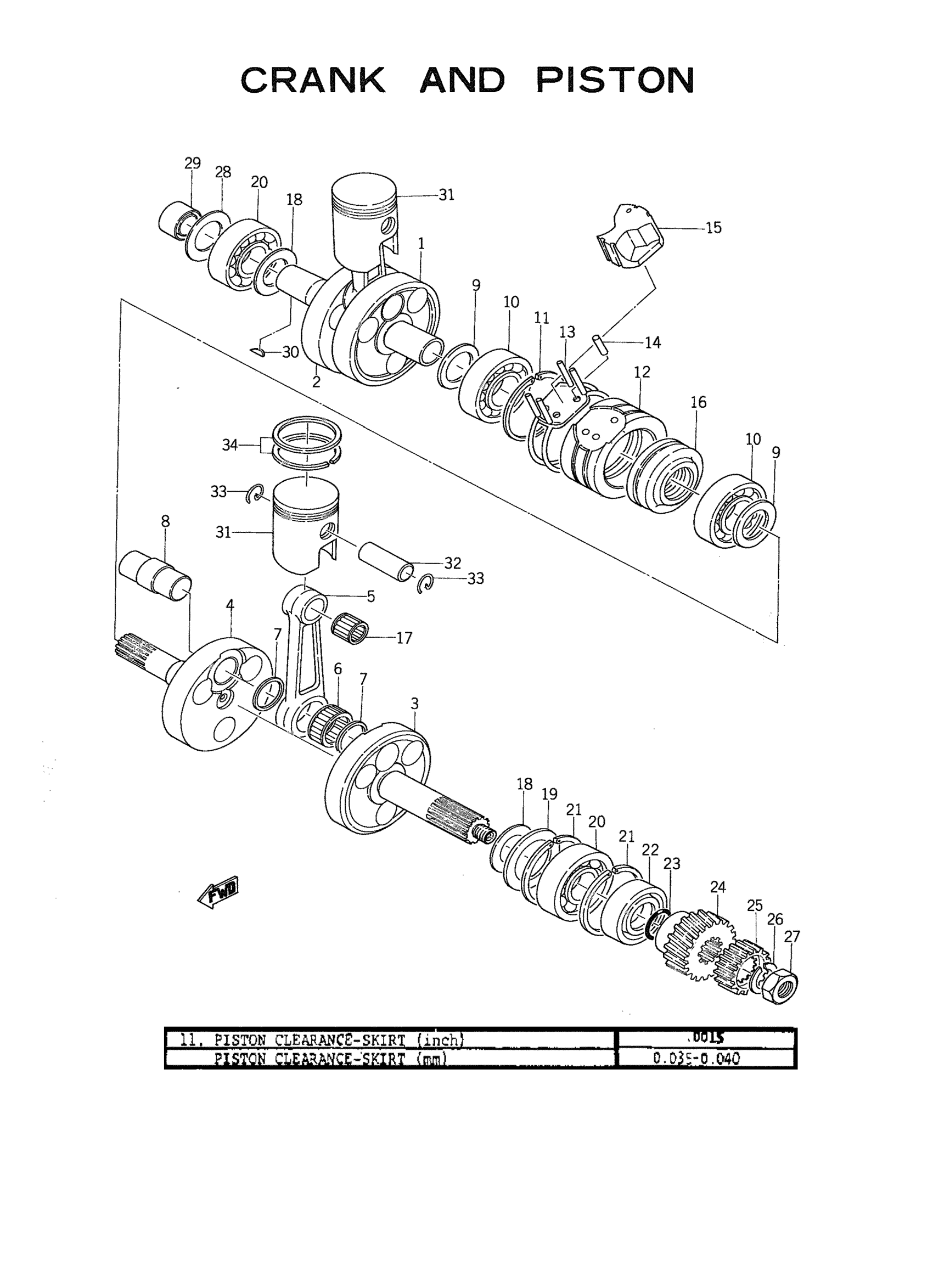

Yamaha YDS5E (YDS5E) 169 1967 CRANK AND PISTON Diagram
#
1
. CRANK 3
156-11432-01-00
Unavailable
2
. CRANK 4
170-11442-00-00
Unavailable
3
. CRANK 1
170-11412-00-00
Unavailable
4
CRANK 2
156-11422-01-00
Unavailable
5
ROD,CONNECTING
246-11651-00-00
Unavailable
6
BEARING, CYLINDER.#10
93310-42417-00
Unavailable
8
PIN, CRANK 1
156-11681-00-00
Unavailable
9
. SHIM, CRANK 4 (25-44-05)
156-11564-00-04
Unavailable
12
. COVER, CRANK
170-11511-00-00
Unavailable
13
. SEAL, CRANK COVER
170-11512-00-00
Unavailable
15
. METAL, FILLER
170-11541-00-00
Unavailable
16
SEAL, LABYRINTH 1
145-11515-01-00
Unavailable
17
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
18
SHIM, CRANK 2
156-11562-00-05
Unavailable
19
SHIM, CRANK 1
156-11561-00-00
Unavailable
20
BEARING (8R9)
93306-30536-00
Unavailable
22
OIL SEAL, SW-TYPE
93103-35015-00
Unavailable
23
O-RING (169)
93210-25071-00
Unavailable
24
GEAR, PRI DRIVE
170-16111-00-00
Unavailable
25
GEAR, DRIVE
170-13188-00-00
Unavailable
26
WASHER(JN5)
92907-16100-00
Unavailable
27
NUT
90170-16425-00
Unavailable
28
SHIM,CRANK 3
156-11563-00-00
Unavailable
29
OIL SEAL (20X36X10-733)
93103-20110-00
Unavailable
30
KEY,WOODRUFF
90280-04005-00
Unavailable
31
PISTON STD
156-11631-00-96
Unavailable
31
PISTON 1 O/S 0.25
156-11635-00-00
Unavailable
31
PISTON 2 O/S 0.50
156-11636-00-00
Unavailable
31
PISTON 3 O/S 0.75
156-11637-00-00
Unavailable
31
PISTON 4 O/S 1.00
156-11638-00-00
Unavailable
32
PIN, PISTON
137-11633-10-00
Unavailable
33
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
34
PISTON RINGSET STD
156-11601-00-00
Unavailable
34
PISTON RINGSET 1ST (0.25MM)
156-11601-10-00
Unavailable
34
PISTON RINGSET 2ND
156-11601-20-00
Unavailable
34
PISTON RINGSET 3RD
156-11610-30-00
Unavailable
34
PISTON RINGSET 4TH
156-11610-40-00
Unavailable
35
CRANKSHAFT ASY
170-11400-00-00
Unavailable
