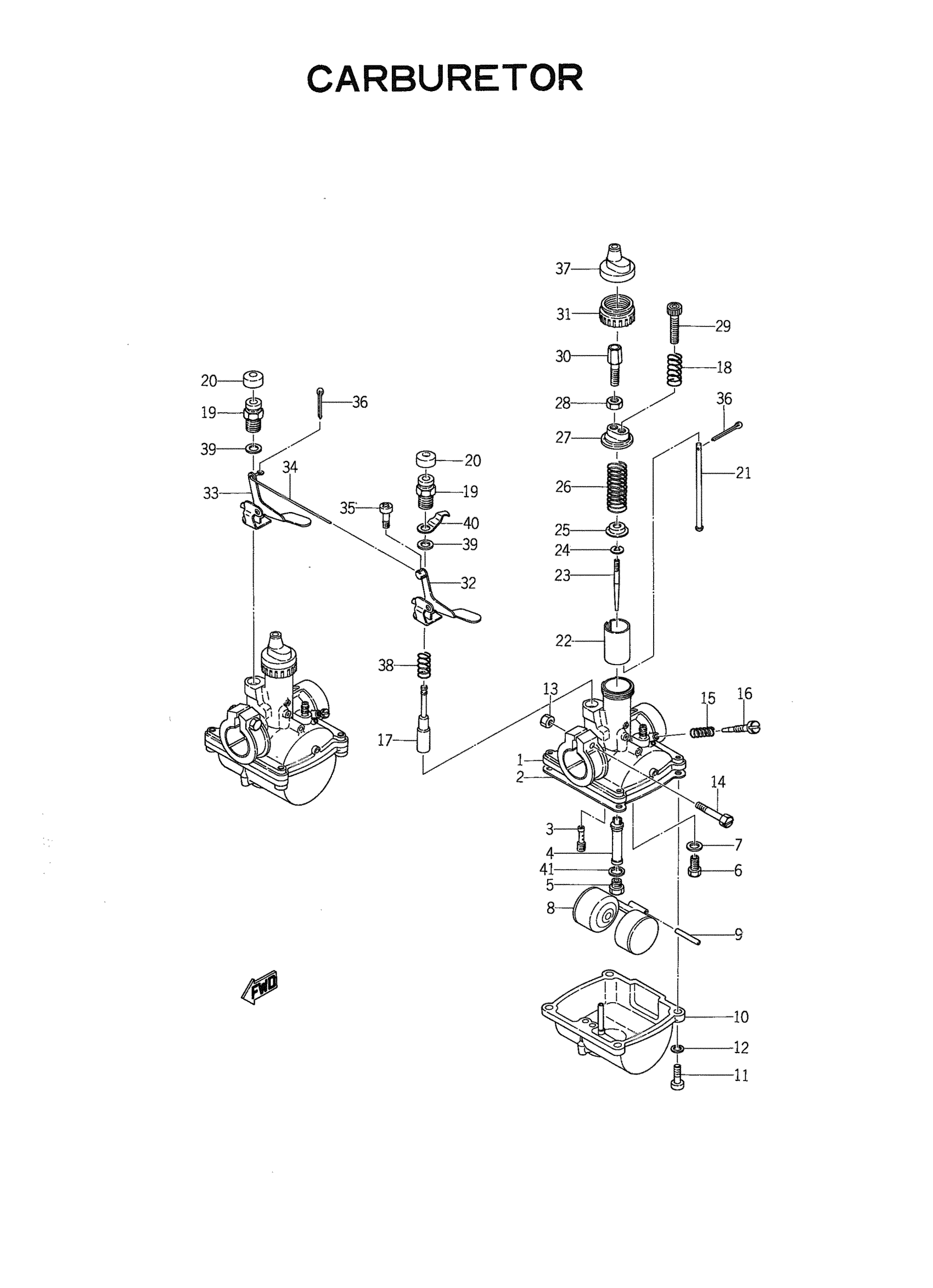

Yamaha YDS5E (YDS5E) 169 1967 CARBURETOR Diagram

#

Description

Price

1

CARBURETOR ASSEMBLY 1

170-14101-01-00

Unavailable

1

CARBURETOR ASSEMBLY 2

170-14102-01-00

Unavailable

2

. GASKET, FLOAT CHAMBER

156-14184-00-00

Unavailable

3

. JET, PILOT #25

127-14142-25-00

Unavailable

3

. JET, PILOT #30

127-14142-30-00

Unavailable

3

JET, PILOT (# 25)

193-14142-25-A0

$10.99

3

JET, PIL0T (# 30)

193-14142-30-A0

Unavailable

4

. NOZZLE, MAIN

170-14141-35-00

Unavailable

5

. JET, MAIN #80

137-14143-16-00

Unavailable

5

. JET, MAIN #90

137-14143-18-00

Unavailable

5

JET, MAIN #100

137-14143-20-00

Unavailable

5

JET, MAIN #110

137-14143-22-A0

Unavailable

5

. JET, MAIN #120

137-14143-24-00

Unavailable

5

JET, MAIN #130

137-14143-26-A0

$7.99

5

JET, MAIN #140

137-14143-28-A0

Unavailable

6

. NEEDLE VALVE ASSEMBLY

137-14190-20-00

Unavailable

7

WASHER, VALVE SEAT

127-14195-00-00

Unavailable

8

. FLOAT

156-14185-00-00

Unavailable

9

PIN, FLOAT

127-14186-00-00

Unavailable

10

BODY,FLOAT CHMBR 1

246-14181-08-00

Unavailable

11

SCREW,PAN HEAD

92503-04015-00

Unavailable

11

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

13

NUT, HOLDING

137-14164-00-00

Unavailable

14

SCREW, BODY FITTING

137-14125-00-00

Unavailable

15

. SPRING, AIR ADJUSTING

137-14134-00-00

Unavailable

16

SCREW, AIR ADJUSTING

137-14123-00-00

Unavailable

17

PLUNGER, STARTER

132-14171-00-00

Unavailable

18

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

19

CAP, PLUNGER

132-14174-00-00

Unavailable

20

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

21

BAR, THROTTLE

156-14114-00-00

Unavailable

22

VALVE, THROTTLE 1

156-14112-25-00

Unavailable

23

. NEEDLE

156-14116-03-00

Unavailable

24

CLIP

137-14137-00-00

Unavailable

25

SEAT, SPRING

156-14136-00-00

Unavailable

26

SPRING, THRTL VALVE

156-14131-01-00

Unavailable

27

TOP, MIXING CHAMBER

156-14158-00-00

Unavailable

28

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

29

SCREW, THRTL STOP

127-14121-00-00

Unavailable

30

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

31

CAP, MIXING CHAMBER

156-14168-00-00

Unavailable

32

LEVER, STARTER 1

802-14175-00-00

Unavailable

33

LEVER, STARTER 2

170-14176-00-00

Unavailable

34

ROD, STARTER LEVER

170-14177-00-00

Unavailable

35

SCREW, ROD

132-14486-00-00

Unavailable

36

. PIN, COTTER

91401-10015-00

Unavailable

37

CAP

156-14169-00-00

Unavailable

38

SPRING, PLUNGER

156-14135-00-00

Unavailable

39

WASHER, STARTER LVR

132-14179-00-00

Unavailable

40

PLATE, STARTER LEVER

170-14178-00-00

Unavailable

41

WASHER,MAIN JET

137-14153-00-00

Unavailable

42

GASKET, INSULATING

156-14156-01-00

Unavailable
