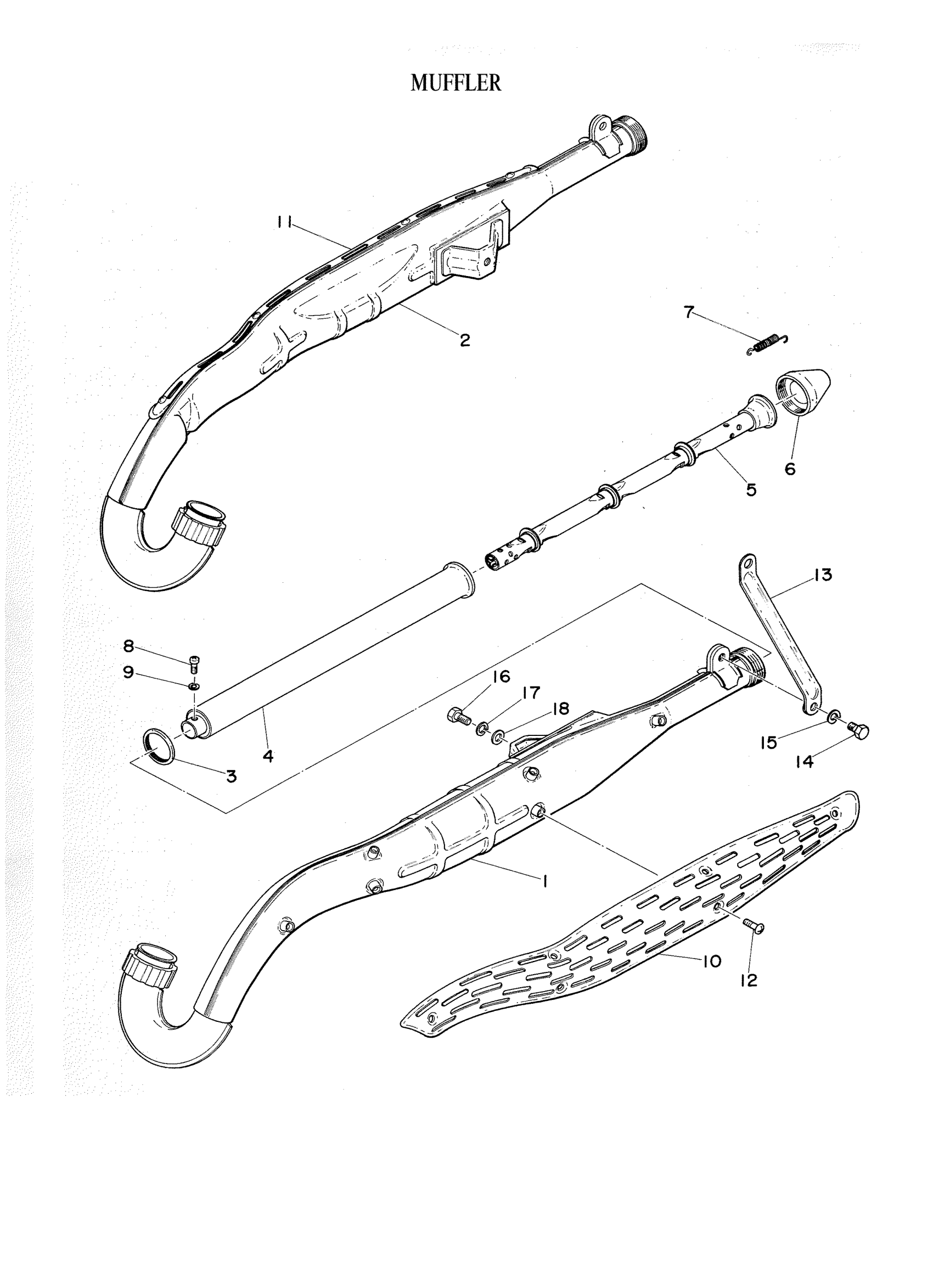

Yamaha YDS3C (YDS3C) 157 1965 MUFFLER Diagram

#

Description

Price

1

EXHAUST PIPE ASSY LH

157-14610-00-00

Unavailable

2

EXHAUST PIPE ASSY RH

157-14620-00-00

Unavailable

3

GASKET, MUFFLER

157-14714-00-00

Unavailable

4

PIPE, TAIL

157-14784-00-00

Unavailable

5

SILENCER

157-14753-00-00

Unavailable

6

NUT, TAIL

157-14783-01-00

Unavailable

7

SPRING, MUFFLER

157-14774-00-00

Unavailable

8

SCREW,HEXAGON

90153-06003-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

10

PROTECTOR, MUFFLER LH

157-14718-00-00

Unavailable

11

PROTECTER, MUFF 2

157-14728-00-00

Unavailable

12

SCREW,FLAT HEAD

98780-06010-00

Unavailable

13

STAY, MUFFLER

157-14791-00-00

Unavailable

14

BOLT, HEXAGON

97013-08016-00

$1.32

15

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

16

BOLT(JA9)

90101-08691-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable
