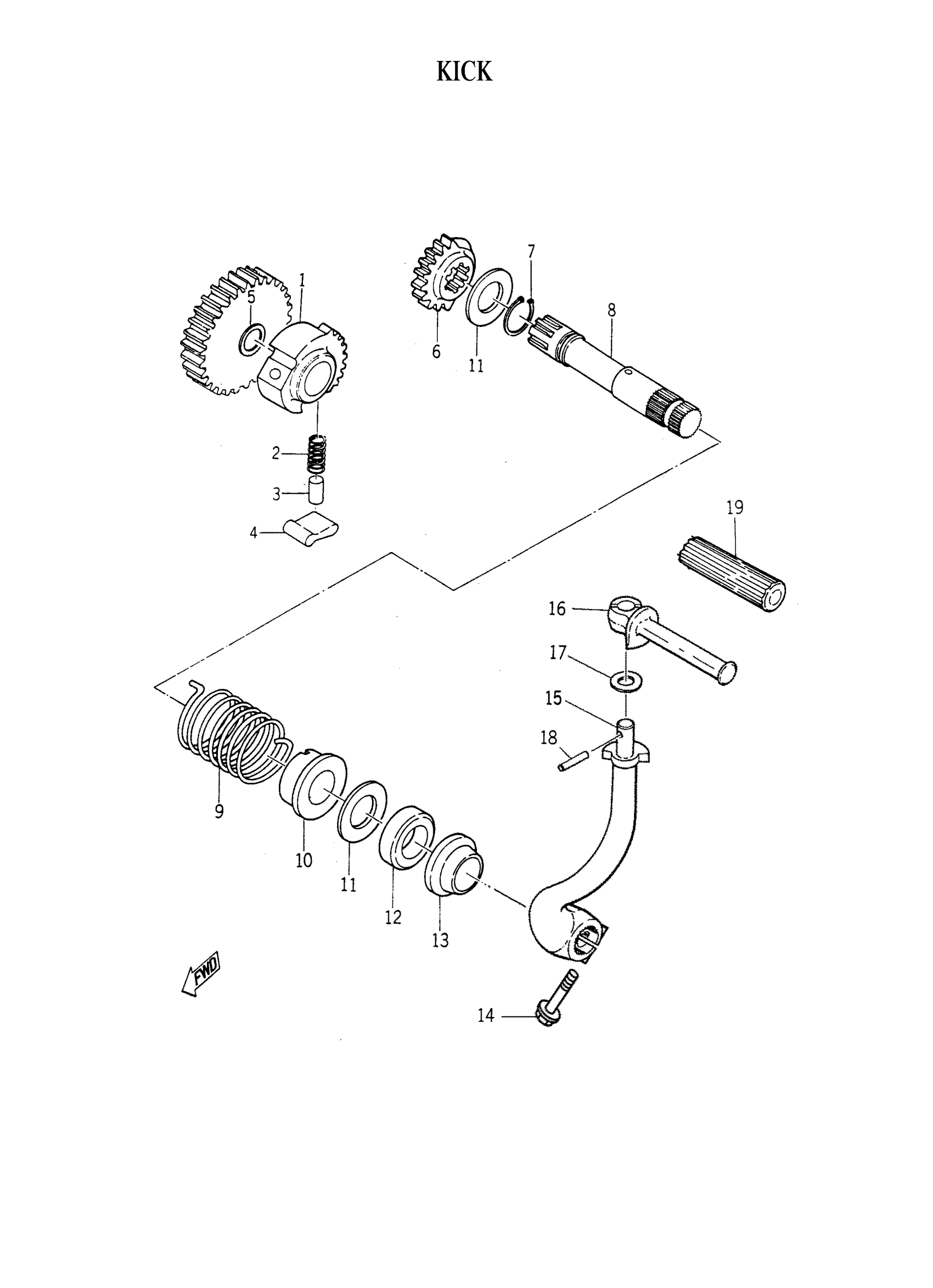

Yamaha YDS3C (YDS3C) 157 1965 KICK Diagram

#

Description

Price

1

GEAR, KICK PINION

152-15631-01-00

Unavailable

1

GEAR, KICK PINION

156-15631-00-00

Unavailable

2

SPRING,COMPRESSION

90501-05020-00

Unavailable

3

PIN,STRAIGHT

90250-05007-00

Unavailable

4

PAWL, KICK

152-15635-00-00

Unavailable

5

WASHER,PLATE

90201-20268-00

Unavailable

6

GEAR,KICK

152-15641-01-00

Unavailable

6

GEAR, KICK

156-15641-00-00

Unavailable

7

CIRCLIP, OUTER

93440-20002-00

Unavailable

8

AXLE, KICK

152-15661-00-00

Unavailable

9

SPRING,TORSION

90508-35069-00

Unavailable

10

GUIDE, SPRING

146-15664-00-00

Unavailable

11

WASHER, PLATE 1832514700

90201-20269-00

$7.49

12

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

13

COVER, KICK AXLE

146-15662-00-00

Unavailable

14

BOLT (682)

97013-08025-00

Unavailable

15

KICK CRANK ASY

172-15610-00-00

Unavailable

16

. LEVER, KICK

148-15612-00-00

Unavailable

17

WASHER,WAVE

90206-10014-00

Unavailable

18

. PIN, DOWEL

93604-18017-00

Unavailable

19

COVER, KICK LEVER

156-15618-01-00

Unavailable
