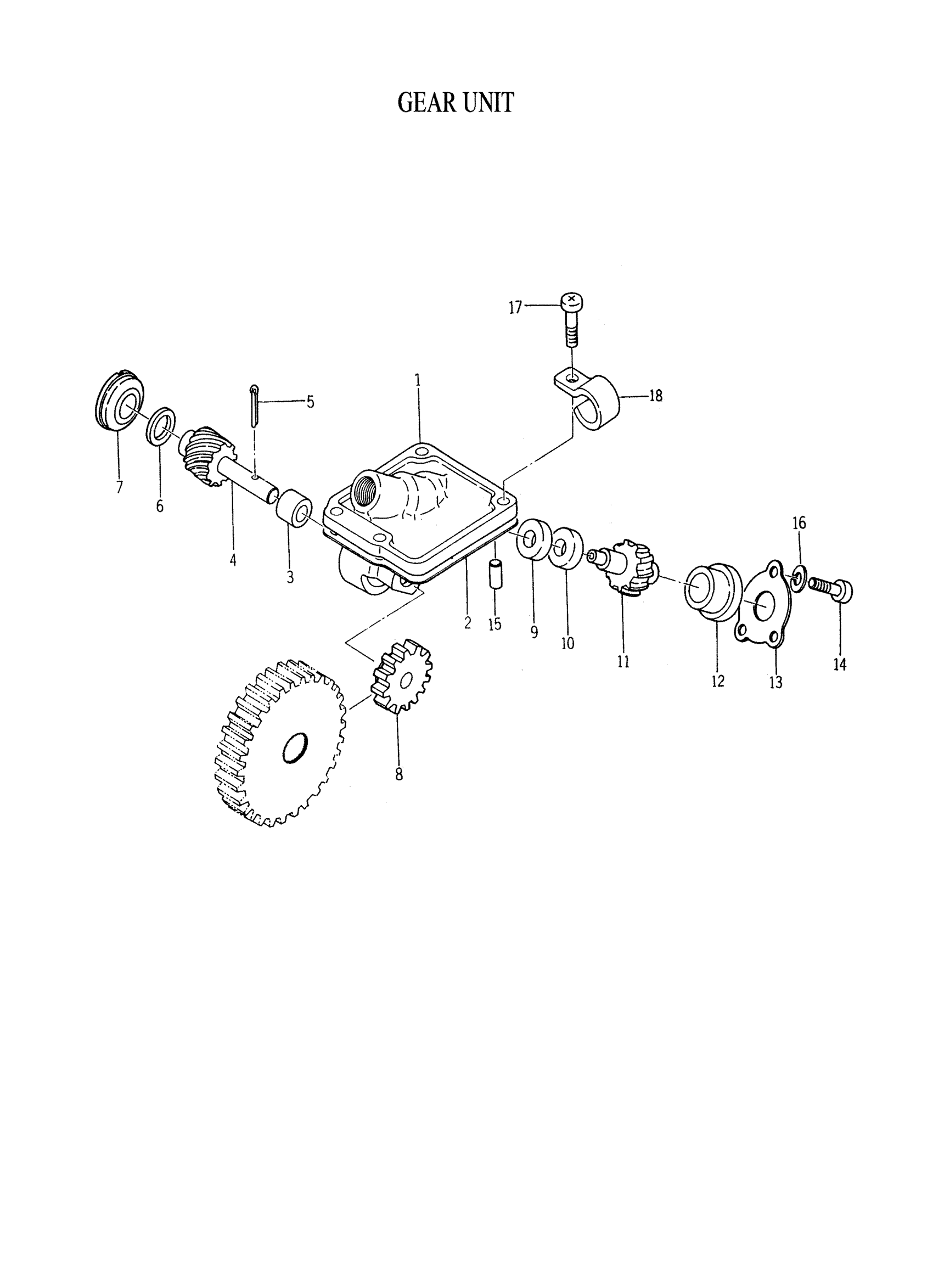

Yamaha YDS3C (YDS3C) 157 1965 GEAR UNIT Diagram

#

Description
Price

1

HOUSING,TACH GEAR

170-17811-00-00

Unavailable

2

GASKET

156-17818-00-00

Unavailable

3

BUSH,SOLID

90380-08006-00

Unavailable

4

GEAR, DRIVE

156-17831-00-00

Unavailable

5

PIN COTTER

91490-30025-00

$3.99

6

SHIM

150-17837-00-07

Unavailable

7

BUSH, DR GEAR OUTER

152-17833-00-00

Unavailable

8

GEAR, PRIMARY

156-17851-00-00

Unavailable

9

OIL SEAL,SDO-TYPE

93109-10023-00

Unavailable

10

BUSH,SOLID

90380-10008-00

Unavailable

11

GEAR, DRIVEN

156-17841-00-00

Unavailable

12

BUSH, DRVN GR OUTER

156-17843-00-00

Unavailable

13

COVER, HOUSING

156-17821-00-00

Unavailable

14

SCREW, PAN HEAD

92503-04008-00

Unavailable

15

PIN,DOWEL (137)

93604-14012-00

$1.81

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

CLAMP

156-82594-00-00

Unavailable
