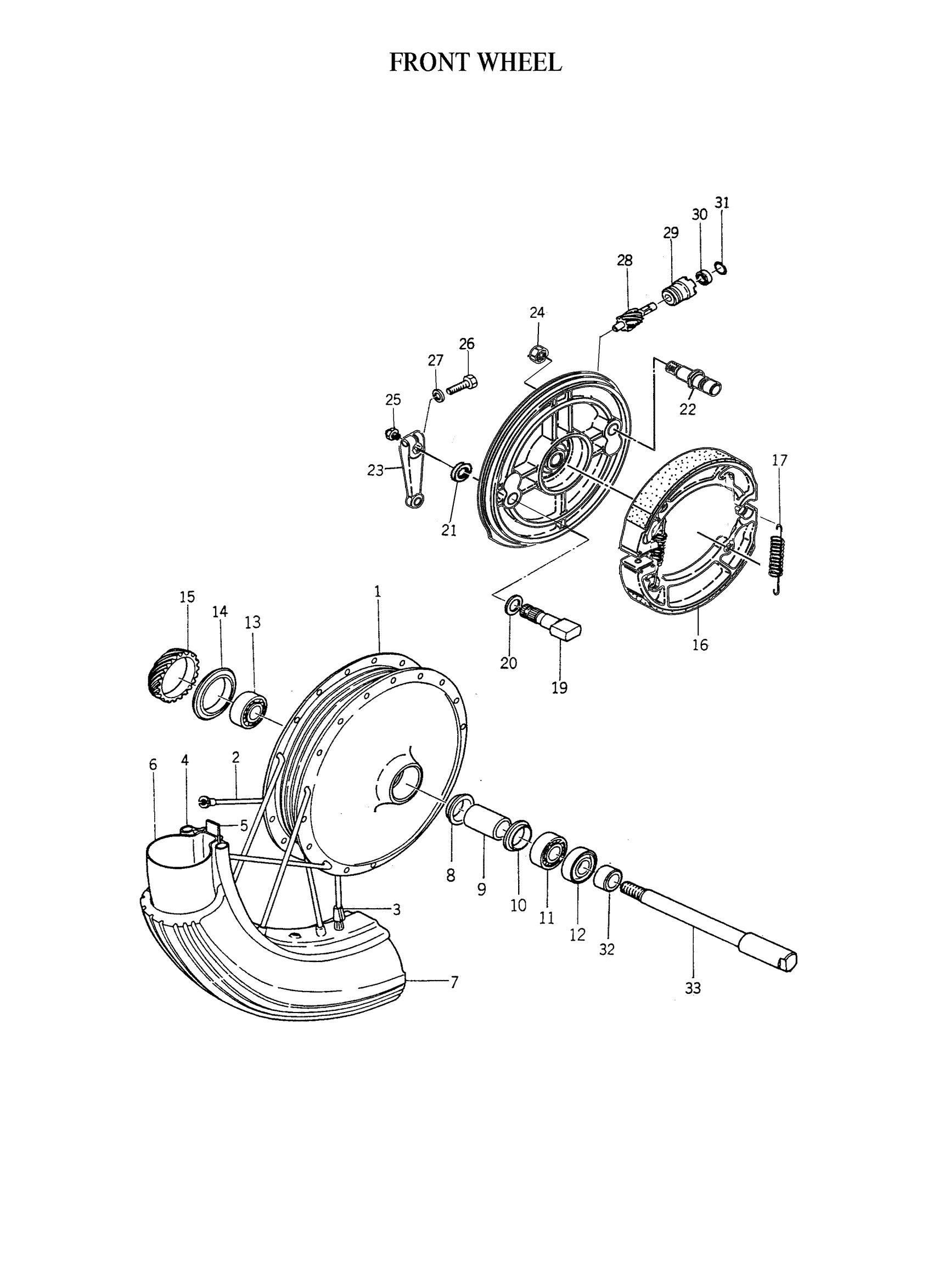

Yamaha YDS3C (YDS3C) 157 1965 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

152-25111-00-00

Unavailable

2

SPOKE SET, FRONT

152-25104-00-00

Unavailable

3

BALANCER, WHEEL

3HT-25398-00-00

$7.99

4

RIM 1.60X18

94416-18013-00

Unavailable

5

BAND, RIM (2J4)

94340-18086-00

$17.99

6

TUBE (5H5)

94227-18195-00

$35.99

7

300X18 DUNLOP K-70

94130-18038-00

Unavailable

8

FLANGE, SPACER

146-25315-00-00

$7.99

9

SPACER, BEARING

152-25117-00-00

Unavailable

10

FLANGE, SPACER

146-25315-00-00

$7.99

11

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

12

OIL SEAL, SDD-TYPE

93105-24006-00

Unavailable

13

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

14

OIL SEAL, OS-TYPE

93107-50003-00

Unavailable

15

GEAR, DRIVE

152-25135-00-00

Unavailable

16

BRAKE SHOE COMP.

156-25130-00-00

Unavailable

17

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

18

PLATE, BRAKE SHOE

157-25121-00-00

Unavailable

19

CAMSHAFT

168-25151-00-00

Unavailable

20

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

21

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

22

PIN, PIVOT

157-25126-00-00

Unavailable

23

LEVER,CAMSHAFT 1

168-25155-00-00

Unavailable

24

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

25

NIPPLE, GREASE

93700-06M03-00

Unavailable

26

BOLT, HEXAGON

97017-06025-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

GEAR, METER

152-25138-00-00

Unavailable

29

BUSHING

109-25136-00-00

Unavailable

30

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

31

O-RING (26H)

93210-14579-00

Unavailable

32

COLLAR

90387-17136-00

Unavailable

33

AXLE, WHEEL

152-25181-00-00

Unavailable
