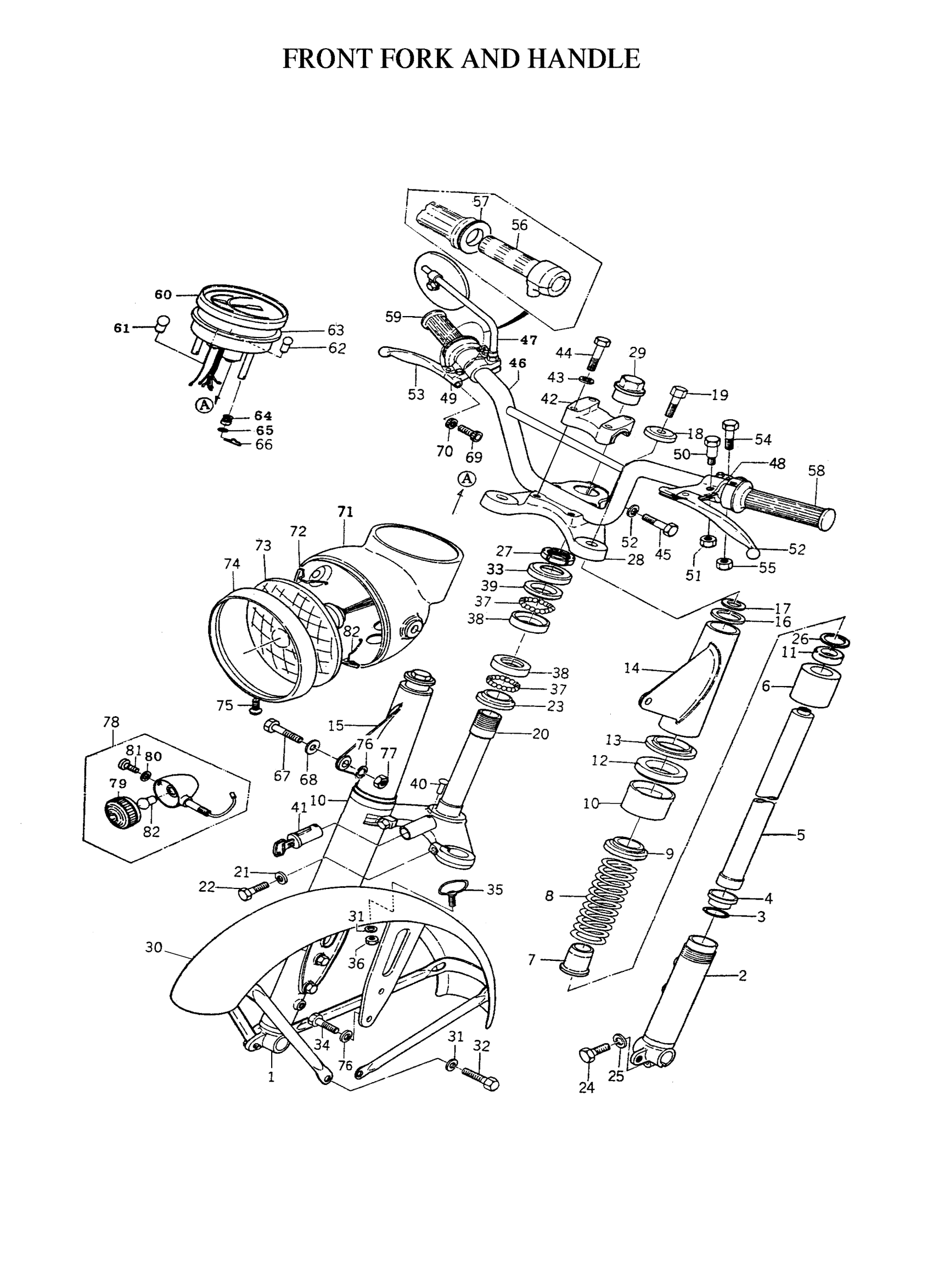

Yamaha YDS3C (YDS3C) 157 1965 FRONT FORK AND HANDLE Diagram

#

Description
Price

1

TUBE, OUTER (RH)

156-23136-00-00

Unavailable

2

TUBE, OUTER (LH)

156-23126-00-00

Unavailable

3

. O-RING

156-23147-00-00

Unavailable

4

METAL, SLIDE 1

156-23125-00-00

Unavailable

5

TUBE, INNER 1

156-23124-01-00

Unavailable

6

NUT, OUTER TUBE

157-23127-00-00

Unavailable

7

SEAT, SPRING LOWER

156-23143-00-00

Unavailable

8

SPRING,FRONT FORK

156-23141-00-00

Unavailable

9

SEAT, SPRING UPPER

157-23142-00-00

Unavailable

10

COVER, OUTER

157-23122-00-00

Unavailable

11

OIL SEAL

156-23145-00-OO

Unavailable

12

PACKING

156-23163-00-00

Unavailable

13

GUIDE, COVER UNDER

156-23116-00-00

Unavailable

14

COVER,UPPER 1

156-23121-00-81

Unavailable

15

COVER,UPPER 2

156-23131-00-81

Unavailable

16

GUIDE, COVER UPPER

156-23115-00-00

Unavailable

17

GASKET

156-23114-00-00

Unavailable

18

WASHER, CAP

156-23112-00-00

Unavailable

19

BOLT, CAP

156-23111-01-00

Unavailable

20

UNDER BRACKET

157-23340-00-33

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

22

BOLT 1

122-23346-02-00

$6.99

23

RACE, BALL 1

B6E-23411-00-00

$8.49

24

BOLT, HEXAGON

97013-08030-00

$2.49

25

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

26

WASHER, OIL SEAL

156-23146-00-00

Unavailable

27

NUT, FITTING 2

156-23454-00-00

Unavailable

28

CROWN, HANDLE

156-23435-01-00

Unavailable

29

NUT,SPEC'L SHAPE

90179-12110-00

Unavailable

30

FENDER, FRONT

156-21510-01-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

BOLT (661)

97013-06012-00

$5.60

33

COVER, BALL RACE 1

156-23415-00-00

Unavailable

34

BOLT(62E)

97013-08012-00

$3.28

35

HOLDER, CABLE

152-21518-00-00

Unavailable

36

NUT, HEXAGON

95380-06600-00

Unavailable

37

BALL

93501-04011-00

$8.49

38

RACE, BALL 2

B6E-23412-00-00

$13.49

39

RACE, BALL 1

B6E-23411-00-00

$8.49

40

RIVET

122-23483-00-00

Unavailable

41

STEERING LOCK ASSEMBLY

156-23480-00-00

Unavailable

42

HOLDER, HANDLE UPR

156-23441-00-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

44

BOLT

97013-08045-00

$9.49

45

BOLT, HEXAGON

97013-08050-00

$8.49

46

HANDLEBAR

157-26111-00-00

Unavailable

47

BACK MIRROR ASSY

162-26290-00-00

Unavailable

48

LEVER HOLDER ASY 1

240-82810-00-00

Unavailable

49

LEVER HOLDER ASY 2

156-82820-10-94

Unavailable

50

BOLT

90109-06333-00

Unavailable

51

NUT(650)

95380-06700-00

$8.49

52

LEVER L

150-83912-00-38

Unavailable

53

LEVER R

218-83922-30-38

Unavailable

54

BOLT, HEXAGON

97017-06025-00

$4.24

55

NUT, HEXAGON

95380-06600-00

Unavailable

56

TUBE, GUIDE

1V1-26243-00-00

$15.49

57

RING, LEAF

150-26249-00-00

Unavailable

58

GRIP (LH)

156-26241-00-00

Unavailable

59

GRIP (RH)

156-26242-00-00

Unavailable

60

SPEEDOMETER ASSY

156-83510-60-00

Unavailable

61

BULB,(6V3W)

122-83516-10-00

Unavailable

62

BULB,(6V3W)

122-83516-10-00

Unavailable

63

DAMPER

152-83513-00-00

Unavailable

64

DAMPER

156-83523-00=00

Unavailable

65

WASHER,SPEC'L SHAP

90209-05025-00

Unavailable

66

CLIP (156-83525-00)

90468-10050-00

$3.05

67

BOLT (682)

97013-08025-00

$8.49

68

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

69

BOLT

90123-08002-00

$10.49

70

NUT

90179-08030-00

$5.49

71

BODY, HEADLAMP

156-84111-01-00

Unavailable

72

SPRING, REFLECTOR SET

148-84324-00-00

$6.99

73

LANS ASSY

152-84120-60-00

Unavailable

74

RIM,HEADLIGHT

168-84315-00-00

Unavailable

75

SCREW, RIM FITTING

150-84125-00-00

Unavailable

76

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

77

NUT(6L2)

95333-08600-00

$2.49

78

FRT FLSHR LITE ASY

152-83310-10-00

Unavailable

79

. LENS, FLASHER

136-83312-20-00

Unavailable

80

WASHER, SPRING

92990-03100-00

$8.49

81

. SCREW

92503-03006-00

Unavailable

82

. BULB 6V 10W

152-83311-10-00

Unavailable
