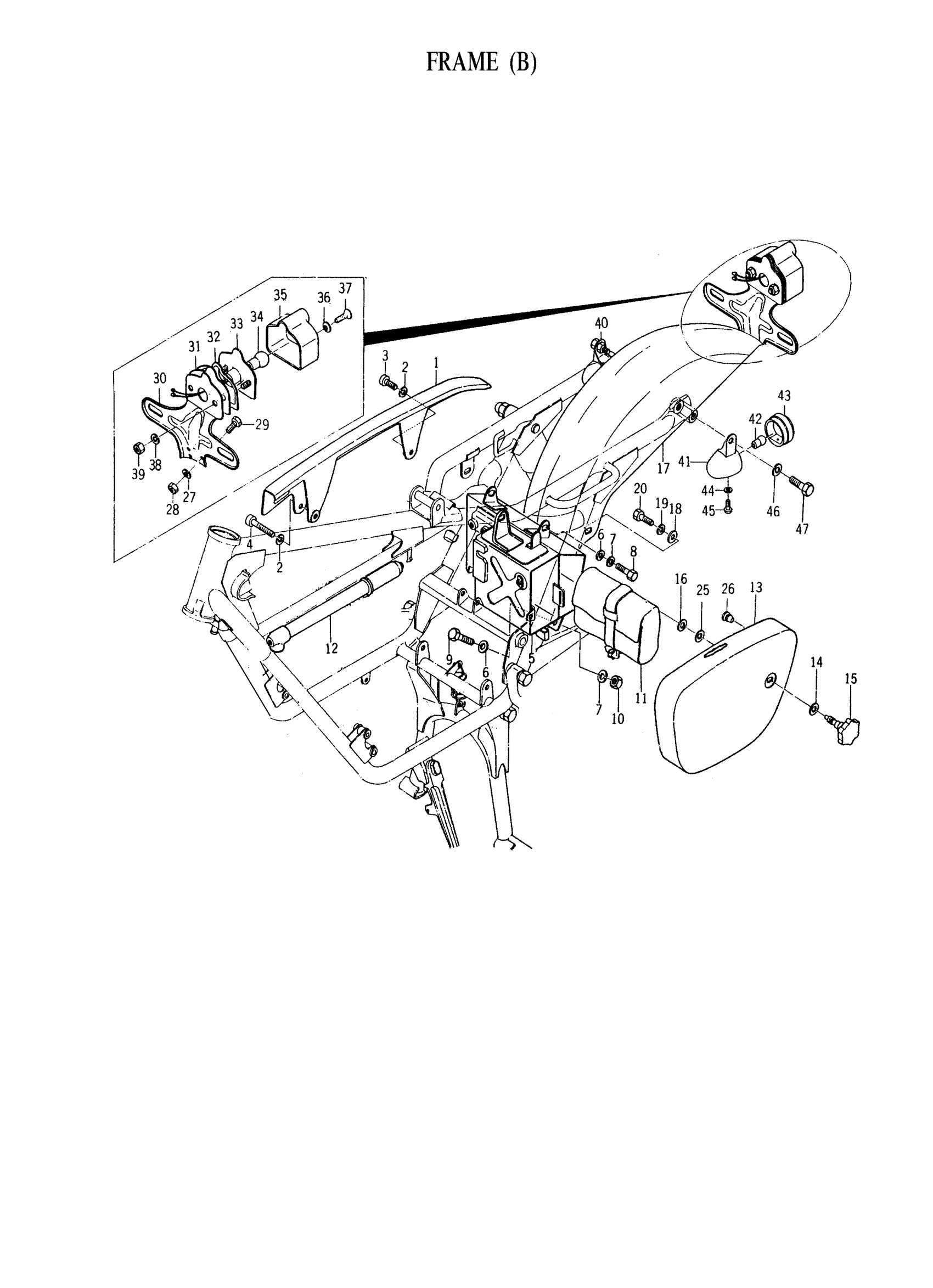

Yamaha YDS3C (YDS3C) 157 1965 FRAME B Diagram
#
1
CASE, CHAIN
156-22311-01-00
Unavailable
2
WASHER, SPRING
92995-06100-00
Unavailable
3
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
4
SCREW PAN HEAD
98580-06545-00
$5.60
5
BOX COMPLETE
156-21170-01-00
Unavailable
6
WASHER, PLAIN
92990-08200-00
Unavailable
7
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
8
BOLT(JA9)
90101-08691-00
$4.29
9
BOLT, HEXAGON
97013-08016-00
$1.01
10
NUT(6L2)
95333-08600-00
$2.49
11
TOOL KIT
171-28100-01-00
Unavailable
12
PUMP,AIR
150-28181-00-00
Unavailable
13
COVER,SIDE 1
156-21711-01-81
Unavailable
14
WASHER, SPECIAL 1
136-21715-00-00
Unavailable
15
KNOB, SIDE COVER 1
156-21714-00-00
Unavailable
16
NUT 136217130000
90179-06034-00
Unavailable
17
REAR FENDER COMPLETE
157-21610-00-00
Unavailable
18
WASHER, PLAIN
92990-08200-00
Unavailable
19
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
20
BOLT, HEXAGON
97013-08016-00
$1.01
25
CLAMP, DAMPER
156-21729-00-00
Unavailable
26
DAMPER, SIDE COVER
141-21717-00-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
NUT, HEXAGON
95380-06600-00
Unavailable
29
BOLT (661)
97013-06012-00
Unavailable
30
BRACKET, LICENSE
157-84551-60-00
Unavailable
31
. COVER, TAILLIGHT
124-84516-60-00
Unavailable
32
SEAT, BASE
152-84512-60-00
Unavailable
33
. BASE, TAIL LAMP
152-84511-60-00
Unavailable
34
BULB,TAIL LAMP(6V17/5.3W)
122-84514-30-00
Unavailable
35
. LENS, TAILLIGHT
124-84521-60-00
Unavailable
36
. WASHER
124-84522-60-00
Unavailable
37
SCREW, PAN HEAD
92503-04015099
Unavailable
38
WASHER, SPRING
92995-06100-00
Unavailable
39
NUT (J17)
95380-06800-00
Unavailable
40
REAR FLASHER LAMP ASS'Y (RH)
156-83340-10-00
Unavailable
41
REAR FLASHER LAMP ASS'Y (LH)
156-83330-10-00
Unavailable
42
. BULB 6V 10W
152-83311-10-00
Unavailable
43
. LENS, FLASHER
136-83312-20-00
Unavailable
44
WASHER, SPRING
92990-03100-00
Unavailable
45
. SCREW
92503-03006-00
Unavailable
46
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
47
BOLT, HEXAGON
97013-08016-00
$1.01
