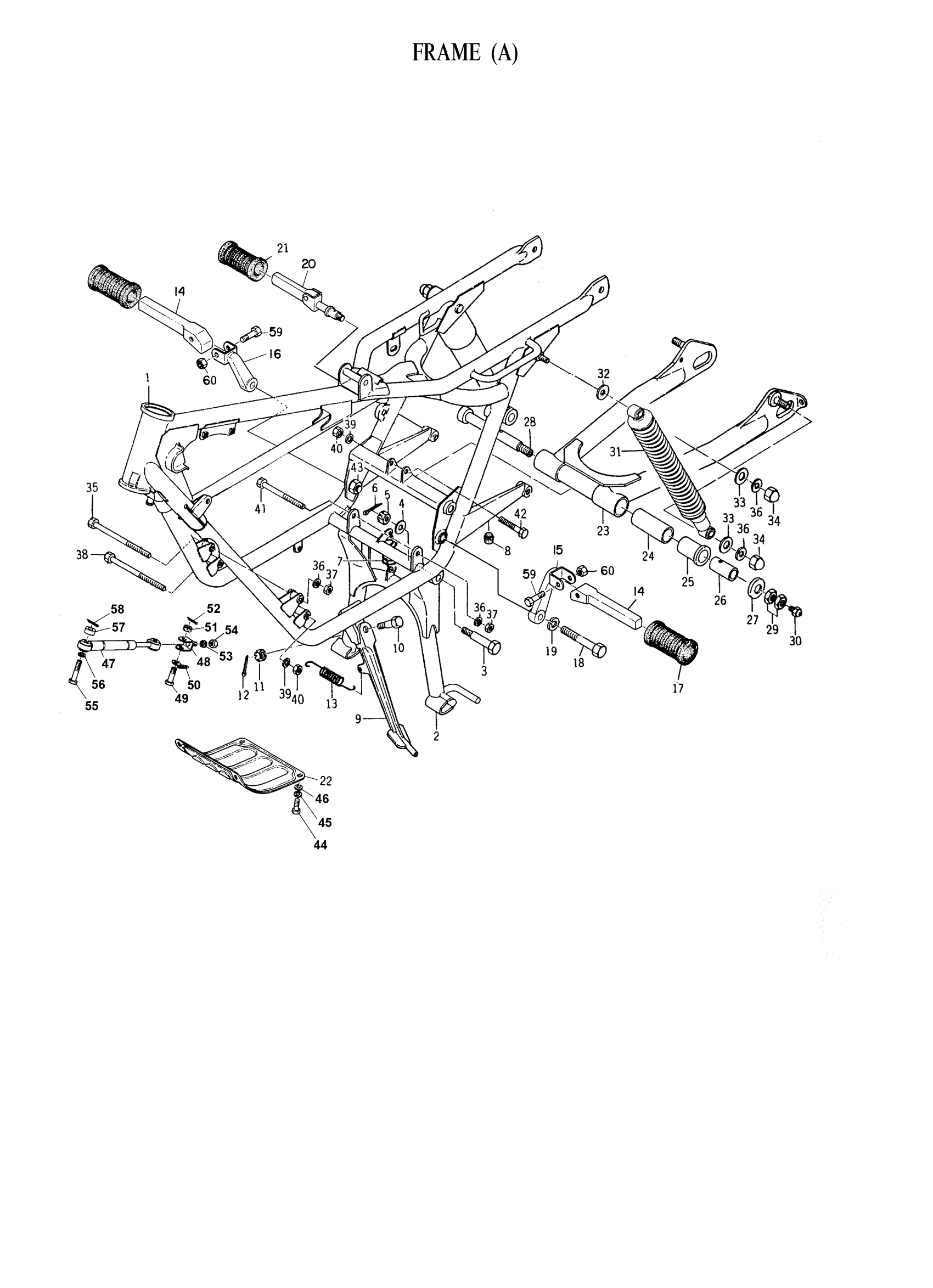

Yamaha YDS3C (YDS3C) 157 1965 FRAME A Diagram
#
1
FRAME
157-21110-01-33
Unavailable
2
STAND, MAIN
157-27111-00-00
Unavailable
3
BOLT
90109-10072-00
Unavailable
4
958-69527-00 WASHER, PLAIN
92990-10200-00
$3.72
5
NUT, SLOTTED
2801-10500-00
Unavailable
6
PIN, COTTER
91490-20025-00
$1.99
7
SPRING,TENSION
90506-45062-00
Unavailable
8
STOPPER, MAIN STAND
157-27114-00-00
$9.99
9
STAND, SIDE
157-27311-00-00
Unavailable
10
BOLT
90109-08185-00
Unavailable
11
BOLT
90109-08185-00
Unavailable
12
PIN, COTTER
91490-20025-00
$1.99
13
SPRING TENSION 150273160000
90506-25047-00
$9.49
14
FOOTREST 1
157-27411-00-00
Unavailable
15
BRACKET FOOTREST LH
157-27412-00-00
Unavailable
16
BRACKET,FOOTREST 2
157-27422-00-33
Unavailable
17
COVER, FOOT REST
156-27413-00-00
Unavailable
18
BOLT,HEXAGON
97321-12040-00
Unavailable
19
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
20
FOOT REST, REAR
157-27431-00-00
Unavailable
21
COVER, RR FOOTREST
157-27433-00-00
Unavailable
22
PROTECTOR,ENGINE
157-21471-00-33
Unavailable
23
REAR ARM COMPLETE
156-22110-01-00
Unavailable
24
COLLAR
90387-16128-00
Unavailable
25
BUSH 1482212300
90386-22018-00
Unavailable
26
COLLAR
90387-18451-00
Unavailable
27
COVER,THRUST 1
1A0-22128-00-00
Unavailable
28
SHAFT, PIVOT
156-22141-00-00
Unavailable
29
NUT,HEXAGON
90170-14147-00
Unavailable
30
NIPPLE, GREASE
93700-06M03-00
Unavailable
31
REAR CUSHION ASSY
156-22210-00-00
Unavailable
32
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
33
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
34
NUT, CROWN (650)
95380-10800-00
Unavailable
35
BOLT
90101-10085-00
Unavailable
36
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
37
NUT, SELF LOCKING
90185-10031-00
Unavailable
38
BOLT,WASHER BASED
90105-08033-00
Unavailable
39
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
40
NUT(6L2)
95333-08600-00
Unavailable
41
BOLT, WASHER BASED
90105-10227-00
Unavailable
42
BOLT, HEXAGON
97013-08050-00
Unavailable
43
NUT, HEXAGON SMALL
95317-12700-00
Unavailable
44
BOLT (661)
97013-06012-00
Unavailable
45
WASHER, SPRING
92995-06100-00
Unavailable
46
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
47
HDLBR SMY DMPR ASY
240-23490-00-00
Unavailable
48
JOINT
59W-23491-00-00
Unavailable
49
BOLT, DAMPER FITTING
157-23492-00-00
Unavailable
50
HOLDER, WIRE
157-2116-00-00
Unavailable
51
NUT, SLOTTED
95307-08900-00
Unavailable
52
PIN, COTTER
91490-20025-00
$1.99
53
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
54
NUT(6L2)
95333-08600-00
Unavailable
55
BOLT, DAMPER FITTING
157-23493-00-00
Unavailable
56
WASHER, PLAIN
92990-08200-00
Unavailable
57
PIECE, DISTANCE
157-23494-00-00
Unavailable
58
PIN, COTTER (648)
91490-20015-00
Unavailable
59
BOLT (157-27416-00)
90109-08376-00
Unavailable
60
. NUT
95380-08700-00
Unavailable
