CRANKCASE AND CYLINDER

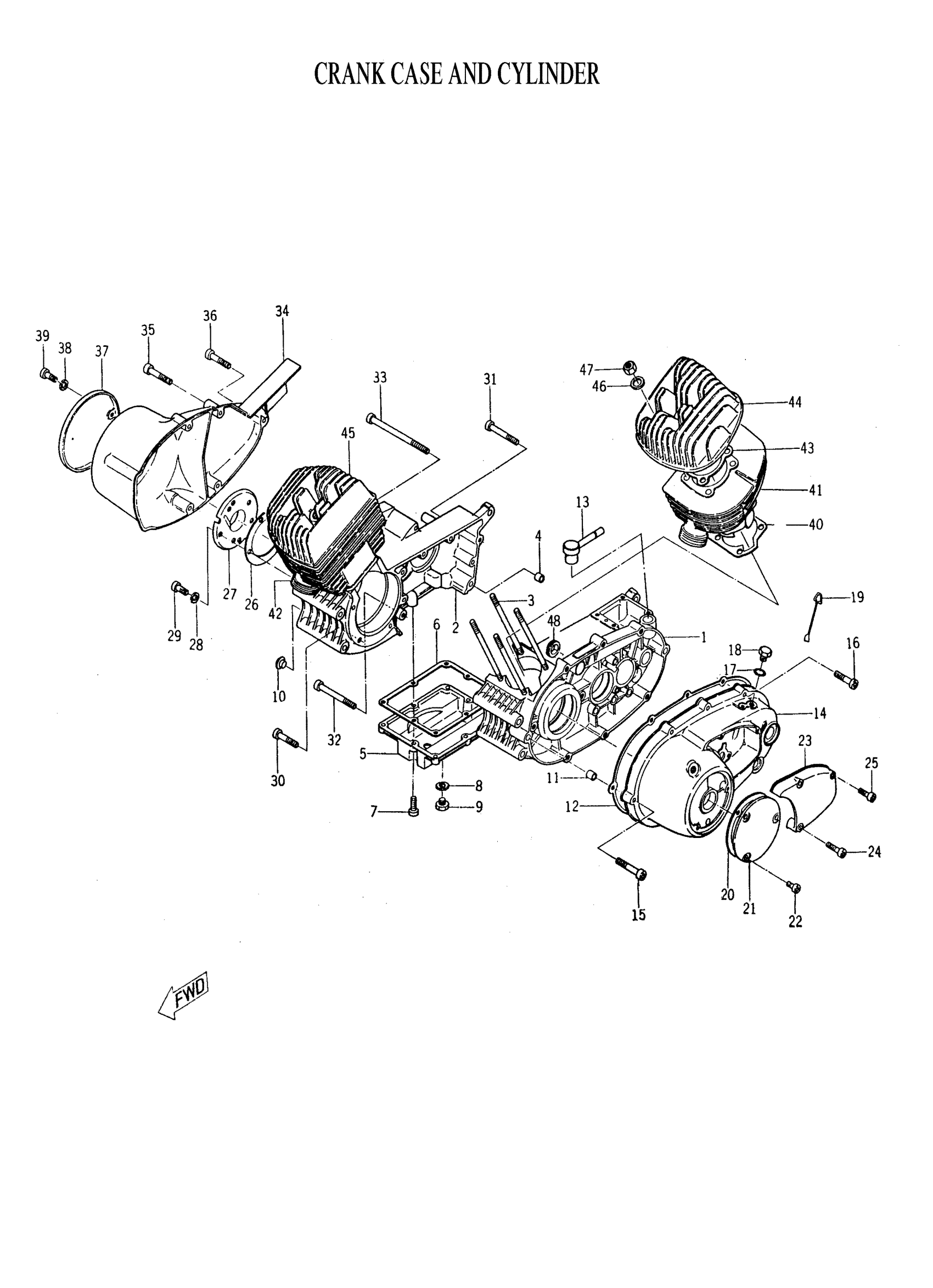

Yamaha YDS3C (YDS3C) 157 1965 CRANKCASE AND CYLINDER Diagram
#
1
CRANKCASE ASY 1
156-15110-01-00
Unavailable
2
CASE, CRANK (RH)
156-15121-01-00
Unavailable
3
BOLT,STUD
90116-08076-00
Unavailable
4
PIN, DOWEL
91810-08025-00
Unavailable
5
COVER,SHIFTER 1
204-15419-00-00
Unavailable
6
GASKET, SHFTR COVER
150-15459-00-00
Unavailable
7
SCREW PAN HEAD
98580-06020-00
$8.49
8
WASHER, PROTECTOR
4F4-14766-00-00
$6.99
9
PLUG,STRAIGHT SCRW
90340-14033-00
Unavailable
10
GROMMET
90480-12011-00
Unavailable
11
PIN, DOWEL(3VD)
99530-10114-00
$2.55
12
GASKET, CRANKCASR COVER
156-15451-00-00
Unavailable
13
PLUG, OIL
157-15363-00-00
Unavailable
14
COVER,CRANKCASE L
157-15411-01-00
Unavailable
15
SCREW PAN HEAD
98580-06040-00
$8.49
16
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
17
O-RING (137)
93210-13016-00
Unavailable
18
PLUG,OIL
137-15363-00-00
Unavailable
19
GAUGE, LEVEL
156-15361-00-00
Unavailable
20
GASKET 1
156-15455-00-00
Unavailable
21
COVER, CRANKCASE COVER (LH)
156-15415-00-00
Unavailable
22
SCREW, PAN
98517-06012-00
Unavailable
23
COVER, OIL PUMP
156-15416-00-00
Unavailable
24
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
25
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
26
GASKET, OIL SEAL HOUSING
156-15369-00-00
Unavailable
27
HOUSING,OIL SEAL
156-15359-01-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
SCREW,PAN HEAD
92503-05012-00
Unavailable
30
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
31
SCREW, PANHED (GC2)
98580-06555-00
Unavailable
32
SCREW, BIND (JH1)
98580-06560-00
Unavailable
33
SCREW, PAN HEAD
92501-06105-00
Unavailable
34
COVER, CRANKCASE (RH)
156-15421-00-00
Unavailable
35
SCREW PAN HEAD
98580-06545-00
Unavailable
36
SCREW PAN HEAD
98580-06040-00
$8.49
37
COVER,GENERATOR
372-15415-00-00
Unavailable
38
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
39
SCREW,PAN HEAD
92503-04015-00
Unavailable
40
GASKET,CYLINDER
171-11351-00-00
Unavailable
41
CYLINDER (LH)
156-11311-01-00
Unavailable
42
CYLINDER (RH)
156-11321-01-00
Unavailable
43
GASKET, CYLINDER HEAD 1
156-11181-01-00
Unavailable
44
HEAD,CYLINDER 1
204-11111-00-00
Unavailable
45
HEAD,CYLINDER 2
204-11121-00-00
Unavailable
46
WASHER, PLAIN
92990-08200-00
Unavailable
47
NUT(6L2)
95333-08600-00
Unavailable
48
GROMMET, OIL PIPE
156-15356-00-00
Unavailable
49
GASKET
90430-08076-00
Unavailable
50
PLUG,OIL LEVEL
146-15362-00-00
Unavailable
51
GUIDE, INLET
157-15377-00-00
Unavailable
52
HOLDER, GUIDE
157-15376-00-00
Unavailable
