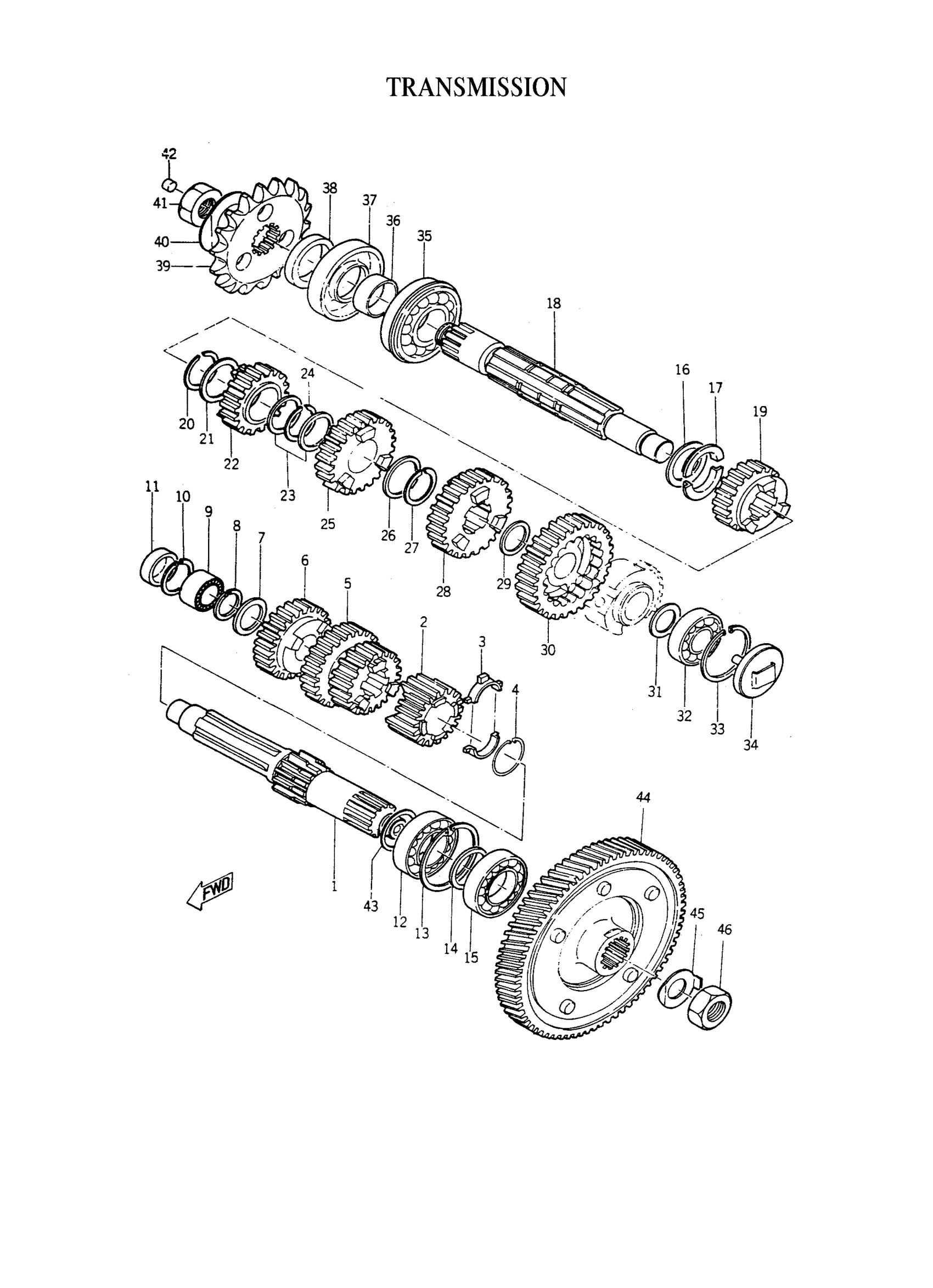

Yamaha YDS3 (YDS3_1966) 156 1964 TRANSMISSION Diagram

#

Description

Price

1

AXLE, MAIN

156-17411-00-00

Unavailable

1

AXLE, MAIN

159-17411-00-00

Unavailable

2

GEAR,2ND PINION

246-17121-00-00

Unavailable

3

PLATE, SETTING

156-17115-00-00

Unavailable

4

CLIP

90468-14036-00

Unavailable

5

GEAR, 3RD AND 5TH PINION

152-17131-00-00

Unavailable

5

GEAR, 3RD PINION

159-17131-01-00

Unavailable

5

GEAR, 3RD PINION

159-17131-01-00

Unavailable

6

GEAR, 4TH PINION

156-17141-00-00

Unavailable

6

GEAR,4TH PINION

246-17141-00-00

Unavailable

7

WASHER, PLATE (30X)

90201-177G4-00

$9.49

8

CIRCLIP(1EY)

99009-17400-00

$4.73

9

BEARING, CYLINDER.#11

93311-21704-00

Unavailable

10

CIRCLIP

99009-25500-00

$7.49

11

PLUG, BLIND

156-17481-00-00

Unavailable

12

BEARING(1FF)

93306-00519-00

Unavailable

13

CIRCLIP, INNER

93450-47011-00

Unavailable

14

SPACER

90560-25044-00

Unavailable

15

BRG,R-B 6005 47MM 85G KY

93306-00507-00

Unavailable

16

SHIM 2

156-17428-00-00

Unavailable

17

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

18

AXLE, DRIVE

156-17421-00-00

Unavailable

19

GEAR, 4TH WHEEL

156-17241-00-00

Unavailable

19

GEAR, 4TH WHEEL

159-17241-00-00

Unavailable

20

CIRCLIP (4L0)

93440-25084-00

Unavailable

21

WASHER, GEAR HOLD 1

152-17218-00-00

Unavailable

22

GEAR 5TH WHEEL

152-17251-00-00

Unavailable

22

GEAR,5TH WHEEL

246-17251-00-00

Unavailable

23

WASHER PLATE 152172260000

90201-25490-00

Unavailable

24

CIRCLIP(JF7)

99009-25400-00

Unavailable

25

GEAR, 3RD WHEEL

152-17231-00-00

Unavailable

25

GEAR,3RD WHEEL

246-17231-00-00

Unavailable

25

GEAR,3RD WHEEL

246-17231-00-00

Unavailable

26

WASHER, GEAR HOLD 1

152-17218-00-00

Unavailable

27

CIRCLIP(JF7)

99009-25400-00

Unavailable

28

GEAR,2ND WHEEL

145-17221-00-00

Unavailable

28

GEAR, 2ND WHEEL

152-17221-00-00

Unavailable

28

GEAR,2ND WHEEL

145-17221-00-00

Unavailable

29

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

30

GEAR, 1ST WHEEL

152-17211-00-00

Unavailable

30

GEAR,1ST WHEEL

246-17211-00-00

Unavailable

31

SHIM 1

156-17427-00-06

Unavailable

31

SHIM 1

156-17427-00-07

Unavailable

31

SHIM 1

156-17427-00-08

Unavailable

32

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

33

CIR-CLIP (70R)

93420-40064-00

Unavailable

34

BUCKET, OIL 1

156-17488-00-00

Unavailable

35

BEARING

93306-30502-00

Unavailable

36

COLLAR(1AE)

90387-253M9-00

Unavailable

37

OIL SEAL, SD-TYPE

93102-30025-00

Unavailable

38

SEAL, FELT

156-17465-00-00

Unavailable

39

SPROCKET, DRIVE

156-17461-30-00

Unavailable

39

SPROCKET, DRIVE

156-17461-40-00

Unavailable

39

SPROCKET DRIVE

9384E-15155-00

Unavailable

39

SPROCKET, DRIVE

156-17461-60-00

Unavailable

39

SPROCKET, DRIVE

156-17461-70-00

Unavailable

39

SPROCKET, DRIVE

156-17461-80-00

Unavailable

40

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

41

NUT 152174630000

90179-18020-00

Unavailable

42

PLUG,TAPER

90336-09002-00

Unavailable

43

SHIM 1

156-17417-00-01

Unavailable

44

PRIMARY DRIVEN GEAR COMP.

156-16150-00-00

Unavailable

45

WASHER,LOCK

90215-19089-00

Unavailable

46

NUT

90170-18089-00

Unavailable
