REAR WHEEL

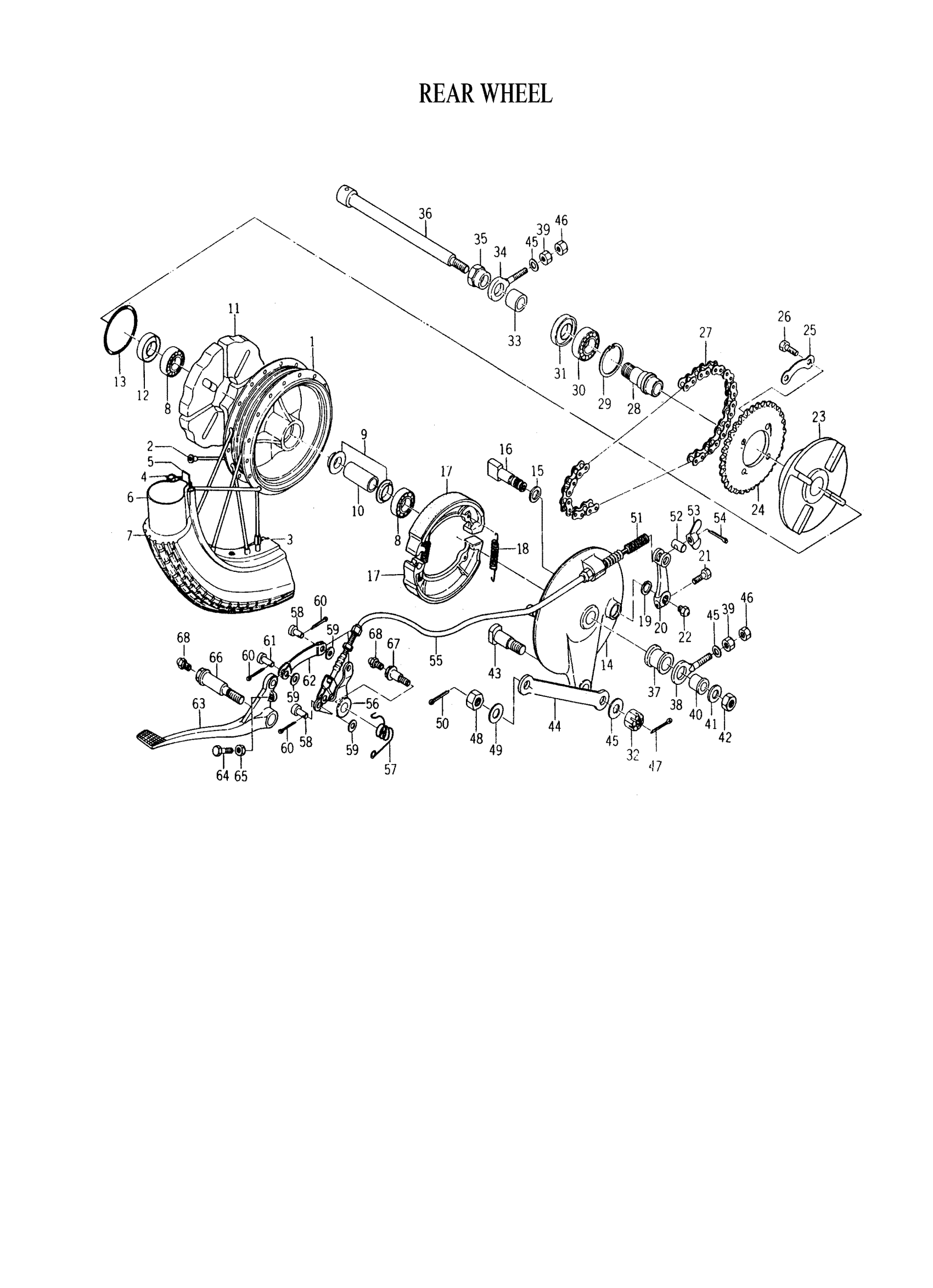

Yamaha YDS3 (YDS3_1966) 156 1964 REAR WHEEL Diagram
#
1
HUB,REAR
278-25311-00-00
Unavailable
2
SPOKE SET, REAR
152-25304-00-00
Unavailable
3
BALANCER, WHEEL
3HT-25398-00-00
$7.99
4
RIM 1.85X18
94418-18026-00
Unavailable
5
BAND, RIM
94325-18016-00
Unavailable
6
TUBE (5H5)
94227-18195-00
$35.99
6
TUBE (5H5)
94227-18195-00
$35.99
7
325-18 YOKO RAYON
94132-18089-00
Unavailable
7
325-18 YOKO RAYON
94132-18089-00
Unavailable
8
BEARING(4HM)
93306-30317-00
$39.99
9
FLANGE, SPACER
146-25315-00-00
$7.99
10
SPACER
90560-17140-00
Unavailable
11
DAMPER, CLUTCH
148-25364-00-00
Unavailable
12
OIL SEAL
93104-25008-00
Unavailable
13
O-RING (70E)
93210-54534-00
Unavailable
14
PLATE, BRAKE SHOE
152-25321-00-00
Unavailable
15
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
16
CAMSHAFT
152-25351-00-00
Unavailable
17
BRAKE SHOE KIT
5R3-W253E-00-00
Unavailable
18
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
19
SEAL, CAM SHAFT
148-25359-00-00
Unavailable
20
LEVER, CAMSHAFT
152-25355-00-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
CLUTCH,HUB
168-25366-00-00
Unavailable
24
SPROCKET, DRIVN 38T
152-25438-10-33
Unavailable
24
SPROCKET, DRIVN 39T
152-25439-10-33
Unavailable
24
SPROCKET, DRIVN 40T
152-25440-10-33
Unavailable
24
SPROCKET, DRIVN 41T
152-25441-10-33
Unavailable
24
SPROCKET, DRIVN 42T
152-25442-10-33
Unavailable
24
SPROCKET, DRIVN 43T
152-25443-10-00
Unavailable
25
WASHER
148-25412-00-00
Unavailable
26
BOLT, WASHER BASED
146-15411-00-00
Unavailable
27
525T 92L
94515-25092-00
Unavailable
27
. MASTER LINKS
94615-25001-00
Unavailable
28
AXLE, SPROCKET
152-25387-00-00
Unavailable
29
CIRCLIP(26H)
99009-52500-00
Unavailable
30
BEARING
93306-20503-00
Unavailable
31
OIL SEAL
93102-32037-00
Unavailable
32
NUT, SLOTTED
95307-08900-00
Unavailable
33
COLLAR
90387-23180-00
Unavailable
34
PULLER, CHAIN 2
156-25389-00-00
Unavailable
35
NUT,SPEC'L SHAPE
90179-22124-00
Unavailable
36
AXLE,WHEEL
150-25381-01-00
Unavailable
37
COLLAR, WHEEL
148-25383-00-00
Unavailable
38
PULLER, CHAIN 1
156-25388-00-00
Unavailable
39
NUT(6L2)
95333-08600-00
Unavailable
40
COLLAR
90387-17429-00
Unavailable
41
WASHER, WHEEL
156-25384-00-00
Unavailable
42
NUT,HEXAGON
90170-16083-00
Unavailable
43
BOLT
90109-08330-00
Unavailable
44
BAR, TENSION
152-25371-00-00
Unavailable
45
WASHER, PLAIN
92903-08200-00
Unavailable
46
. NUT
95380-08700-00
Unavailable
47
PIN, COTTER
91490-20025-00
Unavailable
48
NUT, CASTLE
95307-10900-00
Unavailable
49
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
50
PIN, COTTER
91490-20025-00
Unavailable
51
SPRING, COMPRESSION (3L5)
90501-10074-00
Unavailable
52
PIN 1562723700
90249-12008-00
Unavailable
53
NUT (25K)
90179-06411-00
Unavailable
54
PIN, COTTER
91490-16020-00
Unavailable
55
CABLE, BRAKE
156-26351-00-00
Unavailable
56
LINK
156-27215-00-00
Unavailable
57
SPRING,TORSION
90508-26037-00
Unavailable
58
PIN W/HOLE 307181180000
90240-08013-00
Unavailable
59
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
60
PIN, COTTER (648)
91490-20015-00
Unavailable
61
PIN, JOINT
156-27228-00-00
Unavailable
62
BAR, PEDAL LINK
156-27224-00-00
Unavailable
63
PEDAL,BRAKE
169-27211-00-00
Unavailable
64
BOLT(3DM)
97024-06020-00
Unavailable
65
NUT(650)
95380-06700-00
Unavailable
66
SHAFT, BRAKE
156-27212-00-00
Unavailable
67
BOLT
90109-10340-00
Unavailable
68
NIPPLE, GREASE
93700-06M03-00
Unavailable
