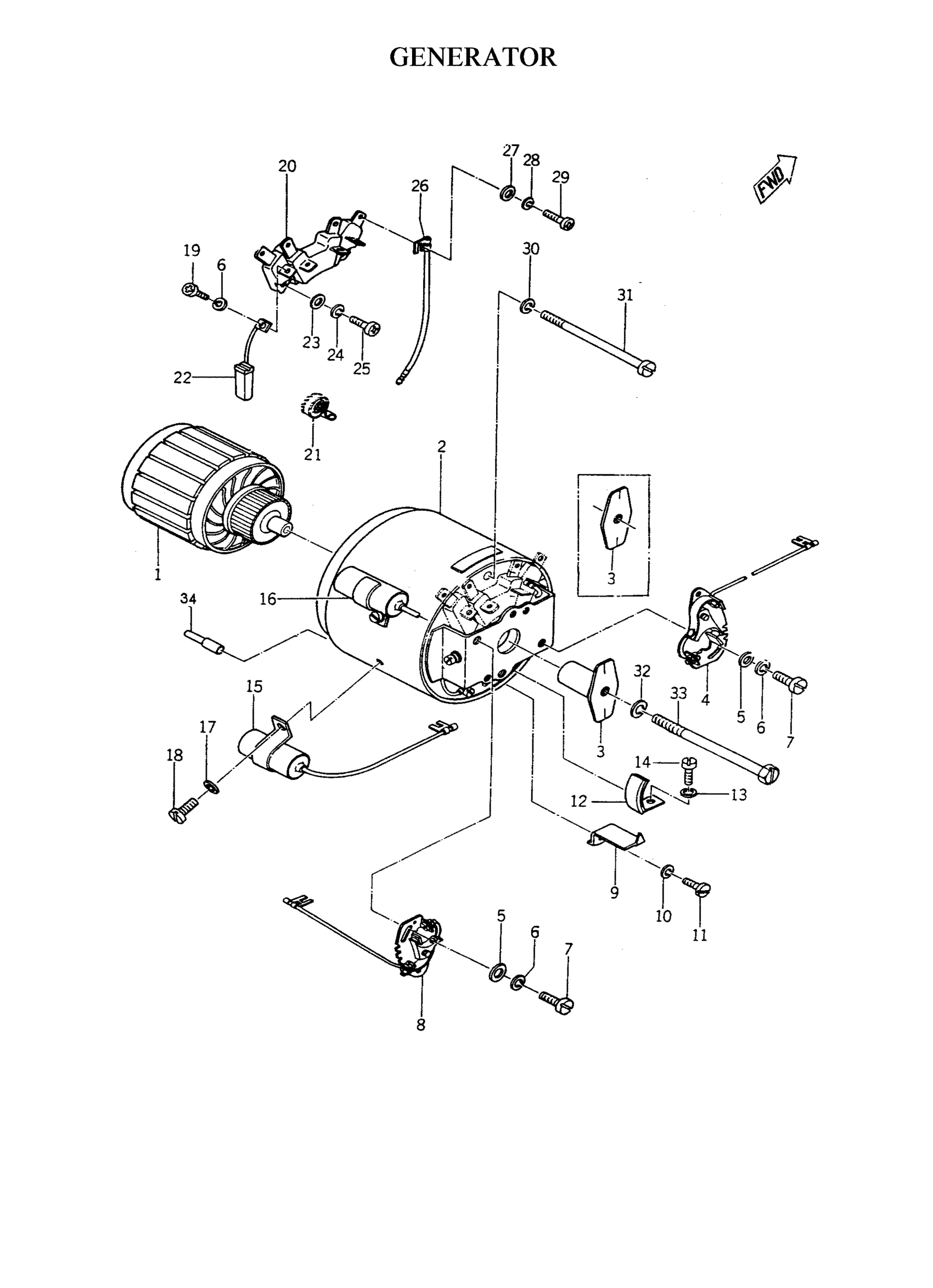

Yamaha YDS3 (YDS3_1966) 156 1964 GENERATOR Diagram
#
1
ARMATURE
156-81255-21-00
Unavailable
2
STATOR ASSEMBLY
156-81210-20-00
Unavailable
3
CAM
156-81251-20-00
Unavailable
3
PLATE,CAM
156-81254-20-00
Unavailable
4
CONTACT BRKR ASY
156-81221-21-00
Unavailable
5
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
6
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
7
SCREW,PAN HEAD
164-81245-20-00
Unavailable
8
CONTACT BRKR ASY
156-81222-21-00
Unavailable
9
PLATE, TIMING
156-81132-21-00
Unavailable
10
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
11
SCREW,PAN HEAD
164-81245-20-00
Unavailable
12
LUBRICATOR
156-81231-20-00
Unavailable
13
WASHER, SPRING
92901-03L00-00
Unavailable
14
. SCREW
92503-03006-00
Unavailable
15
CONDENSER 1
156-81125-20-00
Unavailable
16
CONDENSER 2
156-81126-20-00
Unavailable
17
WASHER, SPRING
9290L-04100-00
Unavailable
18
SCREW,PAN HEAD
164-81245-20-00
Unavailable
19
SCREW,PAN HEAD
164-81245-20-00
Unavailable
20
TERMINAL
156-81218-20-00
Unavailable
21
SPRING, BRUSH
156-81213-20-00
Unavailable
22
BRUSH
156-81211-20-00
Unavailable
23
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
24
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
25
SCREW, PAN HEAD
92501-04008-00
Unavailable
26
WIRE, LEAD
156-81215-20-00
Unavailable
27
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
28
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
29
SCREW, PAN HEAD
92501-04008-00
Unavailable
30
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
31
SCREW, STATOR
156-81235-20-00
Unavailable
32
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
33
BOLT
156-81252-20-00
Unavailable
34
PIN, DOWEL
156-15318-00-00
Unavailable
