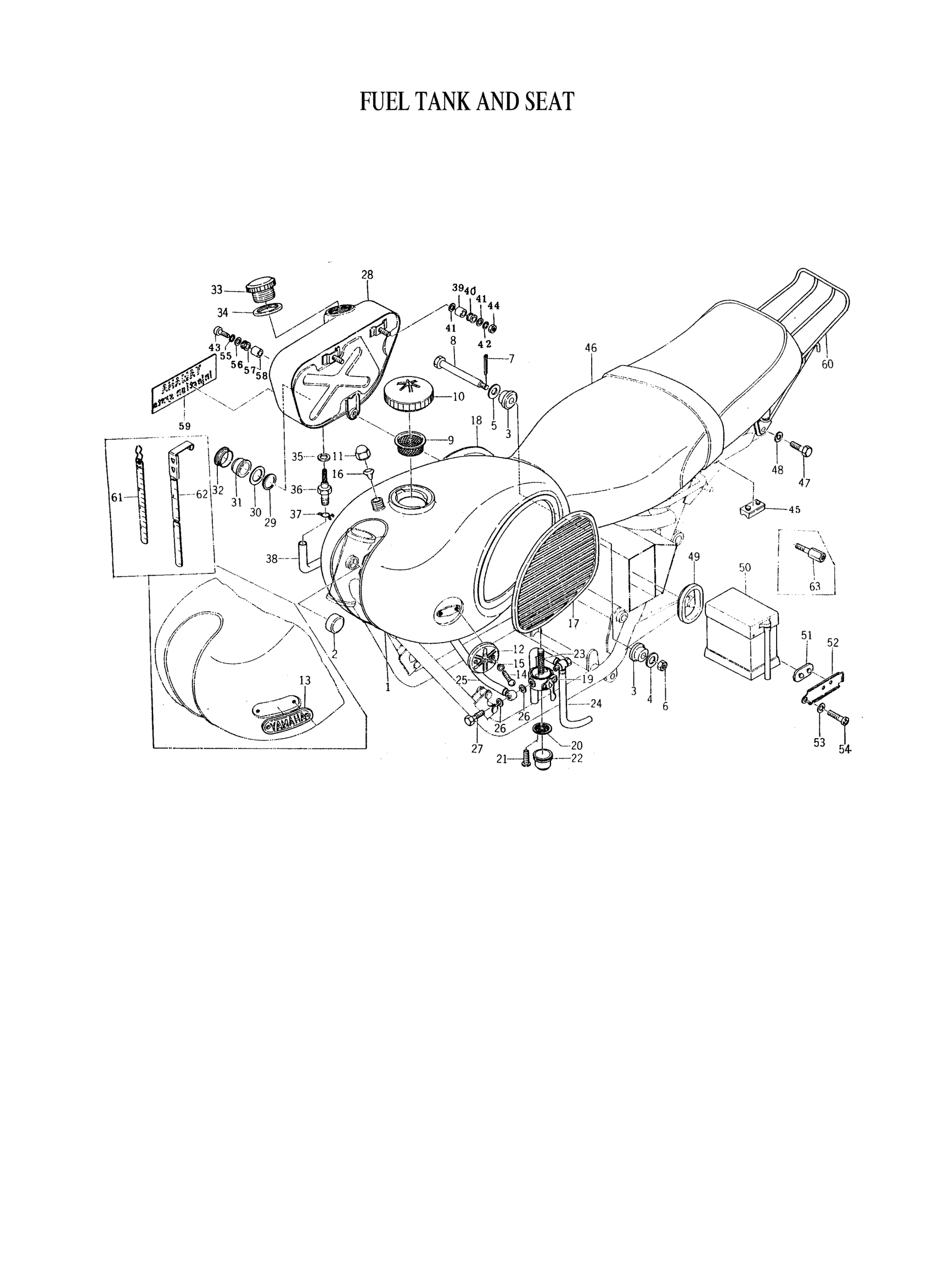

Yamaha YDS3 (YDS3_1966) 156 1964 FUEL TANK AND SEAT Diagram

#

Description
Price

1

FUEL TANK

156-24110-01-63

Unavailable

2

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

3

DAMPER, LOCATING 2

156-24182-01-00

Unavailable

4

WASHER, PLATE

90201-06086-00

$7.49

5

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

. PIN, COTTER

91490-12012-00

Unavailable

8

BOLT,WITH HOLE

90102-08004-00

Unavailable

8

BOLT,WITH HOLE

90102-08004-00

Unavailable

9

STRAINER

156-24167-00-00

Unavailable

10

CAP ASSY

7V5-24610-01-00

$48.99

11

NUT,CAP

168-24681-00-00

Unavailable

12

EMBLEM 1

137-24161-00-00

Unavailable

13

EMBLEM 1

132-24161-00-00

Unavailable

14

SCREW, PAN HEAD

92503-04008-00

Unavailable

15

WASHER,PLATE

90202-03002-00

Unavailable

16

VALVE

150-24682-00-00

Unavailable

17

GRIP, KNEE (LH)

152-24171-00-00

Unavailable

18

GRIP, KNEE (RH)

152-24172-00-00

Unavailable

19

FUEL COCK ASSEMBLY 1

156-24500-00-00

Unavailable

20

. NET, FILTER

146-24515-00-00

Unavailable

21

. SCREW

92701-05030-00

Unavailable

22

. CUP

146-24521-00-00

Unavailable

23

. STRAINER

146-24514-00-00

Unavailable

24

PIPE,FUEL 1

152-24311-00-00

Unavailable

25

PIPE, LEVEL

152-24331-00-00

Unavailable

26

GASKET, PIPE

146-24528-00-00

Unavailable

27

BOLT,UNION

90401-10006-00

Unavailable

28

TANK,OIL

156-21751-00-81

Unavailable

29

GAUGE, LEVEL

137-21761-00-00

Unavailable

30

GASKET, LEVEL GAUGE

137-21763-00-00

Unavailable

31

LENS, LEVEL GAUGE

137-21764-00-00

Unavailable

32

NUT,SPEC'L SHAPE

90179-36107-00

Unavailable

33

BODY,CAP

137-21771-61-00

Unavailable

34

GASKET,CAP

137-21772-02-00

Unavailable

35

GASKET

90430-10029-00

Unavailable

36

SCREW, UNION

137-21768-01-00

Unavailable

37

CLIP 101235600

90467-08003-00

Unavailable

38

PIPE, OIL

156-21766-00-00

Unavailable

39

COLLAR

156-21748-00-00

Unavailable

40

DAMPER, LOCATING 1

156-21778-00-00

Unavailable

41

WASHER, PLATE

90201-08104-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

44

NUT(6L2)

95333-08600-00

Unavailable

45

PAD, SEAT

156-24741-00-00

Unavailable

46

DOUBLE SEAT ASSY

156-24730-01-00

Unavailable

46

. SEAT COVER ASSY

156-24731-01-00

Unavailable

47

BOLT (8J7)

97013-10030-00

Unavailable

48

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

49

STOPPER, BOX

156-21172-00-00

Unavailable

50

6N7.5-5A

150-82110-29-00

Unavailable

51

PAD, BATTERY

156-82121-00-00

Unavailable

52

BAND, BATTERY

156-82131-00-00

Unavailable

53

WASHER, SPRING

92995-06100-00

Unavailable

54

SCREW, PAN

98517-06012-00

Unavailable

55

WASHER, SPRING

92995-06100-00

Unavailable

56

WASHER, SPECIAL 2

156-21758-00-00

Unavailable

57

DAMPER, OIL TANK 2

156-21779-00-00

Unavailable

58

COLLAR

90387-07035-00

Unavailable

59

EMBLEM 2

137-21782-60-00

Unavailable

60

SUB CARRIER ASSY

156-24830-01-00

Unavailable

61

GAUGE, OIL

156-21792-60-00

Unavailable

62

GAUGE,FUEL

155-24179-60-00

Unavailable

63

BOLT, SEAT FITTING

156-24717-00-00

Unavailable
