- YDS3 (YDS3_1966) 156 1964
FRONT FORK AND HANDLE A

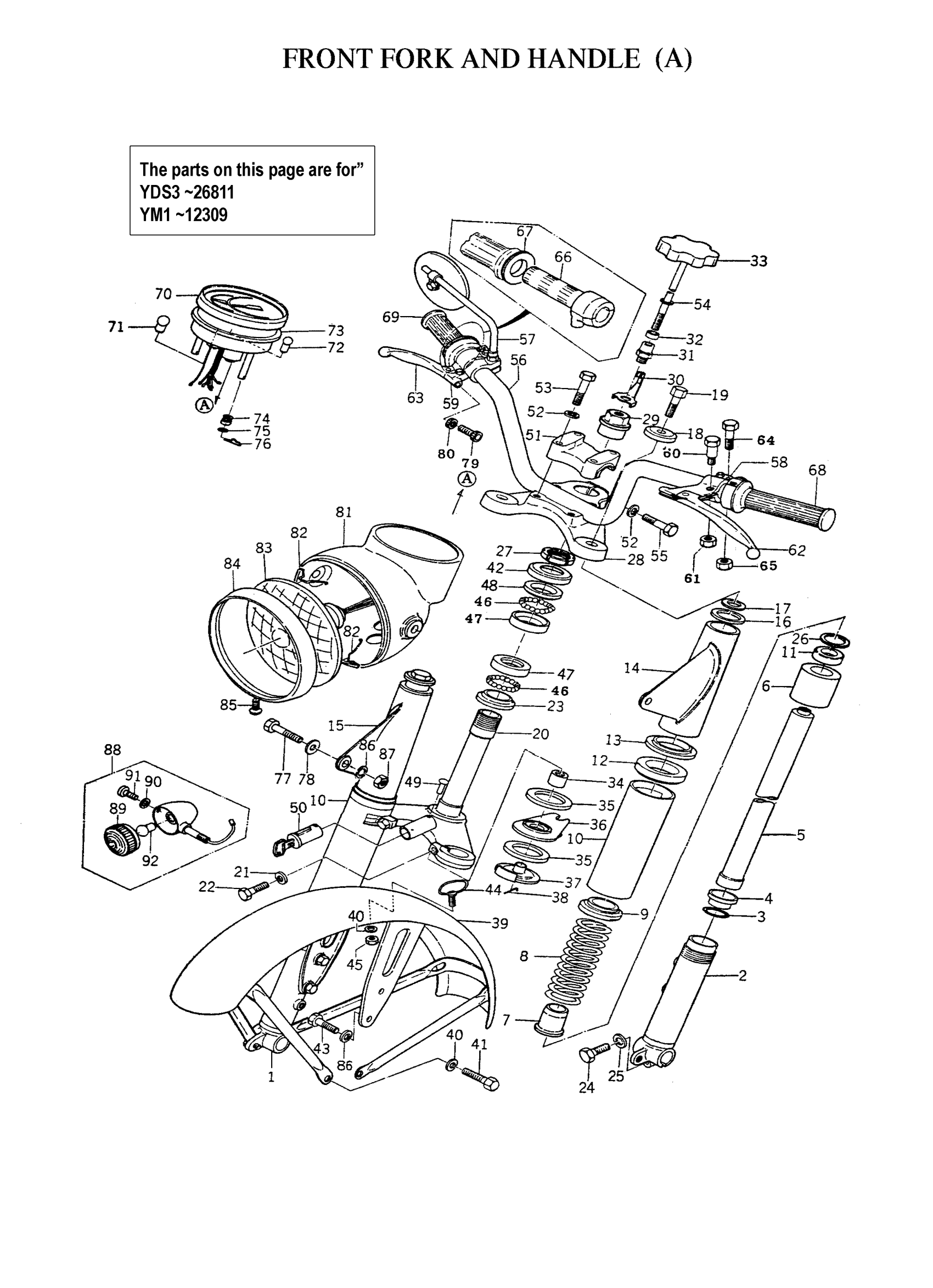

Yamaha YDS3 (YDS3_1966) 156 1964 FRONT FORK AND HANDLE A Diagram
#
1
TUBE, OUTER (RH)
156-23136-00-00
Unavailable
2
TUBE, OUTER (LH)
156-23126-00-00
Unavailable
3
. O-RING
156-23147-00-00
Unavailable
4
METAL, SLIDE 1
156-23125-00-00
Unavailable
5
TUBE, INNER 1
156-23124-00-00
Unavailable
5
TUBE, INNER 1
156-23124-01-00
Unavailable
6
NUT, OUTER TUBE
156-23127-00-00
Unavailable
7
SEAT, SPRING LOWER
156-23143-00-00
Unavailable
8
SPRING,FRONT FORK
156-23141-00-00
Unavailable
9
SEAT,SPRING UPPER
156-23142-00-00
Unavailable
10
COVER,LOWER 1
156-23123-00-81
Unavailable
11
OIL SEAL
156-23145-00-OO
Unavailable
12
PACKING
156-23163-00-00
Unavailable
13
GUIDE, COVER UNDER
156-23116-00-00
Unavailable
14
COVER,UPPER 1
156-23121-00-81
Unavailable
15
COVER,UPPER 2
156-23131-00-81
Unavailable
16
GUIDE, COVER UPPER
156-23115-00-00
Unavailable
17
GASKET
156-23114-00-00
Unavailable
18
WASHER, CAP
156-23112-00-00
Unavailable
19
BOLT, CAP
156-23111-00-00
Unavailable
19
BOLT, CAP
156-23111-01-00
Unavailable
20
UNDER BRACKET
156-23340-00-33
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
22
BOLT 1
122-23346-02-00
$6.99
23
RACE, BALL 1
B6E-23411-00-00
$8.49
24
BOLT, HEXAGON
97013-08030-00
$2.49
25
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
26
WASHER, OIL SEAL
156-23146-00-00
Unavailable
27
NUT, FITTING 2
156-23454-00-00
Unavailable
28
CROWN, HANDLE
156-23435-01-00
Unavailable
29
NUT,SPEC'L SHAPE
90179-30108-00
Unavailable
30
SPRING
156-23428-00-00
Unavailable
31
GUIDE, DAMPER
156-23424-00-00
Unavailable
32
WASHER, PLATE 1412342700
90202-06008-00
$4.72
33
SHAFT, DAMPER
156-23419-00-00
Unavailable
34
HOLDER, DAMPER
148-23434-00-00
Unavailable
35
DAMPER, FRICTION
156-23425-00-00
Unavailable
36
PLATE,DAMPER 2
169-23422-01-00
Unavailable
37
PLATE,DAMPER 1
169-23421-00-33
Unavailable
38
PIN, COTTER
156-23433-00-00
Unavailable
39
FENDER, FRONT
156-21510-01-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
BOLT (661)
97013-06012-00
$5.60
42
COVER, BALL RACE 1
156-23415-00-00
Unavailable
43
BOLT(62E)
97013-08012-00
$3.28
44
HOLDER, CABLE
152-21518-00-00
Unavailable
45
NUT, HEXAGON
95380-06600-00
Unavailable
46
BALL
93501-04011-00
$8.49
47
RACE, BALL 2
B6E-23412-00-00
$13.49
48
RACE, BALL 1
B6E-23411-00-00
$8.49
49
RIVET
122-23483-00-00
Unavailable
50
STEERING LOCK ASSEMBLY
156-23480-00-00
Unavailable
51
HOLDER, HANDLE UPR
156-23441-00-00
Unavailable
52
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
53
BOLT
97013-08045-00
$9.49
54
WASHER, PLATE
90201-06061-00
Unavailable
55
BOLT, HEXAGON
97013-08050-00
$8.49
56
HANDLEBAR
156-26111-00-00
Unavailable
57
BACK MIRROR ASSY
162-26290-00-00
Unavailable
58
LEVER HOLDER ASY 1
240-82810-00-00
Unavailable
58
LEVER HOLDER ASY 1
240-82810-00-00
Unavailable
58
LEVER HOLDER ASY 1
156-82910-10-94
Unavailable
59
LEVER HOLDER ASY 2
240-82820-00-00
Unavailable
59
LEVER HOLDER ASY 2
240-82820-00-00
Unavailable
59
LEVER HOLDER ASY 2
156-82820-10-94
Unavailable
60
BOLT
90109-06333-00
Unavailable
61
NUT(650)
95380-06700-00
$8.49
62
LEVER L
150-83912-00-38
Unavailable
63
LEVER R
218-83922-30-38
Unavailable
64
BOLT, HEXAGON
97017-06025-00
$4.24
65
NUT, HEXAGON
95380-06600-00
Unavailable
66
GRIP ASY
156-26240-09-00
Unavailable
66
TUBE, GUIDE
1V1-26243-00-00
$15.49
67
RING, LEAF
150-26249-00-00
Unavailable
68
GRIP (LH)
150-26241-00-00
Unavailable
68
GRIP (LH)
156-26241-00-00
Unavailable
69
GRIP (RH)
150-26242-00-00
Unavailable
69
GRIP (RH)
156-26242-00-00
Unavailable
70
SPEEDOMETER ASSY
156-83510-60-00
Unavailable
70
SPEEDOMETER ASY
168-83510-71-00
Unavailable
71
BULB,(6V3W)
122-83516-10-00
Unavailable
72
BULB,(6V3W)
122-83516-10-00
Unavailable
73
DAMPER
152-83513-00-00
Unavailable
74
DAMPER
156-83523-00=00
Unavailable
75
WASHER,SPEC'L SHAP
90209-05025-00
Unavailable
76
CLIP (156-83525-00)
90468-10050-00
$3.05
77
BOLT (682)
97013-08025-00
$8.49
78
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
79
BOLT
90123-08002-00
$10.49
80
NUT
90179-08030-00
$5.49
81
BODY, HEADLAMP
156-84111-01-00
Unavailable
82
SPRING, REFLECTOR SET
148-84324-00-00
$6.99
83
LANS ASSY
152-84120-60-00
Unavailable
84
RIM,HEADLIGHT
152-84115-01-00
Unavailable
84
RIM,HEADLIGHT
168-84315-00-00
Unavailable
85
SCREW, RIM FITTING
150-84125-00-00
Unavailable
86
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
87
NUT(6L2)
95333-08600-00
$2.49
88
FRT FLSHR LITE ASY
152-83310-10-00
Unavailable
89
. LENS, FLASHER
136-83312-20-00
Unavailable
90
WASHER, SPRING
92990-03100-00
$8.49
91
. SCREW
92503-03006-00
Unavailable
92
. BULB 6V 10W
152-83311-10-00
Unavailable
