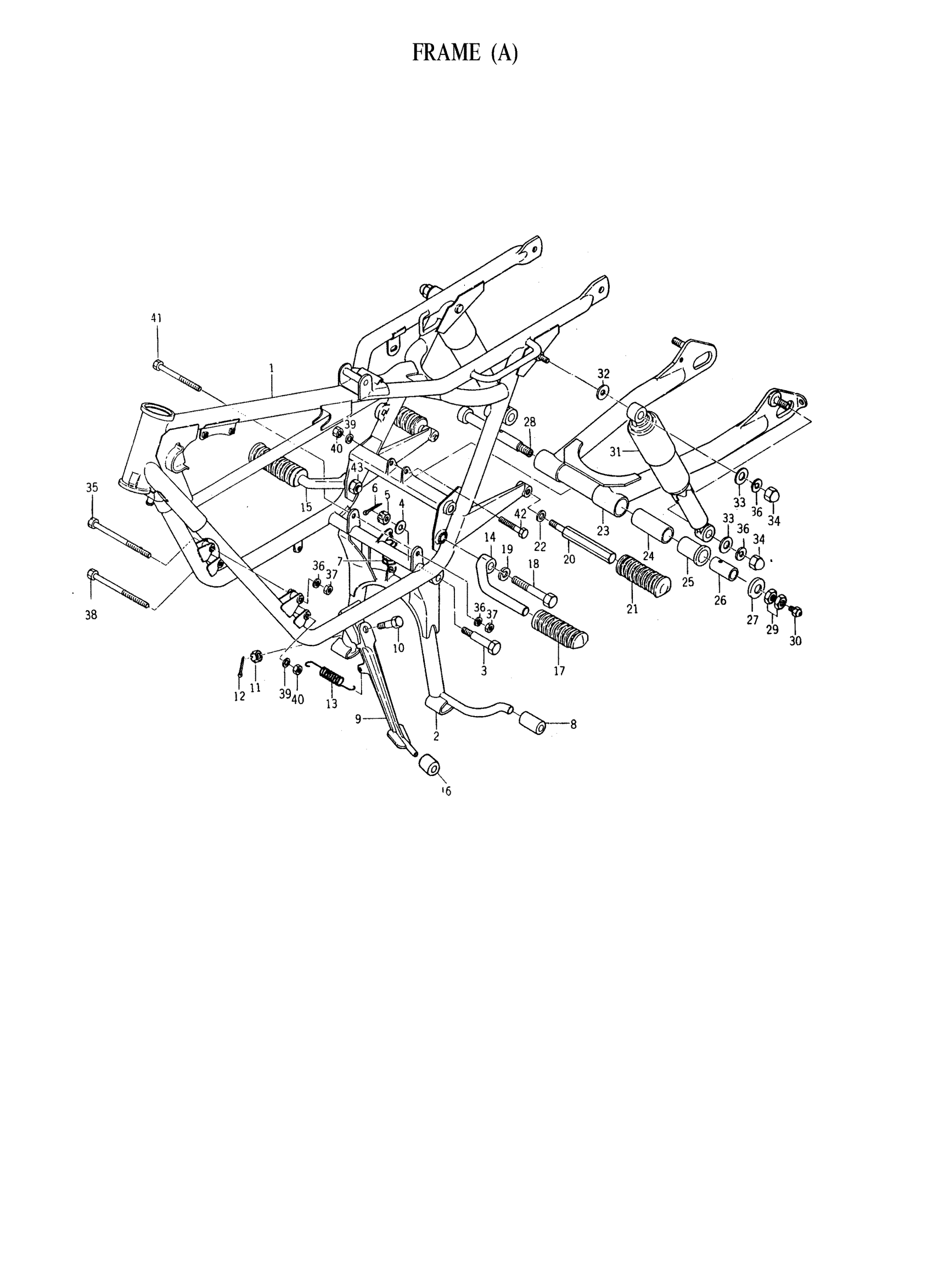

Yamaha YDS3 (YDS3_1966) 156 1964 FRAME A Diagram
#
1
FRAME COMPLETE
156-21110-60-00
Unavailable
2
STAND, MAIN
156-27111-02-00
Unavailable
3
BOLT
90109-10072-00
Unavailable
4
958-69527-00 WASHER, PLAIN
92990-10200-00
$3.72
5
NUT, SLOTTED
2801-10500-00
Unavailable
6
PIN, COTTER
91490-20025-00
$1.99
7
SPRING,TENSION
90506-45062-00
Unavailable
8
STOPPER, MAIN STAND
156-27114-00-00
Unavailable
9
STAND, SIDE
156-27311-00-00
Unavailable
10
BOLT
90109-08185-00
Unavailable
11
BOLT
90109-08185-00
Unavailable
12
PIN, COTTER
91490-20025-00
$1.99
13
SPRING TENSION 150273160000
90506-25047-00
$9.49
14
FOOTREST 1
156-27411-00-00
Unavailable
15
FOOTREST 2
156-27421-00-00
Unavailable
16
STOPPER, SIDE STAND
156-27314-00-00
Unavailable
17
COVER, FOOT REST
156-27413-00-00
Unavailable
18
BOLT,HEXAGON
97321-12040-00
Unavailable
19
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
20
FOOTREST,REAR 1
169-27431-00-00
Unavailable
21
COVER, RR FOOTREST
156-27433-00-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
REAR ARM COMPLETE
156-22110-01-00
Unavailable
24
COLLAR
90387-16128-00
Unavailable
25
BUSH 1482212300
90386-22018-00
Unavailable
26
COLLAR
90387-18451-00
Unavailable
27
COVER,THRUST 1
1A0-22128-00-00
Unavailable
28
SHAFT, PIVOT
156-22141-00-00
Unavailable
29
NUT,HEXAGON
90170-14147-00
Unavailable
30
NIPPLE, GREASE
93700-06M03-00
Unavailable
31
REAR CUSHION ASSY
156-22210-00-00
Unavailable
32
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
33
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
34
NUT, CROWN (650)
95380-10800-00
Unavailable
35
BOLT
90101-10085-00
Unavailable
36
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
37
NUT, SELF LOCKING
90185-10031-00
Unavailable
38
BOLT,WASHER BASED
90105-08033-00
Unavailable
39
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
40
NUT(6L2)
95333-08600-00
Unavailable
41
BOLT, WASHER BASED
90105-10227-00
Unavailable
42
BOLT, HEXAGON
97013-08050-00
Unavailable
43
NUT, HEXAGON SMALL
95317-12700-00
Unavailable
