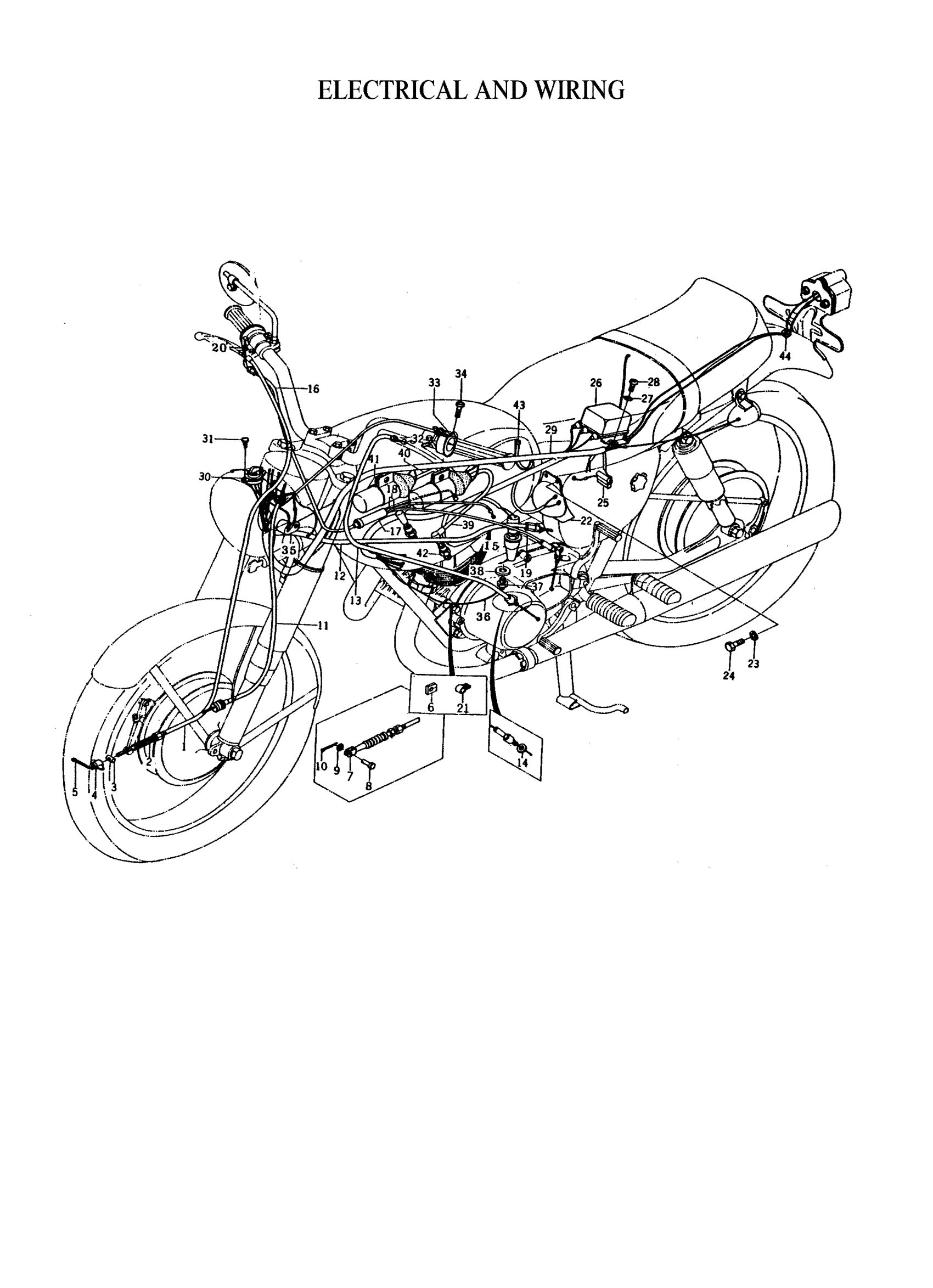

Yamaha YDS3 (YDS3_1966) 156 1964 ELECTRICAL AND CABLES Diagram

#

Description
Price

1

CABLE,BRAKE

174-26341-10-00

Unavailable

1

CABLE,BRAKE

174-26341-10-00

Unavailable

2

SPRING, (180-27236-00)

90501-10245-00

$8.49

3

PIN 1562723700

90249-12008-00

$8.49

4

NUT (25K)

90179-06411-00

$8.49

5

PIN, COTTER

91490-16020-00

Unavailable

6

GROMMET

90480-01148-00

Unavailable

7

JOINT, WIRE

156-26347-00-00

$8.99

8

PIN W/HOLE 307181180000

90240-08013-00

$8.49

9

WASHER, PLATE 1562722600

90201-08083-00

$9.49

10

PIN, COTTER (648)

91490-20015-00

$2.20

11

SPEEDOMETER CABLE

156-83550-01-00

Unavailable

12

TACHOMETER CABLE ASSY

156-83560-00-00

Unavailable

13

WIRE, CLUTCH

156-26335-00-00

Unavailable

14

GASKET, CLUTCH WIRE

148-26336-00-00

Unavailable

15

STOP SWITCH ASSY

156-82530-00-00

Unavailable

16

WIRE, THROTTLE 1

156-26311-00-00

Unavailable

16

WIRE, THROTTLE 1

156-26311-03

Unavailable

17

CYLINDER, WIRE

156-26261-00-00

Unavailable

17

CYLINDER, WIRE

156-26261-01099

Unavailable

18

WIRE, THROTTLE 2

156-26312-01-00

Unavailable

18

WIRE, THROTTLE 3

156-26313-00-00

Unavailable

19

WIRE, OIL PUMP

156-26321-00-00

Unavailable

20

NUT, HEXAGON

90170-10038-00

Unavailable

21

CLAMP

90462-06014-00

Unavailable

22

HORN

156-83371-09-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

BOLT(JA9)

90101-08691-00

Unavailable

25

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

26

VOLTAGE REG ASY

156-81910-20-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

SCREW, PAN

98507-06014-00

Unavailable

29

WIRE HARNESS ASSEMBLY

156-82590-10-00

Unavailable

30

MAIN SWITCH ASY

152-82508-10-00

Unavailable

31

SCREW, FLAT

98707-04010-00

Unavailable

32

HOLDER, HANDLE SWCH

214-83974-00-00

Unavailable

33

HANDLE SWITCH ASY

156-82773-10-00

Unavailable

34

SCREW, PAN HEAD

90157-05M19-00

Unavailable

35

FLASHER RELAY ASSY

152-83350-10-00

Unavailable

36

WIRE, LEAD

156-82541-00-00

Unavailable

37

NEUTRAL SWITCH ASSEMBLY

156-82540-00-00

Unavailable

38

GASKET (3JD1)

90430-12207-00

Unavailable

39

CORD,HIGH TENS 1

156-82341-19-00

Unavailable

40

CORD, HIGH TENSION (RH)

156-82342-10-00

Unavailable

41

IGNITION COIL ASSY

152-82310-20-00

Unavailable

42

PLUG, SPARK

94701-00040-00

Unavailable

42

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

43

BAND

150-82591-00-00

Unavailable

44

GROMMET 152845180000

90480-12013-00

Unavailable
