CRANK AND PISTON

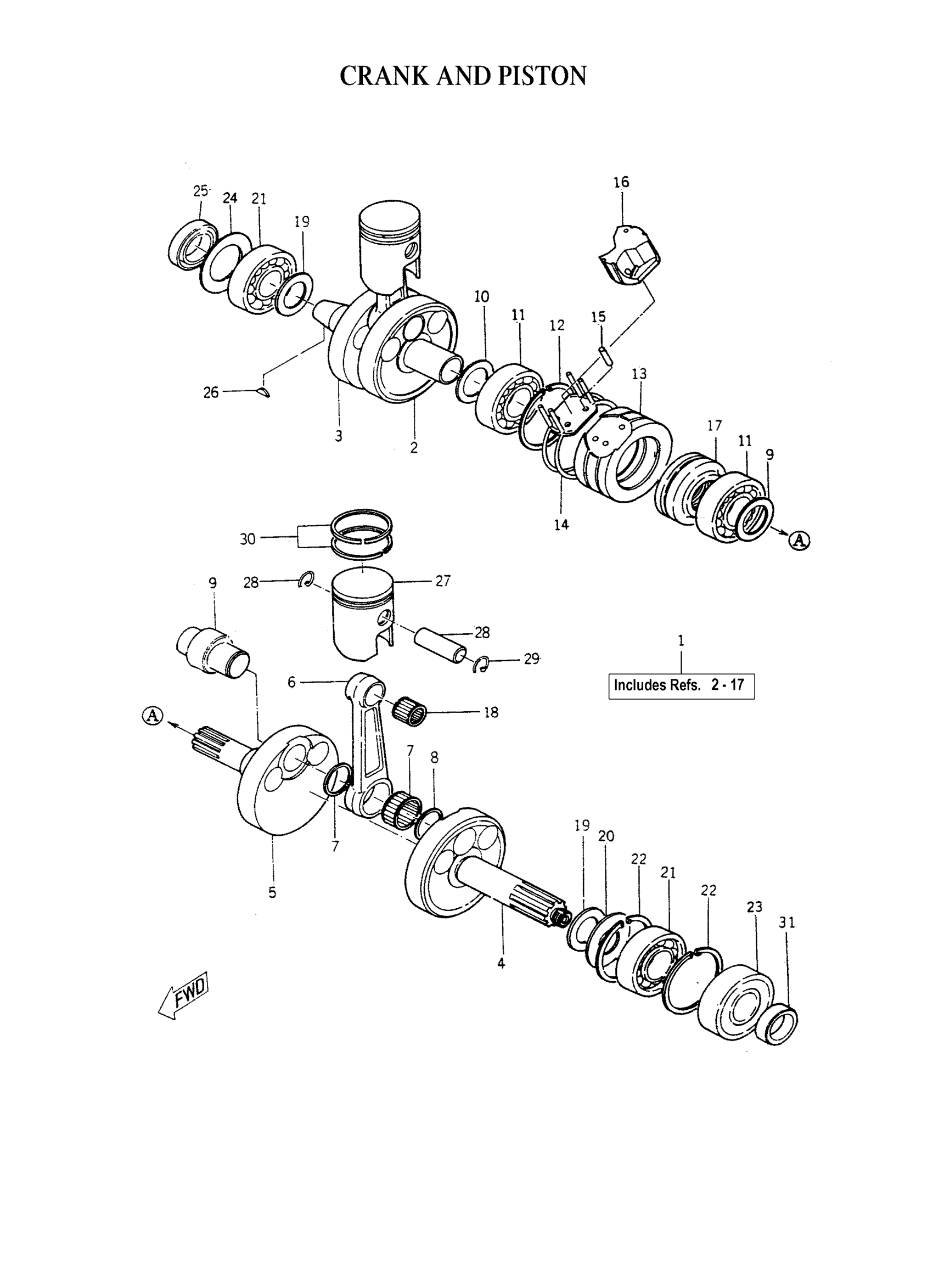

Yamaha YDS3 (YDS3_1966) 156 1964 CRANK AND PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
156-11400-00-00
Unavailable
2
. CRANK 3
156-11432-01-00
Unavailable
3
. CRANK 2 (RH)
156-11442-00-00
Unavailable
4
. CRANK 1 (LH)
156-11412-00-00
Unavailable
5
CRANK 2
156-11422-01-00
Unavailable
6
ROD,CONNECTING
246-11651-00-00
Unavailable
7
BEARING, CYLINDER.#10
93310-42417-00
Unavailable
8
WASHER (152-11685-00)
90209-24073-00
$14.99
9
PIN, CRANK 1
156-11681-00-00
Unavailable
10
. SHIM, CRANK 4 (25-44-05)
156-11564-00-04
Unavailable
11
BEARING (5X5)
93306-20627-00
$75.99
12
CIRCLIP(MF1)
99009-62500-00
$8.49
13
COVER, CRANK
156-11511-01-00
Unavailable
14
SEAL, CRANK COVER
156-11512-00-00
Unavailable
15
PIN,DOWEL (137)
93604-14012-00
$1.81
16
METAL, FILLER
156-11541-00-00
Unavailable
17
SEAL, LABYRINTH 1
145-11515-01-00
Unavailable
18
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
19
SHIM, CRANK 2
156-11562-00-05
Unavailable
20
SHIM, CRANK 1
156-11561-00-00
Unavailable
21
BEARING (8R9)
93306-30536-00
Unavailable
22
CIRCLIP(MF1)
99009-62500-00
$8.49
23
OIL SEAL, SW-TYPE
93103-35015-00
Unavailable
24
SHIM,CRANK 3
156-11563-00-00
Unavailable
25
OIL SEAL (20X36X10-733)
93103-20110-00
Unavailable
26
KEY,WOODRUFF
90280-04005-00
Unavailable
27
PISTON STD
156-11631-00-96
Unavailable
27
PISTON 1 O/S 0.25
156-11635-00-00
Unavailable
27
PISTON 2 O/S 0.50
156-11636-00-00
Unavailable
27
PISTON 3 O/S 0.75
156-11637-00-00
Unavailable
27
PISTON 4 O/S 1.00
156-11638-00-00
Unavailable
28
PIN, PISTON
137-11633-10-00
Unavailable
29
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
30
PISTON RINGSET STD
156-11601-00-00
Unavailable
30
PISTON RINGSET 1ST (0.25MM)
156-11601-10-00
Unavailable
30
PISTON RINGSET 2ND
156-11601-20-00
Unavailable
30
PISTON RINGSET 3RD
156-11610-30-00
Unavailable
30
PISTON RINGSET 4TH
156-11610-40-00
Unavailable
31
COLLAR
90387-25189-00
Unavailable
