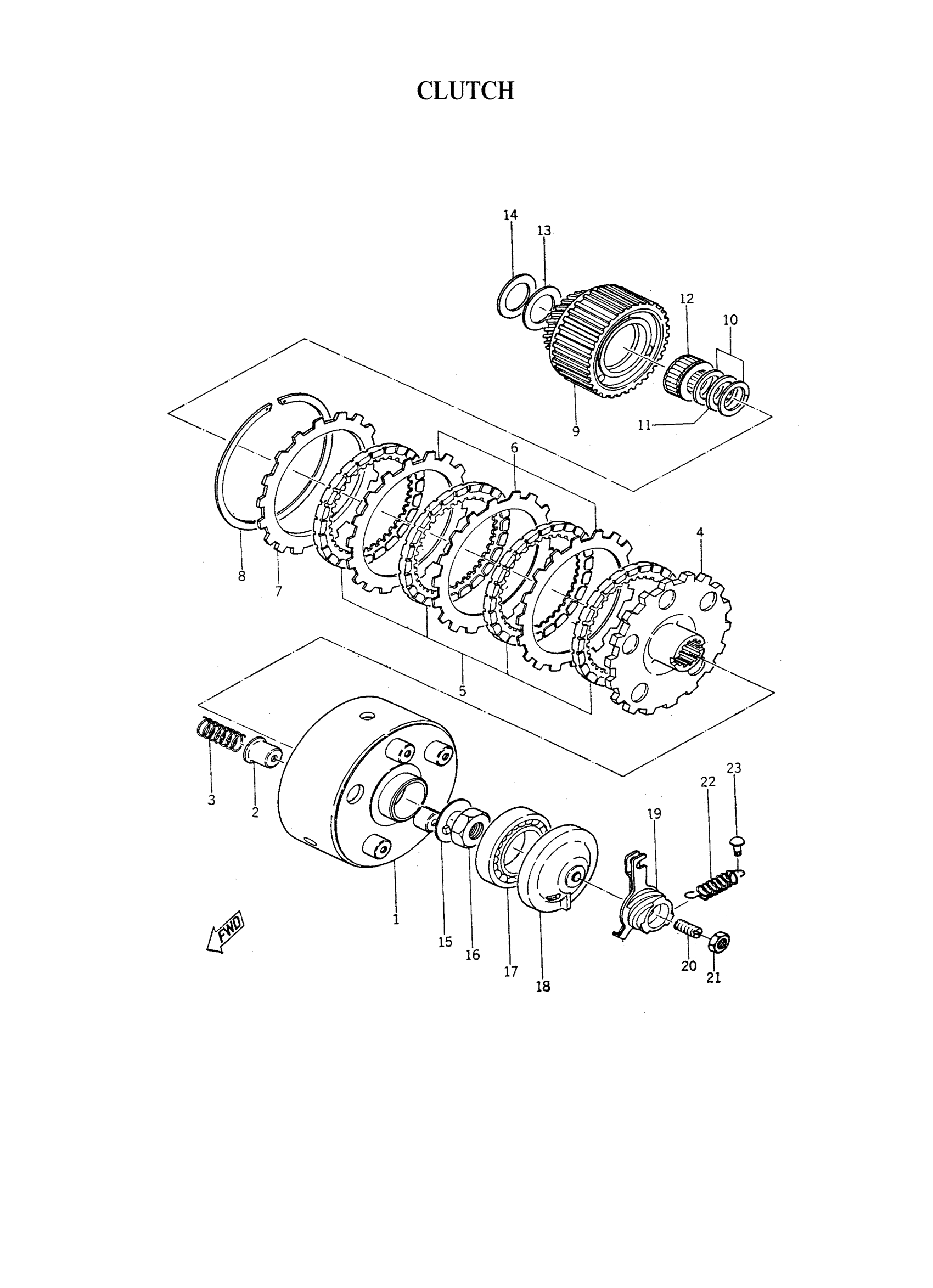

Yamaha YDS3 (YDS3_1966) 156 1964 CLUTCH Diagram

#

Description
Price

1

HOUSING, CLUTCH

156-16311-00-00

Unavailable

2

HOUSING, SPRING

156-16335-00-00

Unavailable

3

SPRING,COMPRESSION

90501-18113-00

Unavailable

4

PLATE, DRIVE

156-16327-00-00

Unavailable

5

PLATE, FRICTION

148-16321-00-00

Unavailable

6

PLATE, CLUTCH

156-16324-00-00

Unavailable

7

PLATE PRESSURE 1

148-16324-00-00

Unavailable

7

PLATE PRESSURE 2

148-16325-00-00

Unavailable

8

CLIP, HOUSING

93451-08008-00

Unavailable

9

PRIMARY DRIVE GEAR ASSY

156-16110-01-00

Unavailable

10

PLATE,THRUST 2

156-16124-00-15

Unavailable

11

WASHER,PLATE

90201-30297-00

Unavailable

12

BEARING

93312-22502-00

Unavailable

13

WASHER,PLATE

90201-32298-00

Unavailable

14

PLATE, THRUST INNER

156-16114-00-00

Unavailable

15

WASHER,LOCK

156-16378-01-00

Unavailable

16

NUT,SPEC'L SHAPE

90179-18080-00

Unavailable

17

BEARING

93316-00701-00

Unavailable

18

CROWN, PUSH

156-16348-01-00

Unavailable

19

CLUTCH PUSH LEVER ASSY

156-16340-00-00

Unavailable

20

BOLT,SET

90113-08014-00

Unavailable

21

NUT,HEXAGON

90170-08026-00

Unavailable

22

SPRING,TENSION

90506-10021-00

Unavailable

23

HOOK, SPRING

156-16346-00-00

Unavailable
