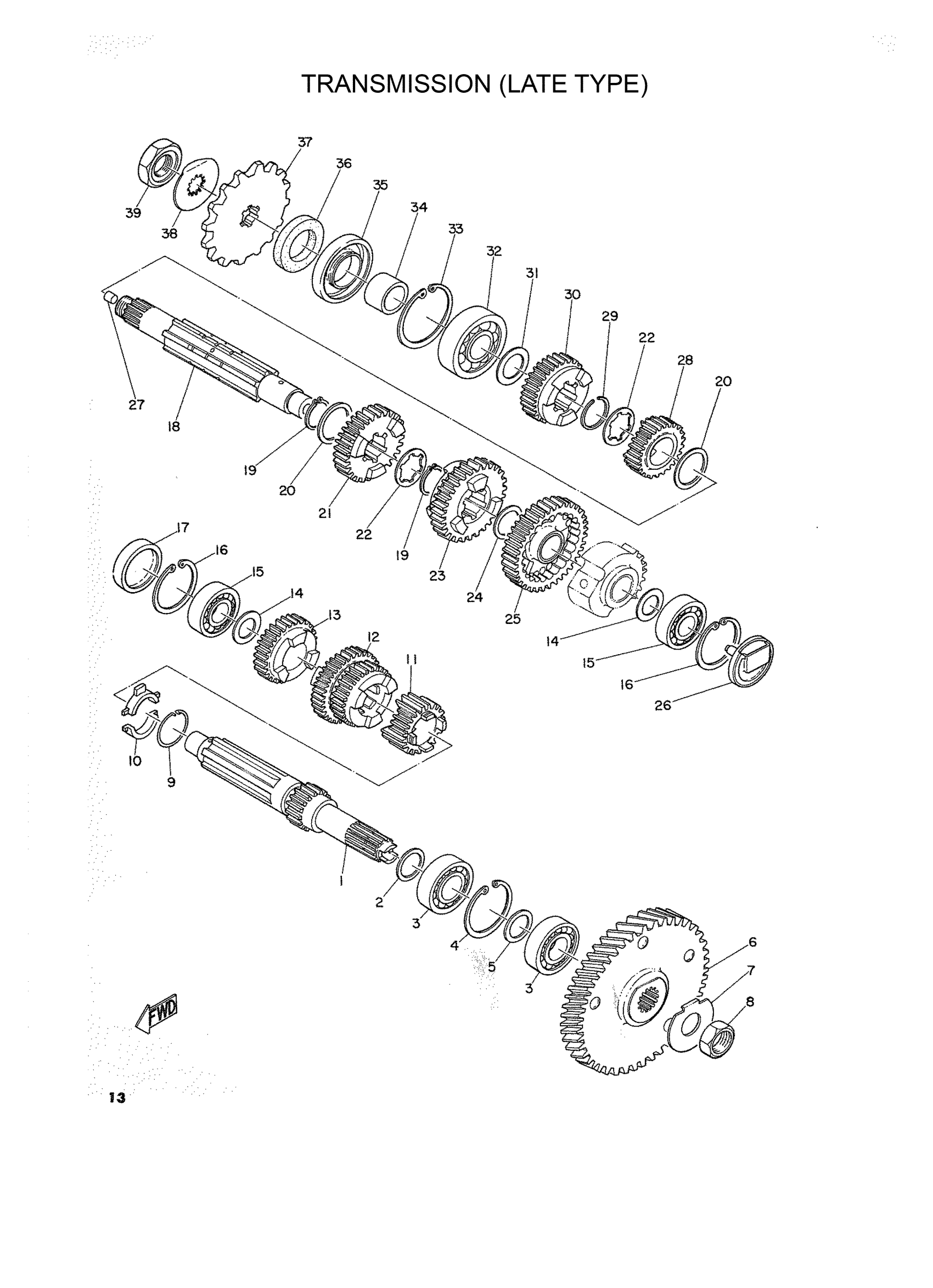

Yamaha YDS2 (YDS2_63) 152 1962 TRANSMISSION LATE TYPE Diagram

#

Description
Price

1

AXLE, MAIN

152-17411-00-00

Unavailable

2

SHIM, MAIN AXLE

150-17418-00-00

Unavailable

3

BEARING (5Y1)

93306-00426-00

$42.99

4

CIRCLIP(5U8)

99009-42500-00

$8.49

5

SHIM

146-17418-00-00

Unavailable

6

PRIMARY DRIVEN GEAR COMP.

156-16150-00-00

Unavailable

7

WASHER,LOCK

90215-19089-00

Unavailable

8

NUT, LOCK

150-16174-00-00

Unavailable

9

CLIP

90468-14036-00

Unavailable

10

PLATE, SETTING

152-17115-00-00

Unavailable

11

GEAR, 2ND PINION

152-17121-00-00

Unavailable

12

GEAR, 3RD AND 5TH PINION

152-17131-00-00

Unavailable

13

GEAR, 4TH PINION

152-17141-00-00

Unavailable

14

SHIM 1

150-17417-00-00

Unavailable

15

BEARING (7X9)

93306-20327-00

$38.99

16

CIR-CLIP (70R)

93420-40064-00

Unavailable

17

PLUG, BLIND

146-17481-00-00

Unavailable

18

AXLE, DRIVE

152-17421-00-00

Unavailable

19

CIRCLIP(JF7)

99009-25400-00

Unavailable

20

WASHER PLATE 152172260000

90201-25490-00

Unavailable

21

GEAR, 3RD WHEEL

152-17231-00-00

Unavailable

22

WASHER, GEAR HOLD 1

152-17218-00-00

Unavailable

23

GEAR, 2ND WHEEL

152-17221-00-00

Unavailable

24

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

25

GEAR, 1ST WHEEL

152-17211-00-00

Unavailable

26

BUCKET, OIL 1

156-17488-00-00

Unavailable

27

CIRCLIP(JF7)

99009-25400-00

Unavailable

28

GEAR 5TH WHEEL

152-17251-00-00

Unavailable

29

CIRCLIP (4L0)

93440-25084-00

Unavailable

30

GEAR, 4TH WHEEL

152-17241-00-00

Unavailable

31

SHIM 1

152-17418-00-00

Unavailable

32

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

33

. CIRCLIP

93450-52010-00

Unavailable

34

COLLAR, DISTANCE

152-17462-00-00

Unavailable

35

OIL SEAL, SD-TYPE

93102-17462-00

Unavailable

36

SEAL, FELT

152-17465-00-00

Unavailable

37

SPROCKET, DRIVE

152-17461-31-00

Unavailable

37

SPROCKET, DRIVE

152-17461-41-00

Unavailable

37

SPROCKET, DRIVE

152-17461-51-00

Unavailable

37

SPROCKET, DRIVE

152-17461-61-00

Unavailable

37

SPROCKET, DRIVE

152-17461-71-00

Unavailable

38

WASHER, LOCK

152-17464-00-00

Unavailable

39

NUT 152174630000

90179-18020-00

Unavailable
