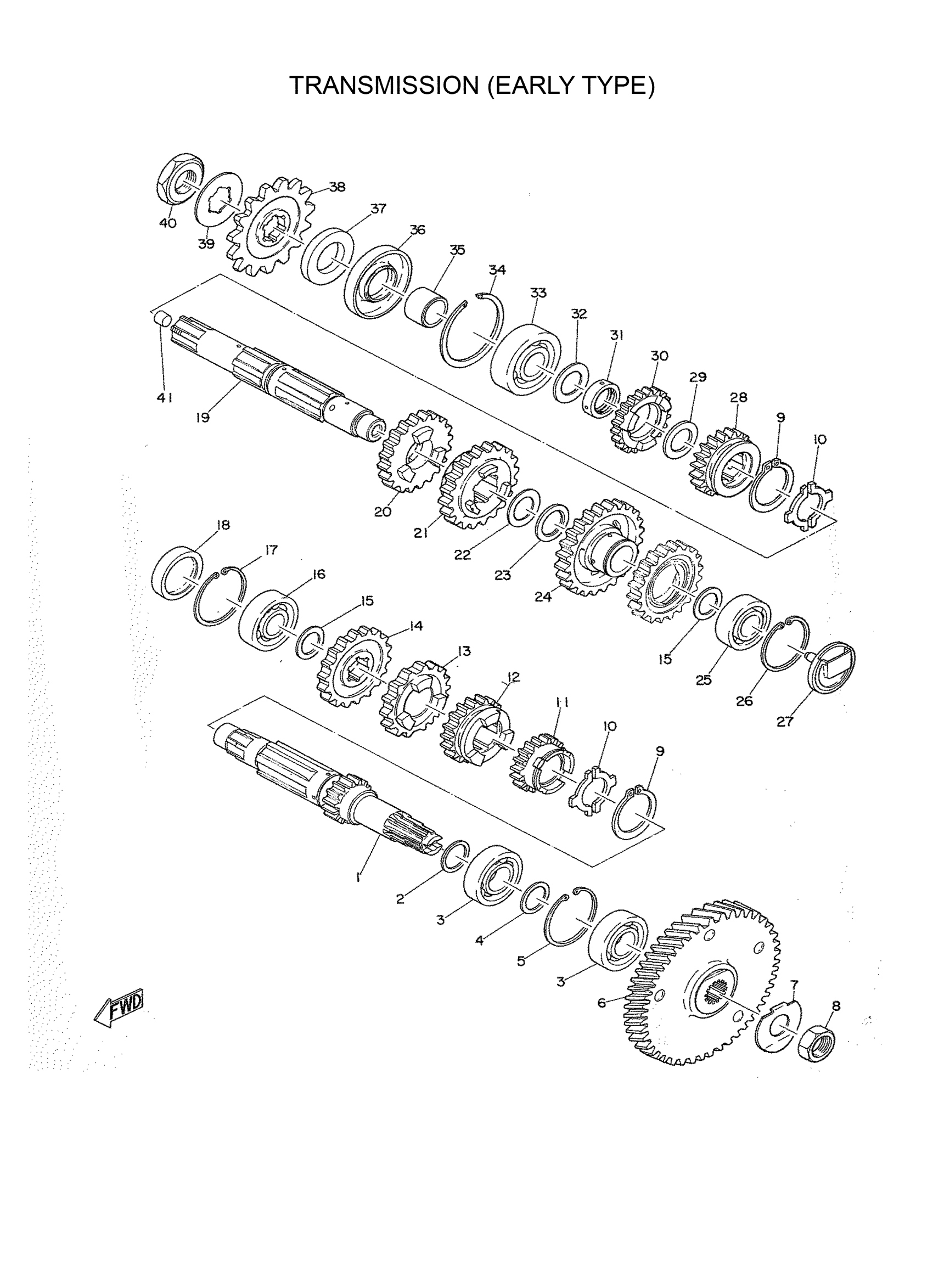

Yamaha YDS2 (YDS2_63) 152 1962 TRANSMISSION EARLY TYPE Diagram

#

Description
Price

1

AXLE, MAIN

150-17411-01-00

Unavailable

2

SHIM, MAIN AXLE

150-17418-00-00

Unavailable

3

BEARING (5Y1)

93306-00426-00

$42.99

4

SHIM

146-17418-00-00

Unavailable

5

CIRCLIP(5U8)

99009-42500-00

$8.49

6

PRIMARY DRIVEN GEAR COMP

148-16150-00-00

Unavailable

7

WASHER,LOCK

90215-19089-00

Unavailable

8

NUT, LOCK

150-16174-00-00

Unavailable

9

CLIP, GEAR HOLD

150-17117-00-00

Unavailable

10

PLATE, SETTING

150-17115-00-00

Unavailable

11

GEAR, 2ND PINION

150-17121-01-00

Unavailable

12

GEAR, 3RD PINION

150-17131-01-00

Unavailable

13

GEAR, 4TH PINION

150-17141-01-00

Unavailable

14

GEAR, 5TH PINION

150-17151-01-00

Unavailable

15

SHIM 1

150-17417-00-00

Unavailable

16

BEARING (7X9)

93306-20327-00

Unavailable

17

CIR-CLIP (70R)

93420-40064-00

Unavailable

18

PLUG, BLIND

146-17481-00-00

Unavailable

19

AXLE, DRIVE

150-17421-01-00

Unavailable

20

GEAR, 3RD WHEEL

150-17231-01-00

Unavailable

21

GEAR, 2ND WHEEL

150-17221-01-00

Unavailable

22

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

23

WASHER,SPEC'L SHAP

90209-21081-00

Unavailable

24

GEAR, 1ST WHEEL

150-17211-01-00

Unavailable

25

BEARING

93306-20130-00

Unavailable

26

CIR-CLIP (70R)

93420-40064-00

Unavailable

27

BUCKET, OIL

150-17488-00-00

Unavailable

28

GEAR, 4TH WHEEL

150-17241-01-00

Unavailable

29

SHIM

150-17228-00-00

Unavailable

30

GEAR, 5TH WHEEL

150-17251-01-00

Unavailable

31

COLLAR

150-17258-00-00

Unavailable

32

SHIM

150-17238-00-00

Unavailable

33

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

34

. CIRCLIP

93450-52010-00

Unavailable

35

COLLAR, DISTANCE

150-17462-00-00

Unavailable

36

OIL SEAL

93102-25018-00

Unavailable

37

SEAL

150-17465-00-00

Unavailable

38

SPROCKET, DRIVE

150-17461-30-00

Unavailable

38

SPROCKET, DRIVE

150-17461-40-00

Unavailable

38

SPROCKET, DRIVE

150-17461-50-00

Unavailable

38

SPROCKET, DRIVE

150-17461-60-00

Unavailable

38

SPROCKET, DRIVE

150-17461-70-00

Unavailable

39

WASHER,LOCK

90215-16101-00

Unavailable

40

NUT,SPEC'L SHAPE

90179-20096-00

Unavailable

41

PLUG,TAPER

90336-09002-00

Unavailable
