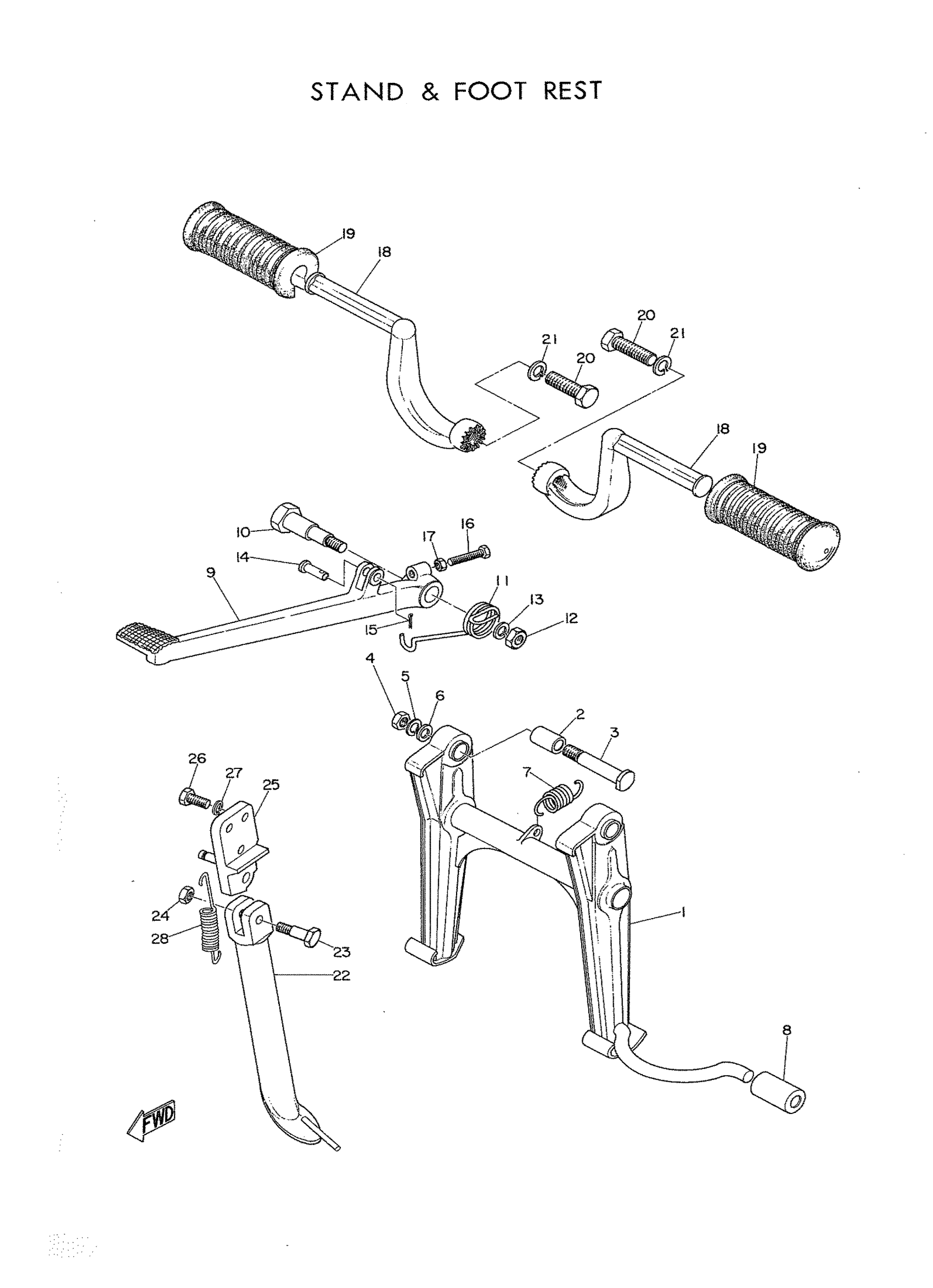

Yamaha YDS2 (YDS2_63) 152 1962 STAND AND FOOTREST Diagram

#

Description
Price

1

MAIN STAND

150-27111-00-00

Unavailable

2

COLLAR

90387-12097-00

Unavailable

3

BOLT, MAIN STAND

150-27117-00-00

Unavailable

4

NUT, SELF LOCKING

90185-10031-00

Unavailable

5

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

6

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

7

SPRING,TENSION

90506-35059-00

Unavailable

8

STOPPER, MAIN STAND

150-27114-00-00

Unavailable

9

PEDAL, BRAKE

150-27211-00-00

Unavailable

10

SHAFT, BRAKE PEDAL

150-27212-00-00

Unavailable

11

SPRING,TORSION

90508-35231-00

Unavailable

12

NUT, SELF LOCKING

90185-10031-00

Unavailable

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

PIN, JOINT

150-27228-00-00

Unavailable

15

PIN, COTTER

91490-16020-00

Unavailable

16

BOLT(3RV)

97014-06035-00

Unavailable

17

NUT(650)

95380-06700-00

Unavailable

18

FOOTREST

150-27411-00-00

Unavailable

19

COVER, FOOTREST

150-27413-00-00

Unavailable

20

BOLT,HEXAGON

97321-12040-00

Unavailable

21

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

22

STAND, SIDE

150-27311-00-00

Unavailable

23

BOLT

90109-08185-00

Unavailable

24

. NUT

95380-08700-00

Unavailable

25

BRACKET, SIDE STAND

150-27321-00-00

Unavailable

26

BOLT, HEXAGON

97013-08020-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

SPRING TENSION 150273160000

90506-25047-00

Unavailable
