- YDS2 (YDS2_63) 152 1962
SHIFTER 1

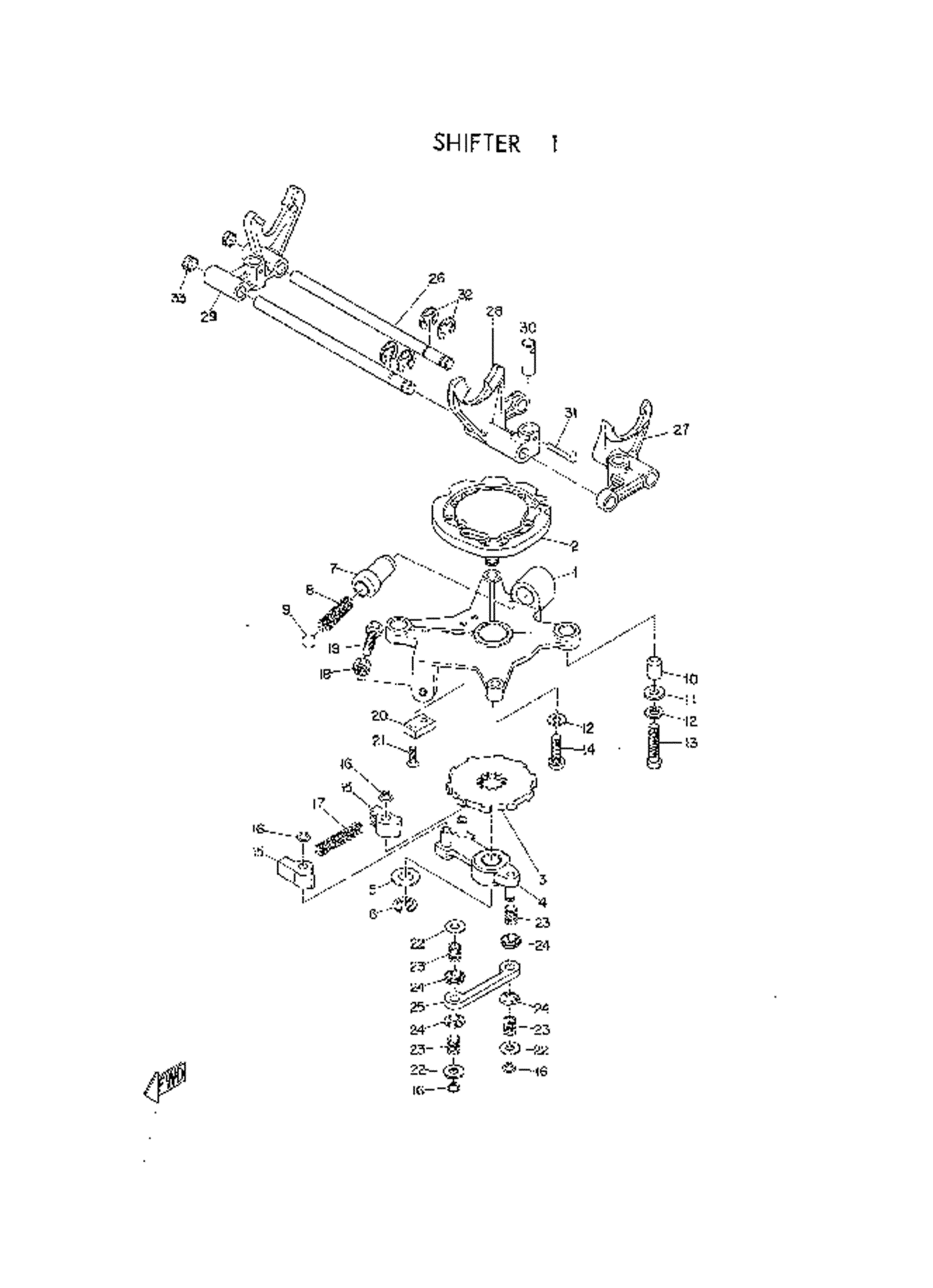

Yamaha YDS2 (YDS2_63) 152 1962 SHIFTER 1 Diagram
#
1
PLATE, CAM SETTING
150-18351-00-00
Unavailable
2
PLATE, SHIFT CAM
152-18331-00-00
Unavailable
3
PLATE, WORKING
156-18333-00-00
Unavailable
4
PAWL HOLDER ASSEMBLY
150-18180-00-00
Unavailable
5
SHIM
150-18334-00-09
Unavailable
6
CIRCLIP(2R6)
99001-08600-00
$8.49
7
BUSH
150-18587-00-00
Unavailable
8
SPRING,COMPRESSION
90501-16098-00
Unavailable
9
BALL 13/32
93513-32008-00
Unavailable
10
PIN, DOWEL(3VD)
99530-10114-00
$2.55
11
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
12
WASHER, SPRING
92995-06100-00
Unavailable
13
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
14
SCREW PAN HEAD
98580-06020-00
$8.49
15
PAWL, SHIFTER
150-18182-00-00
Unavailable
16
CLIP, PAWL LOCK
150-18189-00-00
Unavailable
17
SPRING,COMPRESSION
90501-06026-00
Unavailable
18
NUT
92801-6300-00
Unavailable
19
BOLT, HEXAGON
97017-06020-00
Unavailable
20
PLATE, PAWL
150-18352-00-00
Unavailable
21
SCREW,OVAL HEAD
92601-04012-00
Unavailable
22
WASHER,PLATE
90201-06046-00
Unavailable
23
SPRING,COMPRESSION
90501-05021-00
Unavailable
24
WASHER,SPEC'L SHAP
90209-06083-00
Unavailable
25
LINK, SHIFT
150-18335-00-00
Unavailable
26
SHAFT, SHIFTER
150-18318-00-00
Unavailable
27
FORK, SHIFT 1
152-18311-00-00
Unavailable
28
FORK, SHIFT 2
152-18312-00-00
Unavailable
29
FORK, SHIFT 3
152-18313-00-00
Unavailable
30
ROTOR
150-18316-00-00
Unavailable
31
CLIP, PAWL LOCK
150-18189-00-00
Unavailable
32
CIRCLIP(2R6)
99001-08600-00
$8.49
33
PLUG, BLIND
150-18328-00
Unavailable
