1962 Yamaha YDS2_63 (YDS2) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1962 Yamaha YDS2_63 (YDS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

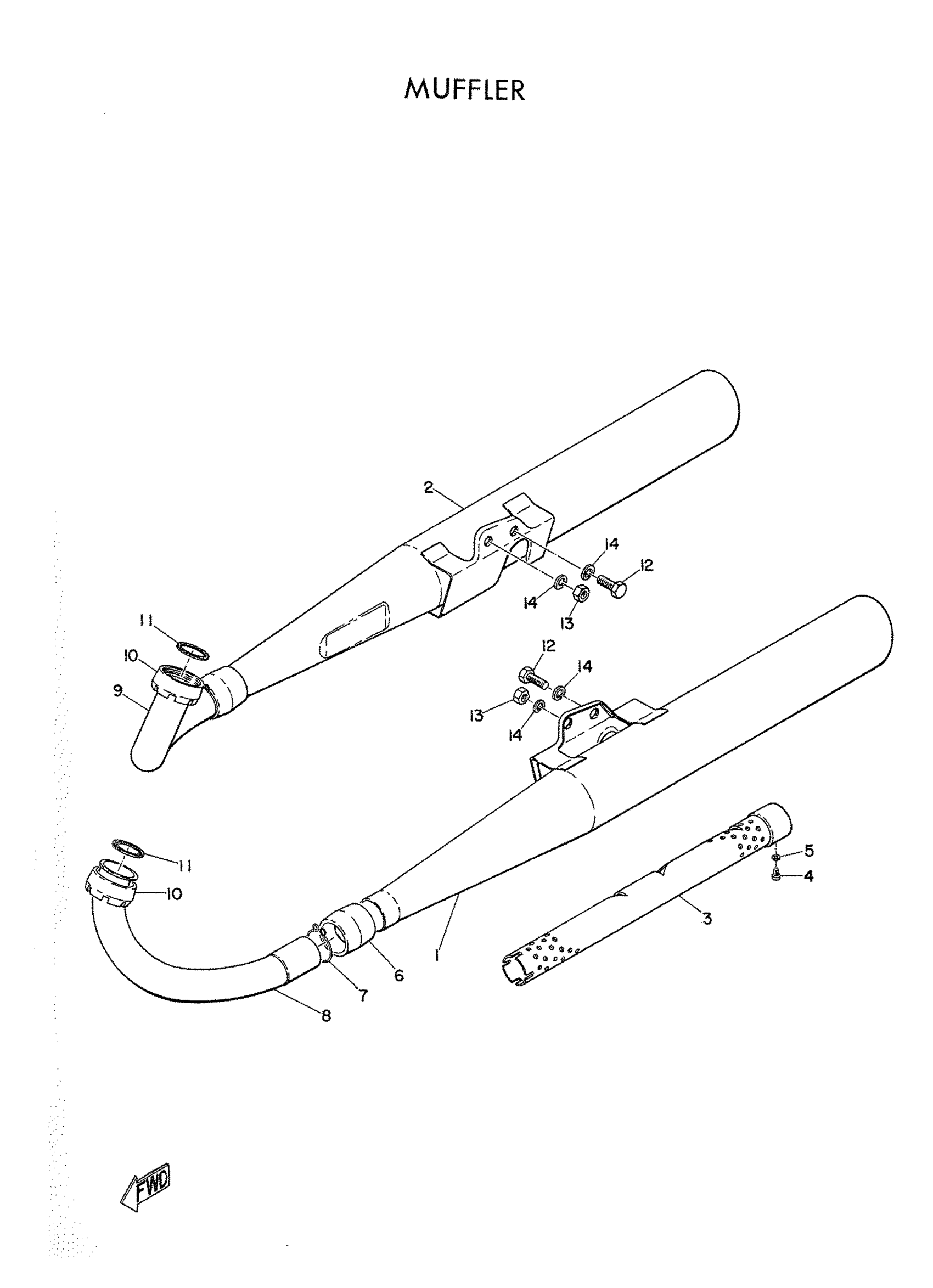

1962 Yamaha YDS2_63 (YDS2) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER (LH)

150-14710-00-00

1
Out of stock

2

MUFFLER (RH)

150-14720-00-00

1
Out of stock

3

SILENCER,EXHAUST

156-14753-00-00

1
Out of stock

4

GASKET, EXHAUST

98507-05008-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

GASKET, MUFFLER JOINT

150-14714-00-00

1
Out of stock

7

RING, STOPPER

150-14778-00-00

1
Out of stock

8

PIPE,EXHAUST L

156-14611-00-00

1
Out of stock

9

PIPE,EXHAUST R

156-14621-00-00

1
Out of stock

10

NUT,RING

157-14612-00-00

1
Out of stock

11

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

12

BOLT(6TD)

97017-10025-00

1
Out of stock

13

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock
