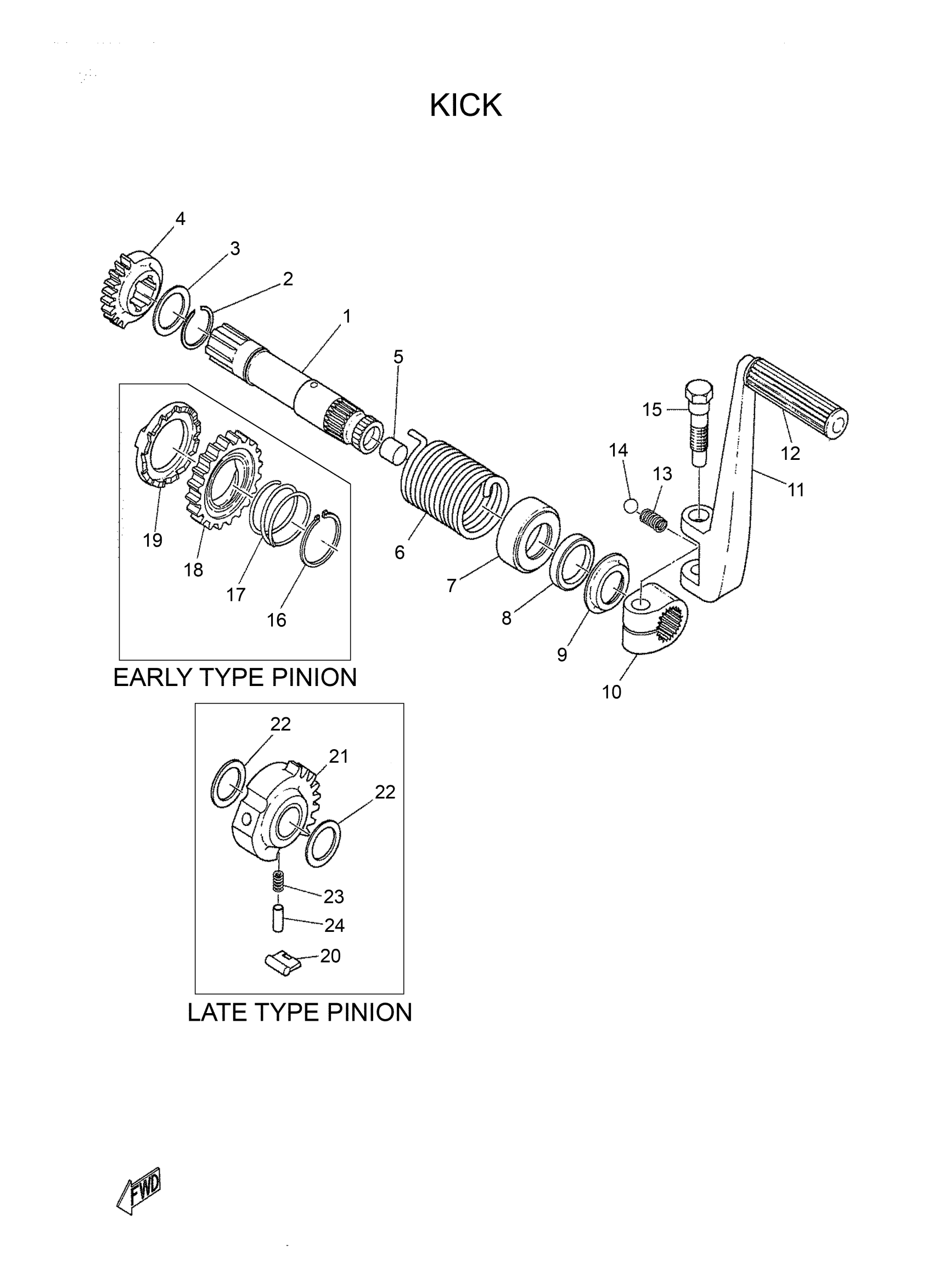

Yamaha YDS2 (YDS2_63) 152 1962 KICK Diagram

#

Description
Price

1

AXLE, KICK

152-15661-00-00

Unavailable

2

CIRCLIP, OUTER

93440-20002-00

Unavailable

3

WASHER, PLATE 1832514700

90201-20269-00

$7.49

4

GEAR,KICK

152-15641-01-00

Unavailable

5

PLUG, BLIND

147-15679-00-00

Unavailable

6

SPRING,TORSION

90508-35069-00

Unavailable

7

GUIDE, SPRING

146-15664-00-00

Unavailable

8

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

9

COVER, KICK AXLE

146-15662-00-00

Unavailable

10

BOSS,KICK CRANK

156-15621-00-00

Unavailable

11

CRANK,KICK

156-15611-00-00

Unavailable

12

COVER, KICK LEVER

156-15618-01-00

$7.99

13

SPRING,COMPRESSION

90501-14093-00

Unavailable

14

BALL

93501-04011-00

$8.49

15

BOLT, KICK CRANK

150-15623-00-00

Unavailable

16

CIRCLIP(4A6)

99009-30400-00

Unavailable

17

SPRING, KICK PINION

150-15364-00-00

Unavailable

18

GEAR, KICK PINION

150-15631-01-00

Unavailable

19

PAWL, KICK

150-15635-00-00

Unavailable

20

PAWL, KICK

152-15635-00-00

Unavailable

21

GEAR, KICK PINION

152-15631-01-00

Unavailable

22

WASHER,PLATE

90201-20268-00

Unavailable

23

SPRING,COMPRESSION

90501-05020-00

Unavailable

24

PIN,STRAIGHT

90250-05007-00

Unavailable
