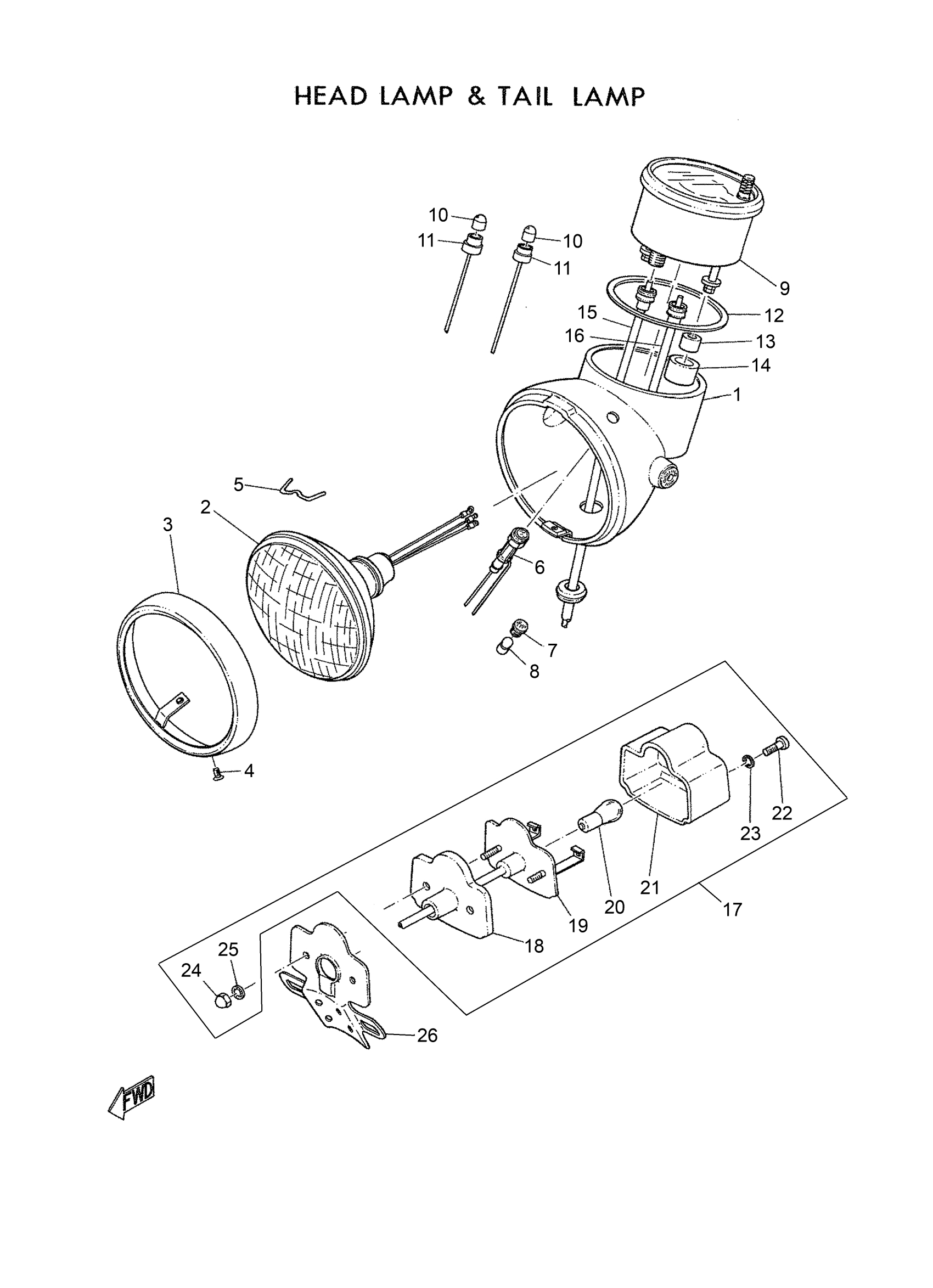

Yamaha YDS2 (YDS2_63) 152 1962 HEAD LAMP AND TAIL LAMP Diagram

#

Description

Price

1

HEAD LAMP BODY

152-84111-00-00

Unavailable

2

LANS ASSY

152-84120-60-00

Unavailable

3

RIM,HEADLIGHT

152-84115-01-00

Unavailable

4

SCREW, RIM FITTING

150-84125-00-00

Unavailable

5

SPRING, REFLECTOR SET

148-84324-00-00

$6.99

6

PILOT LAMP ASSY

150-83530-00-00

Unavailable

7

. LENS, PILOT

150-83532-00-00

Unavailable

8

BULB,(6V3W)

122-83516-10-00

Unavailable

9

SPEEDOMETER

152-83510-30-00

Unavailable

10

BULB,(6V3W)

122-83516-10-00

Unavailable

11

. SOCKET, METER

152-83538-00-00

Unavailable

12

DAMPER

152-83513-00-00

Unavailable

13

DAMPER

152-82526-00-00

Unavailable

14

DAMPER

152-83523-00-00

Unavailable

15

SPEEDOMETER CABLE ASSY

152-83550-00-00

Unavailable

16

TACHOMETER CABLE ASSY

152-83560-00-00

Unavailable

17

TAIL LAMP UNIT ASSY

152-84510-60-00

Unavailable

18

. COVER, TAILLIGHT

124-84516-60-00

Unavailable

19

. BASE, TAIL LAMP

152-84511-60-00

Unavailable

20

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

21

. LENS, TAILLIGHT

124-84521-60-00

Unavailable

22

SCREW,PAN HEAD

92503-04015-00

Unavailable

23

. WASHER

124-84522-60-00

Unavailable

24

WASHER, TOOTH

92990-06300-00

Unavailable

25

WASHER, TOOTH

92990-06300-00

Unavailable

26

BRACKET,LICENCE

152-84551-60-35

Unavailable
