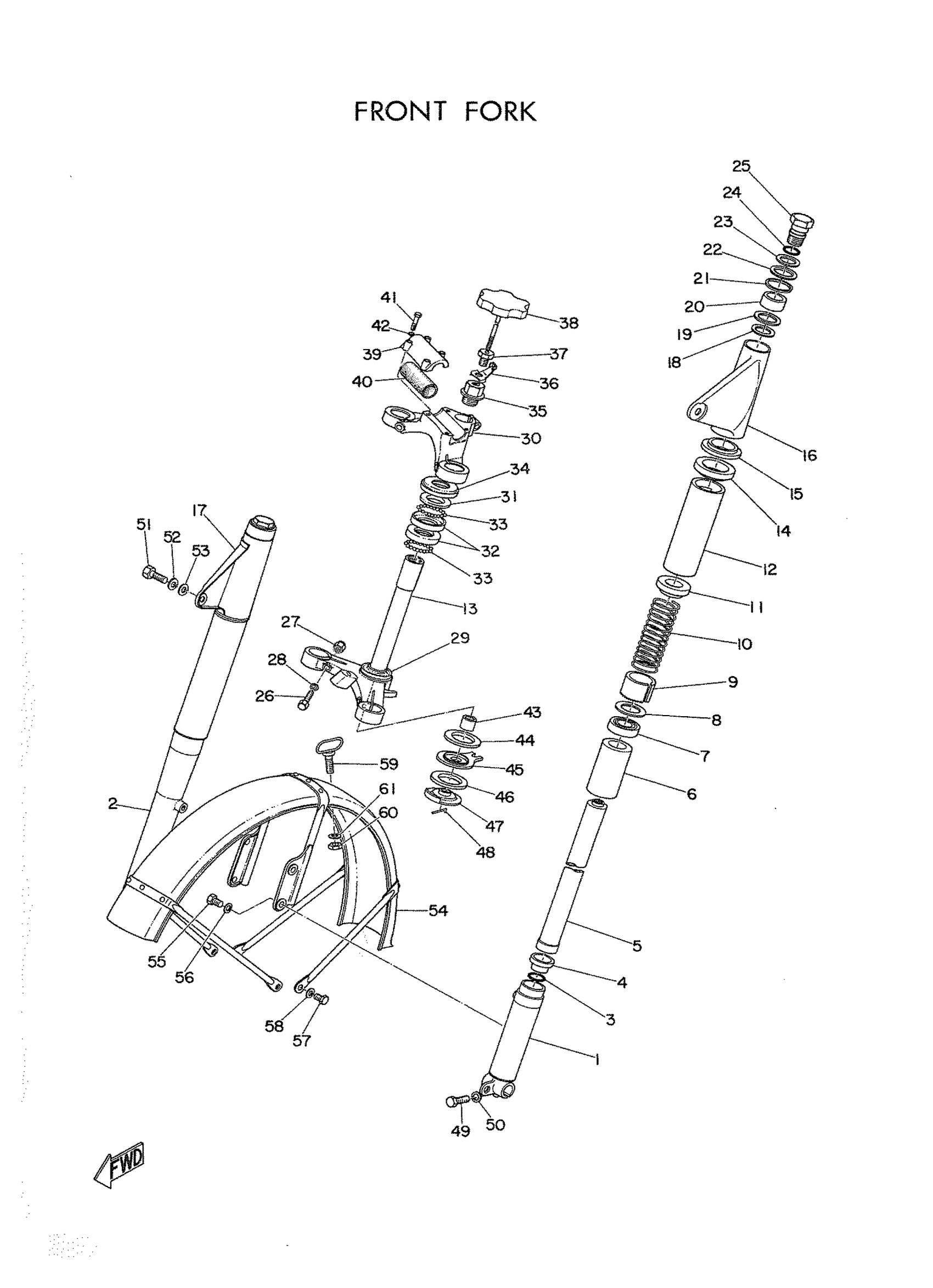

Yamaha YDS2 (YDS2_63) 152 1962 FRONT FORK AND FENDER Diagram

#

Description
Price

1

TUBE, OUTER (LH)

150-23126-00-00

Unavailable

2

TUBE, OUTER (RH)

150-23136-00-00

Unavailable

3

O-RING

146-23147-00-00

Unavailable

4

METAL, SLIDE

146-23125-00-00

Unavailable

5

TUBE, INNER

150-23124-00-00

Unavailable

6

NUT, OUTER TUBE

156-23127-00-00

Unavailable

7

OIL SEAL

156-23145-00-OO

Unavailable

8

SEAT, SPRING LOWER

146-23143-00-00

Unavailable

9

SEAL, DUST

146-23144-00-00

Unavailable

10

SPRING,FRONT FORK

156-23141-00-00

Unavailable

11

SEAT,SPRING UPPER

156-23142-00-00

Unavailable

12

COVER,LOWER 1

150-23123-00-81

Unavailable

13

UNDER BRACKET

146-23340-00-33

Unavailable

14

PACKING

150-23163-00-00

Unavailable

15

GUIDE, COVER UNDER

150-23116-00-00

Unavailable

16

COVER,UPPER 1

150-23121-00-81

Unavailable

17

COVER,UPPER 2

150-23131-00-81

Unavailable

18

WASHER

146-23139-00-00

Unavailable

19

PACKING

146-23138-00-00

Unavailable

20

COLLAR

146-23113-00-00

Unavailable

21

PACKING

146-23137-00-00

Unavailable

22

GUIDE, COVER UPPER

146-23115-00-00

Unavailable

23

WASHER, CAP

146-23112-00-00

Unavailable

24

PACKING(O-RING)

146-23114-00-00

Unavailable

25

BOLT, CAP

177-23111-00-00

Unavailable

26

BOLT, UNDER BRACKET (LH)

150-23346-00-00

Unavailable

27

NUT(3BM)

95314-10600-00

Unavailable

28

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

29

RACE, BALL 1

B6E-23411-00-00

Unavailable

30

CROWN, HANDLE

146-23435-00-00

Unavailable

31

RACE, BALL 1

B6E-23411-00-00

Unavailable

32

RACE, BALL 2

B6E-23412-00-00

Unavailable

33

BALL

93501-04011-00

Unavailable

34

COVER, BALL RACE 1

146-23415-00-00

Unavailable

35

BOLT,UNION

90401-24022-00

Unavailable

36

SPRING, DAMPER

150-23428-00-00

Unavailable

37

GUIDE, DAMPER

146-23424-00-00

Unavailable

38

SHAFT, HANDLE DAMPER

150-23419-00-00

Unavailable

39

HOLDER, HANDLE UPPER

146-23441-00-00

Unavailable

40

DAMPER, HANDLE

136-23445-00-00

Unavailable

41

BOLT, HANDLE FITTING 2

146-23452-00-00

Unavailable

42

WASHER, SPRING

92995-06100-00

Unavailable

43

HOLDER, DAMPER

148-23434-00-00

Unavailable

44

DAMPER, FRICTION

156-23425-00-00

Unavailable

45

PLATE,DAMPER 2

152-23422-00-47

Unavailable

46

DAMPER, FRICTION

146-23425-00-00

Unavailable

47

PLATE,DAMPER 1

169-23421-00-33

Unavailable

48

PIN, COTTER

156-23433-00-00

Unavailable

49

BOLT

97013-08035-00

Unavailable

50

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

51

BOLT (682)

97013-08025-00

Unavailable

52

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

53

WASHER, PLAIN

92990-08200-00

Unavailable

54

FRONT FENDER COMPLETE

152-21510-00-00

Unavailable

55

BOLT, HEXAGON

97013-08016-00

Unavailable

56

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

57

BOLT

97085-06010-00

Unavailable

58

WASHER, SPRING

92995-06100-00

Unavailable

59

HOLDER, CABLE

152-21518-00-00

Unavailable

60

NUT, HEXAGON

95380-06600-00

Unavailable

61

WASHER, SPRING

92995-06100-00

Unavailable
