1962 Yamaha YDS2_63 (YDS2) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1962 Yamaha YDS2_63 (YDS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

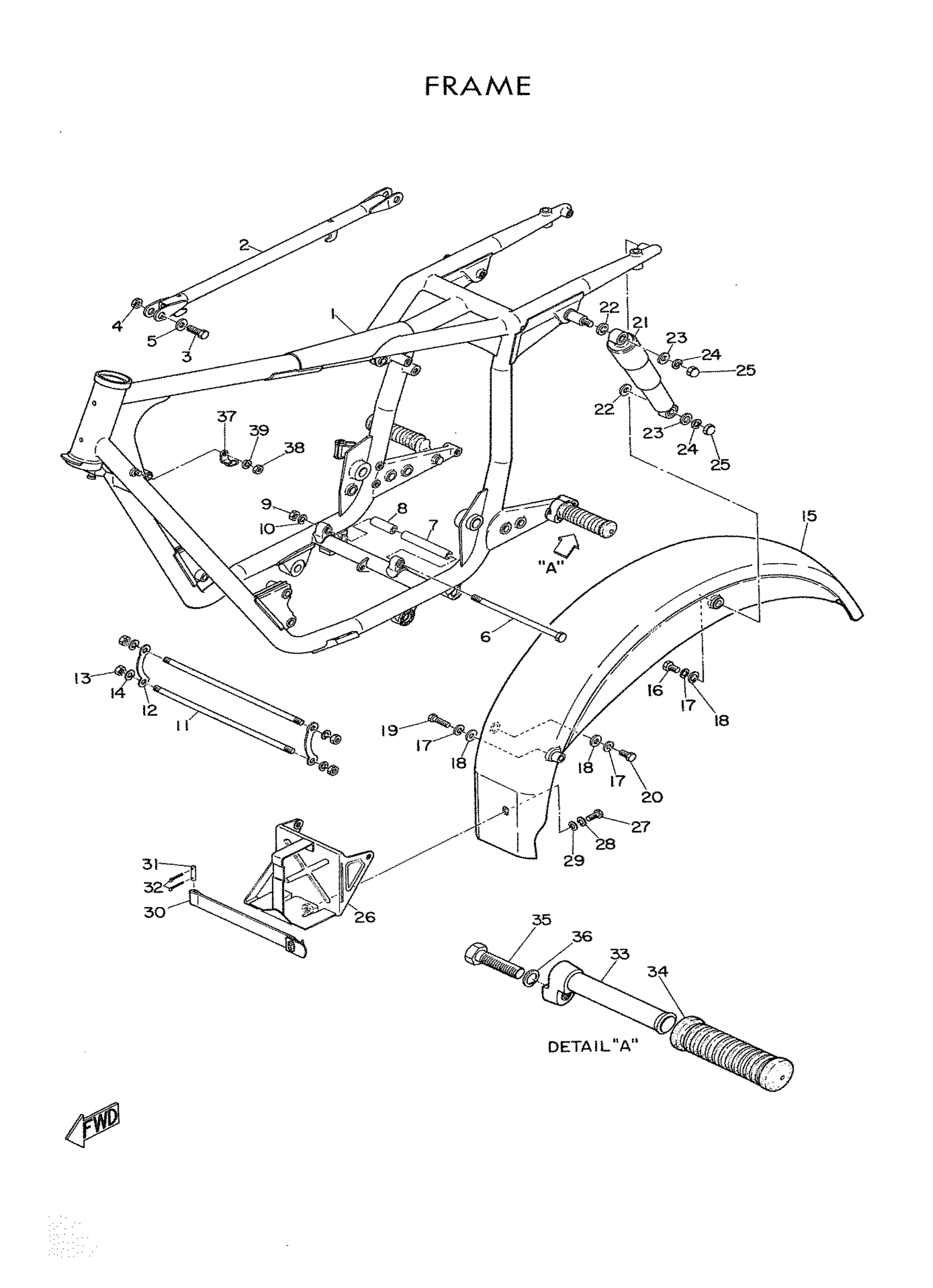

1962 Yamaha YDS2_63 (YDS2) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME ASSY

152-21110-00-00

1
Out of stock

2

PIPE, TENSION

152-21114-00-00

1
Out of stock

3

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

4

NUT(6L2)

95333-08600-00

1

$3.20

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

BOLT

90101-10082-00

1
Out of stock

7

SPACER, ENGINE MOUNT (LH)

152-15517-00-00

1
Out of stock

8

SPACER, ENGINE MOUNT (RH)

152-15327-00-00

1
Out of stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

BOLT,STUD

90116-08151-00

1
Out of stock

12

WASHER, SPRING

150-21491-00-00

1
Out of stock

13

NUT(6L2)

95333-08600-00

1

$3.20

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

REAR FENDER

152-21610-00-00

1
Out of stock

16

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

REAR CUSHION ASSY

152-22210-00-00

1
Out of stock

22

WASHER,PLATE

90201-14219-00

1
Out of stock

23

WASHER 2

150-22159-00-00

1
Out of stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

25

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

26

BRACKET, BATTERY

152-21344-00-00

1
Out of stock

27

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

28

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

29

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

30

BAND, BATTERY

152-82131-00-00

1
Out of stock

31

PIN, BATTERY BAND

152-82132-00-00

1
Out of stock

32

PIN, COTTER

91401-10010-00

—

$0.17

In stock

33

FOOTREST, REAR

150-27431-00-00

1
Out of stock

34

COVER, FOOTREST

150-27433-00-00

1
Out of stock

35

BOLT

97013-10040-00

1
Out of stock

36

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

37

HOLDER, CLUTCH WIRE

152-21163-00-00

1
Out of stock

38

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
