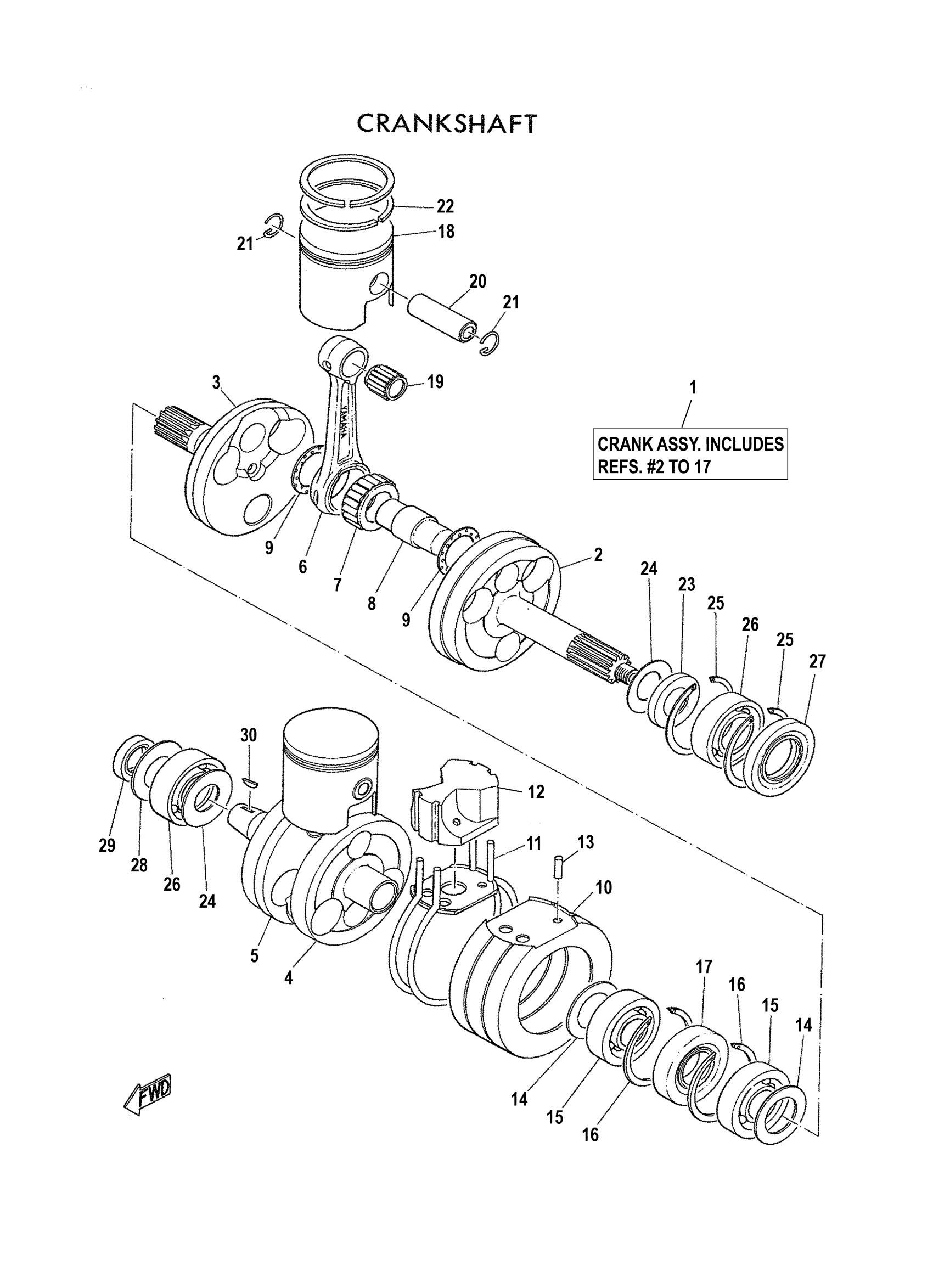

Yamaha YDS2 (YDS2_63) 152 1962 CRANKSHAFT Diagram

#

Description

Price

1

CRANKSHAFT ASSEMBLY

152-11400-00-00

Unavailable

2

. CRANK 1 (LH)

152-11412-00-00

Unavailable

3

. CRANK 1 (RH)

152-11422-00-00

Unavailable

4

. CRANK 2 (LH)

152-11432-00-00

Unavailable

5

. CRANK 2 (RH)

152-11442-00-00

Unavailable

6

. ROD, CONNECTING

152-11651-00-00

Unavailable

6

. ROD, CONNECTING

152-11651-01-00

Unavailable

7

BEARING, CYLINDER.#10

93310-42417-00

Unavailable

7

BEARING, CYLINDER.#10

93310-42417-00

Unavailable

8

. PIN, CRANK

150-11681-00-00

Unavailable

8

. PIN, CRANK

152-11681-00-00

Unavailable

9

WASHER (152-11685-00)

90209-24073-00

$14.99

10

COVER,CRANK

148-11511-01-00

Unavailable

11

SEAL, CRANK COVER 1

148-11512-00-00

Unavailable

12

. METAL, FILLER

152-11541-00-00

Unavailable

13

PIN,DOWEL (137)

93604-14012-00

Unavailable

14

SHIM,CRANK 3

146-11563-00-00

Unavailable

15

BEARING

93306-20532-00

Unavailable

16

. CIRCLIP

93450-52010-00

Unavailable

17

. OIL SEAL, SW-TYPE

93103-25010-00

Unavailable

18

PISTON STD

152-11631-00-96

Unavailable

18

PISTON 1 O/S 0.25

152-11635-00-00

Unavailable

18

PISTON 2 O/S 0.50

152-11636-00-00

Unavailable

19

BEARING, SMALL END

93310-21505-00

Unavailable

20

PIN, PISTON

49A-11633-00-00

Unavailable

21

CIRCLIP,INNER

93450-16024-00

Unavailable

22

PISTON RINGSET STD

150-11601-00-00

Unavailable

22

PISTON RINGSET 1ST

372-11601-10-00

Unavailable

22

PISTON RINGSET 2ND

372-11601-20-00

Unavailable

23

SHIM, CRANK 1

144-11561-00-00

Unavailable

24

SHIM,CRANK 2

146-11562-00-05

Unavailable

25

CIRCLIP,INNER

93450-52014-00

Unavailable

26

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

27

OIL SEAL

93103-30013-00

Unavailable

28

WASHER, BEARING COVER

148-11565-00-00

Unavailable

29

OIL SEAL (20X30X6-648)

93101-20048-00

Unavailable

30

KEY,WOODRUFF

90280-04005-00

Unavailable
