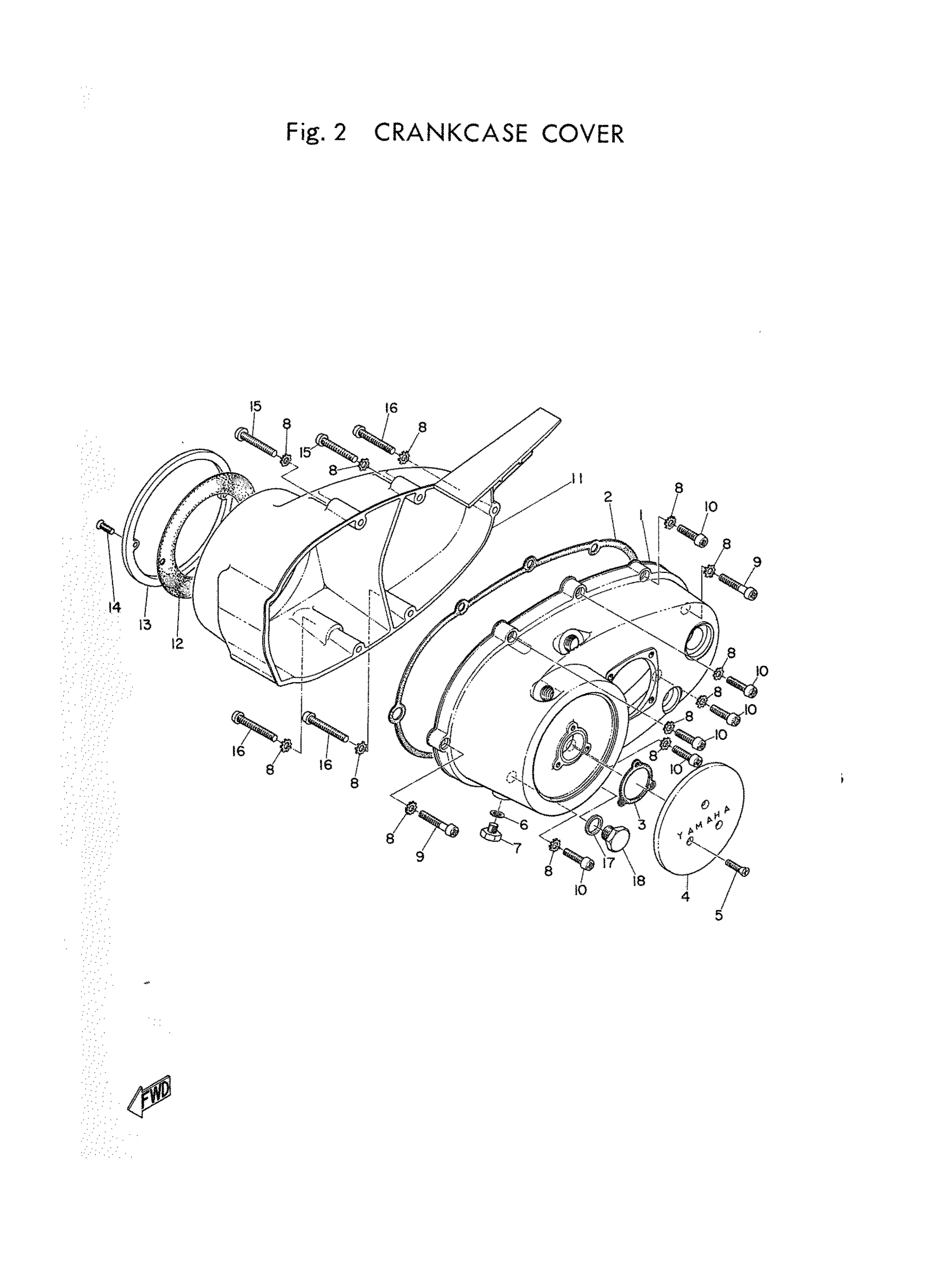

Yamaha YDS2 (YDS2_63) 152 1962 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE (LH)

152-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER

152-15451-00-00

Unavailable

3

GASKET 1

156-15455-00-00

Unavailable

4

COVER, CRANKCASE (LH)

150-15415-00-00

Unavailable

5

SCREW

92601-04018-00

Unavailable

6

GASKET, OIL LEVEL

148-15382-00-00

Unavailable

7

PLUG,OIL LEVEL

146-15362-00-00

Unavailable

8

WASHER, TOOTH

92901-06400-00

Unavailable

9

SCREW, PAN

98507-06035-00

$8.49

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

COVER, CRANKCASE (RH)

152-15421-00-00

Unavailable

12

GASKET, 2

150-15465-00-00

Unavailable

13

COVER, CRANKCASE COVER (RH)

150-15425-00-00

Unavailable

14

SCREW,OVAL HEAD

92601-04012-00

Unavailable

15

SCREW PAN HEAD

98580-06545-00

$5.60

16

SCREW PAN HEAD

98580-06040-00

Unavailable

17

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

18

PLUG, DRAIN

15215351-00-00

Unavailable
