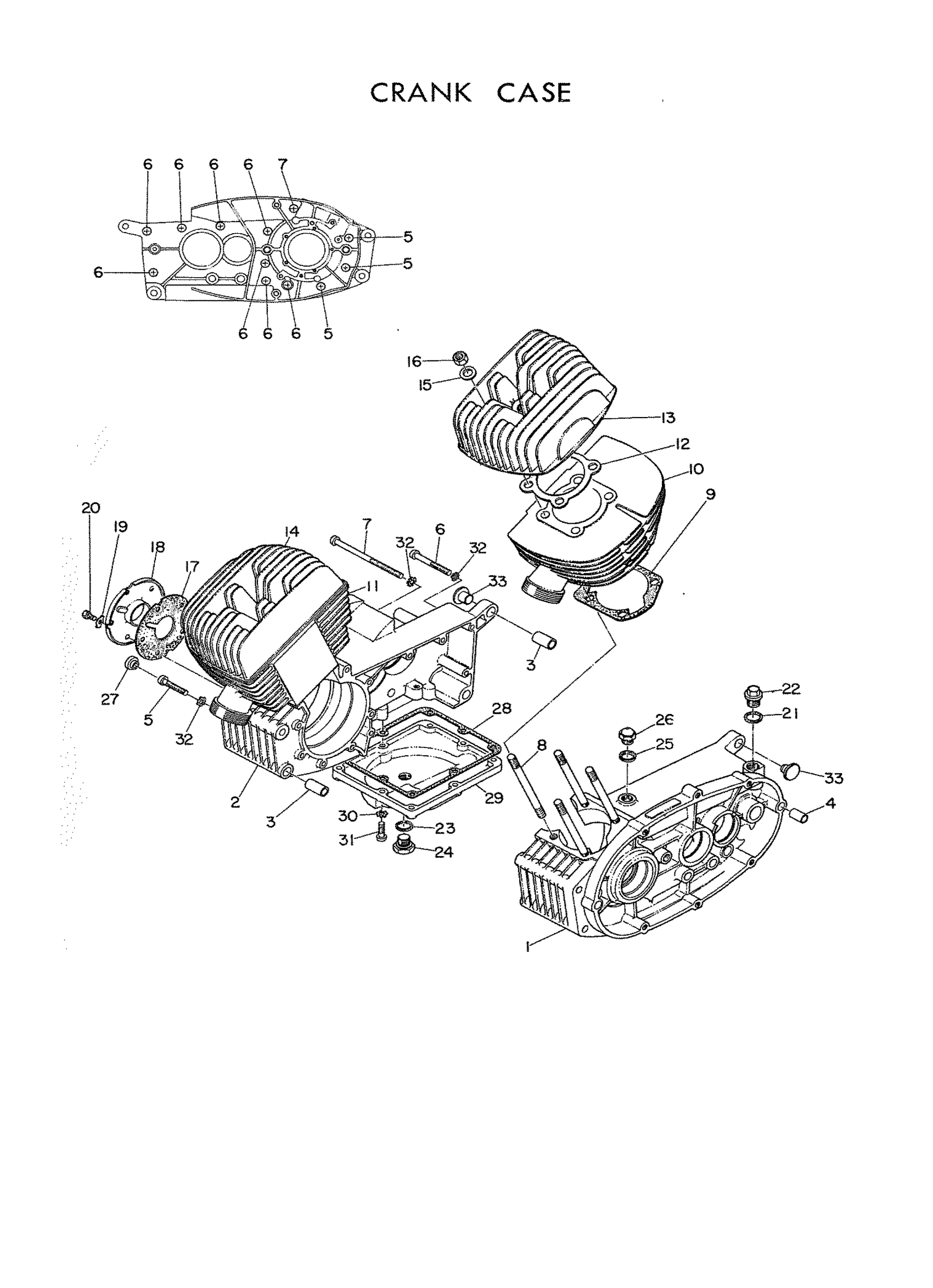

Yamaha YDS2 (YDS2_63) 152 1962 CRANKCASE AND CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASY 1

152-15110-00-00

Unavailable

2

CRANKCASE (RH)

152-15121-00-00

Unavailable

3

PIN, DOWEL

91810-08025-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

7

SCREW, PAN HEAD

92501-06105-00

Unavailable

8

BOLT,STUD

90116-08076-00

Unavailable

9

GASKET CYLINDER

150-11351-00-00

Unavailable

10

CYLINDER (LH)

152-11311-00-00

Unavailable

11

CYLINDER (RH)

152-11321-00-00

Unavailable

12

GASKET CYLINDER HEAD

150-11181-00-00

Unavailable

13

HEAD, CYLINDER (LH)

152-11111-00-00

Unavailable

14

HEAD, CYLIDER (RH)

152-11121-00-00

Unavailable

15

WASHER, PLAIN

92903-08200-00

Unavailable

16

NUT, HEXAGON

90170-08031-00

Unavailable

17

GASKET, OIL SEAL HOUSING

150-15369-00-00

Unavailable

18

HOUSING, OIL SEAL

150-15359-00-00

Unavailable

19

WASHER,LOCK

90215-05010-00

Unavailable

20

SCREW

92503-05008-00

Unavailable

21

GASKET, BREATHER

159-15374-00-00

Unavailable

22

BREATHER

152-15371-00-00

Unavailable

23

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

24

PLUG, STRAIGHT SCREW

90340-14119-00

Unavailable

25

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

26

CLAMP

90461-04010-00

Unavailable

27

GROMMET

90480-12011-00

Unavailable

28

GASKET, SHFTR COVER

150-15459-00-00

Unavailable

29

COVER,SHIFTER 1

204-15419-00-00

Unavailable

30

WASHER, TOOTH

92901-06400-00

Unavailable

31

SCREW PAN HEAD

98580-06020-00

Unavailable

32

WASHER, TOOTH

92901-06400-00

Unavailable

33

PLUG, BLIND

150-15169-00-00

Unavailable
