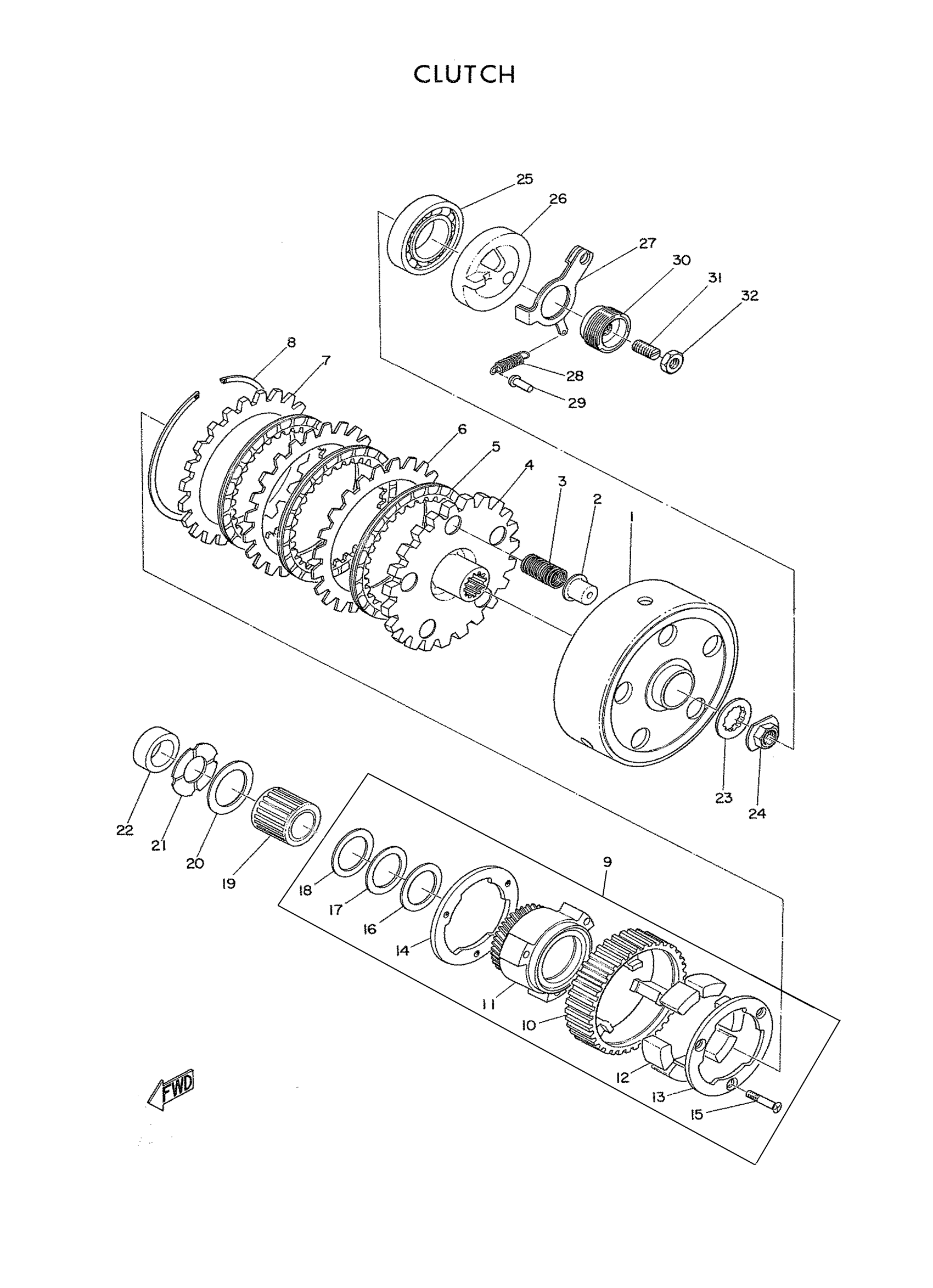

Yamaha YDS2 (YDS2_63) 152 1962 CLUTCH Diagram
#
1
HOUSING, CLUTCH
152-16311-00-00
Unavailable
2
HOUSING, SPRING
152-16335-00-00
Unavailable
3
SPRING,COMPRESSION
90501-20117-00
Unavailable
4
CLUTCH ASY
148-16301-00-00
Unavailable
4
CLUTCH ASY
148-16301-00-00
Unavailable
5
PLATE, FRICTION
148-16321-00-00
Unavailable
6
PLATE PRESSURE 1
148-16324-00-00
Unavailable
7
PLATE PRESSURE 2
148-16325-00-00
Unavailable
8
CLIP, HOUSING
93451-05006-00
Unavailable
9
PRI DRV GEAR ASY
148-16110-01-00
Unavailable
10
PRI DRV GEAR ASY
148-16110-01-00
Unavailable
11
PRI DRV GEAR ASY
148-16110-01-00
Unavailable
12
. ABSORBER
146-16123-00-00
Unavailable
13
. PLATE, SIDE 1
146-16118-00-00
Unavailable
14
. PLATE, SIDE 2
146-16128-00-00
Unavailable
15
SCREW,FLAT HEAD
92701-05025-00
Unavailable
16
. WASHER, THRUST OUTER
148-16123-00-00
Unavailable
17
. WASHER, THRUST OUTER
148-16123-00-00
Unavailable
18
. PLATE, THRUST OUTER
148-16124-00-00
Unavailable
19
BEARING
93312-62001-00
Unavailable
20
WASHER,PLATE
90201-27295-00
Unavailable
21
PLATE, THRUST INNER
148-16114-00-00
Unavailable
22
COLLAR, DISTANCE
148-16136-00-00
Unavailable
23
WASHER, LOCK
148-16135-00-00
Unavailable
24
NUT,SPEC'L SHAPE
90179-12131-00
Unavailable
25
BEARING
93306-00601-00
Unavailable
26
CROWN, PUSH
146-16348-00-00
Unavailable
27
LEVER, PUSH
150-16342-00-00
Unavailable
28
SPRING TENSION 132163450000
90506-10019-00
Unavailable
29
HOOK, SPRING
156-16346-00-00
Unavailable
30
SCREW, PUSH
150-16341-00-00
Unavailable
31
BOLT,SET
90113-08015-00
Unavailable
32
NUT,HEXAGON
90170-08026-00
Unavailable
