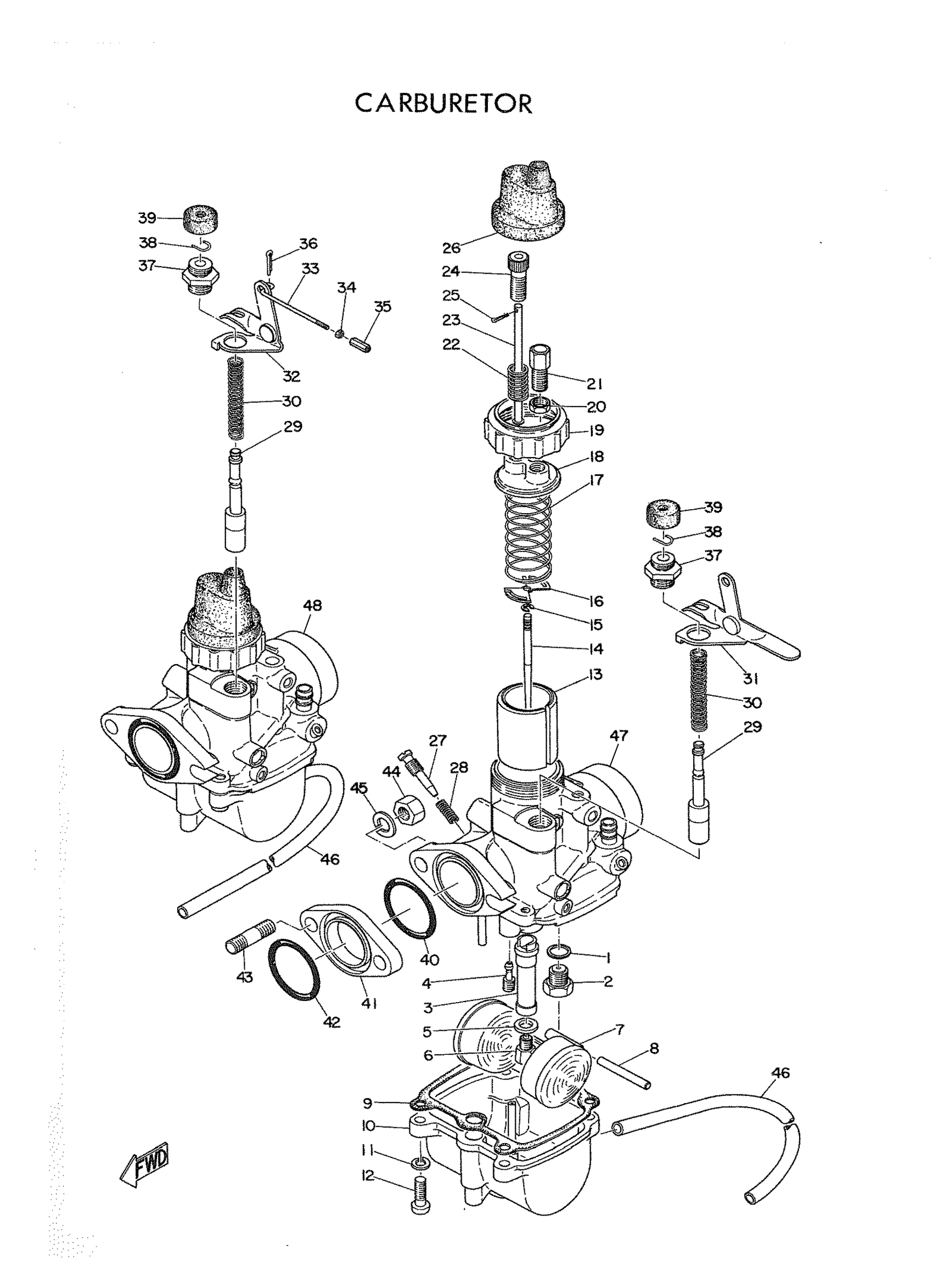

Yamaha YDS2 (YDS2_63) 152 1962 CARBURETOR Diagram

#

Description
Price

1

WASHER, VALVE SEAT

127-14195-00-00

$7.99

2

NEEDLE VALVE ASSEMBLY

137-14190-15-00

Unavailable

3

NOZZLE, MAIN

156-14141-30-00

Unavailable

4

. JET, PILOT #30

127-14142-30-00

Unavailable

5

WASHER,MAIN JET

137-14153-00-00

$7.99

6

JET, MAIN (#60)

137-14143-12-00

Unavailable

6

JET, MAIN (#70)

137-14143-14-00

Unavailable

6

. JET, MAIN #80

137-14143-16-00

Unavailable

6

. JET, MAIN #90

137-14143-18-00

Unavailable

6

JET, MAIN #100

137-14143-20-00

Unavailable

7

FLOAT

152-14185-00-00

Unavailable

8

PIN, FLOAT

127-14186-00-00

$6.65

9

GASKET, FLOAT CHAMBER

152-14184-00-00

Unavailable

10

BODY, FLOAT CHAMBER

152-14181-00-00

Unavailable

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SCREW,PAN HEAD

92503-04015-00

Unavailable

13

VALVE, THROTTLE

152-14112-20-00

Unavailable

14

NEEDLE

152-14116-06-00

Unavailable

15

CLIP

137-14137-00-00

Unavailable

16

. SEAT, SPRING

137-14136-00-00

Unavailable

17

SPRING, THRTL VALVE

152-14131-00-00

Unavailable

18

TOP, MIXING CHAMBER

137-14158-00-00

Unavailable

19

CAP, MIXING CHAMBER

146-14168-00-00

Unavailable

20

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

21

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

22

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

23

BAR, THROTTLE

152-14114-00-00

Unavailable

24

SCREW, THRTL STOP

127-14121-00-00

Unavailable

25

PIN, COTTER

91401-10010-00

Unavailable

26

CAP

146-14169-00-00

Unavailable

27

SCREW, AIR ADJUSTING

137-14123-00-00

Unavailable

28

. SPRING, AIR ADJUSTING

137-14134-00-00

Unavailable

29

PLUNGER, STARTER

152-14171-00-00

Unavailable

30

SPRING, PLUNGER

152-14135-00-00

Unavailable

31

LEVER, STARTER LH

152-14175-00-00

Unavailable

32

LEVER, STARTER RH

152-14176-00-00

Unavailable

33

ROD, STARTER LEVER

152-14177-00-00

Unavailable

34

NUT

152-14192-00-00

Unavailable

35

NUT, ROD ADJUSTING

152-14191-00-00

Unavailable

36

CLIP,PIPE

152-14139-01-00

Unavailable

37

CAP, PLUNGER

152-14174-00-00

Unavailable

38

. CLIP, PLUNGER

152-14138-00-00

Unavailable

39

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

40

O-RING

152-14147-00-00

Unavailable

41

JOINT, CARBURETOR

152-13555-00-00

Unavailable

42

O-RING (624)

93210-24108-00

Unavailable

43

BOLT,STUD

90116-06020-00

Unavailable

44

NUT, HEXAGON

95380-06600-00

Unavailable

45

WASHER, SPRING

92995-06100-00

Unavailable

46

PIPE, OVERFLOW

152-14196-00-00

Unavailable

47

CARBURETOR ASY 1

152-14101-00-00

Unavailable

48

CARBURETOR ASSEMBLY RH

152-14102-01-00

Unavailable
