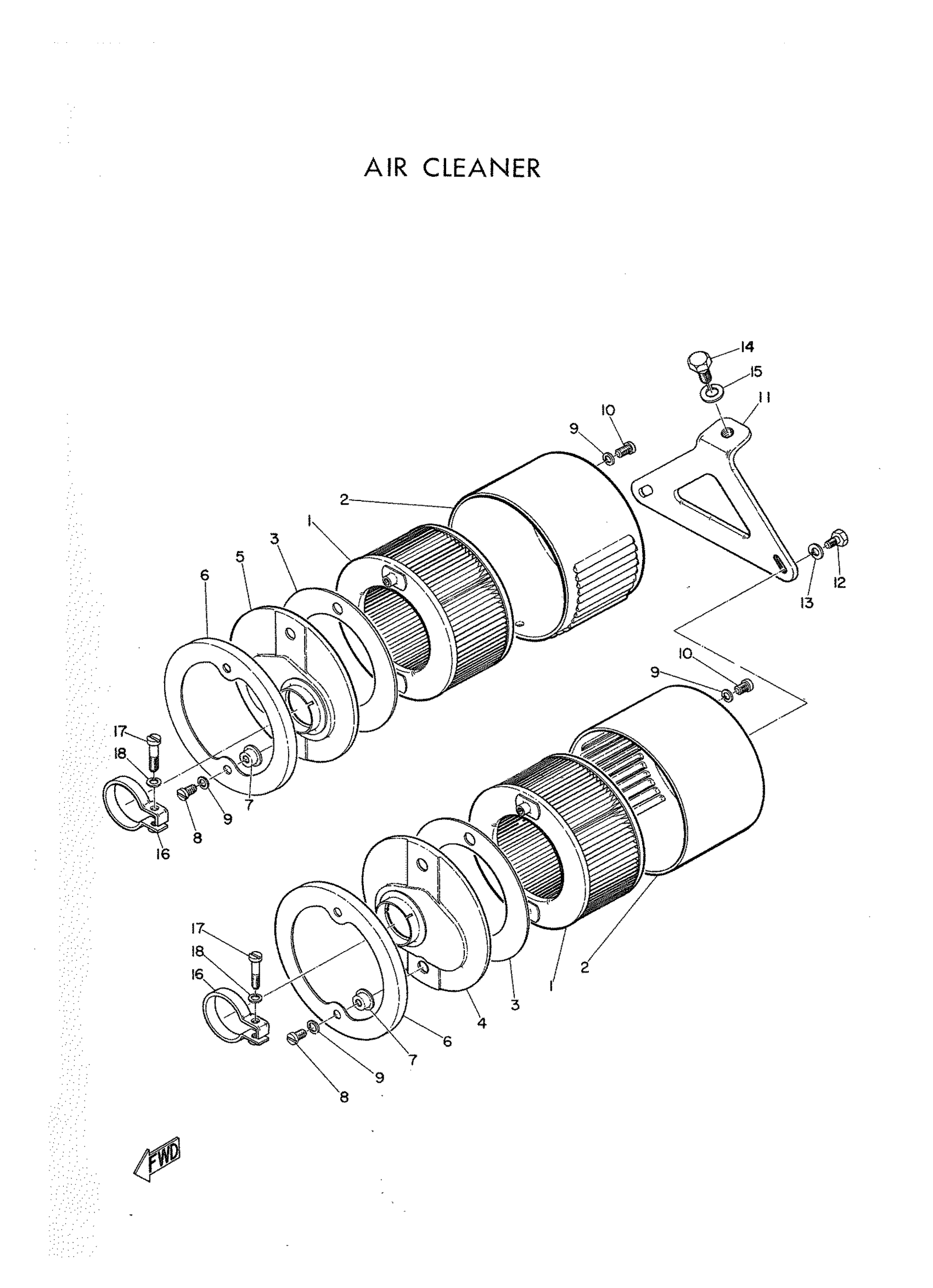

Yamaha YDS2 (YDS2_63) 152 1962 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLNR

152-14451-00-00

Unavailable

2

CASE, AIR CLEANER

152-14111-00-00

Unavailable

3

SEAL, CLEANER CASE

152-14452-00-00

Unavailable

4

COVER, CASE RH

152-14418-00-00

Unavailable

5

COVER, CASE RH

152-14418-00-00

Unavailable

6

CAP, CASE

150-14412-00-00

Unavailable

7

COLLAR, DISTANCE

150-14443-00-00

Unavailable

8

SCREW PAN HEAD

98580-06010-00

$5.75

9

WASHER, SPRING

92995-06100-00

$2.95

10

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

11

STAY, AIR CLEANER

152-14458-00-00

Unavailable

12

BOLT(3JP)

97017-06010-00

$2.44

13

WASHER, SPRING

92995-06100-00

$2.95

14

BOLT, HEXAGON

97013-08016-00

$1.24

15

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

16

BAND, CLEANER FITTING

150-14455-00-00

Unavailable

17

SCREW, PAN HEAD

92503-05025-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
