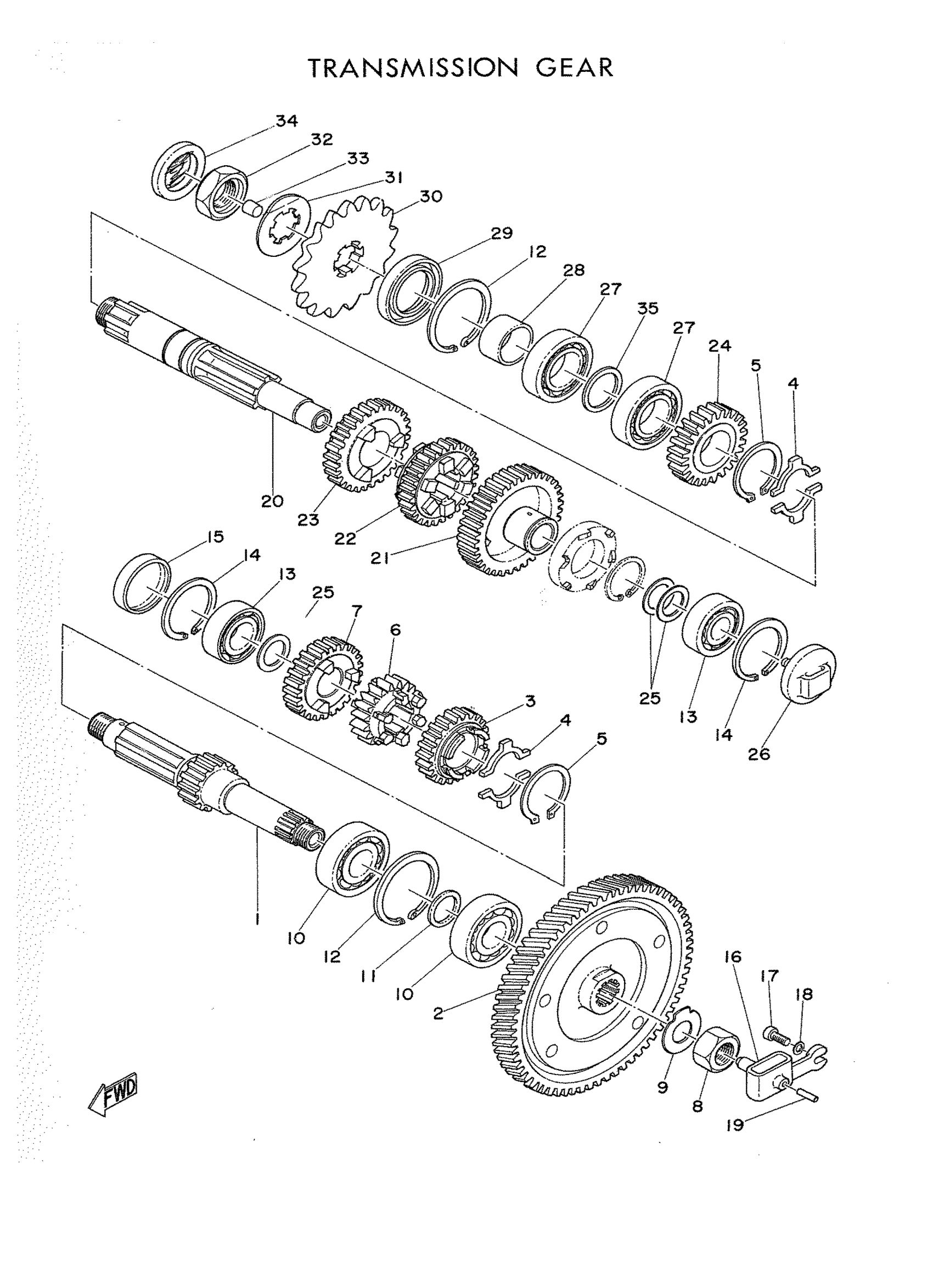

Yamaha YD3 (YDS2_1964) 148 1962 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

148-17411-01-00

Unavailable

2

PRIMARY DRIVEN GEAR COMP

148-16150-00-00

Unavailable

3

GEAR, 3RD PINION

148-17131-01-00

Unavailable

4

PLATE, SETTING

148-17115-00-00

Unavailable

5

CLIP, GEAR HOLD

148-17117-00-00

Unavailable

6

GEAR, 2ND PINION

148-17121-01-00

Unavailable

7

GEAR, 4TH PINION

148-17141-01-00

Unavailable

8

NUT,HEXAGON

90170-16081-00

Unavailable

9

WASHER, LOCK

148-16175-00-00

Unavailable

10

BEARING(1YW)

93306-20461-00

$39.99

11

SHIM

146-17418-00-00

Unavailable

12

CIRCLIP

93420-47001-00

Unavailable

13

BEARING (7X9)

93306-20327-00

$38.99

14

CIR-CLIP (70R)

93420-40064-00

Unavailable

15

PLUG, BLIND

146-17481-00-00

Unavailable

16

BUCKET, OIL

146-17488-00-00

Unavailable

17

SCREW, PAN

98517-05012-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

AXLE, DRIVE

148-17421-01-00

Unavailable

21

GEAR, 1ST WHEEL

148-17211-01-00

Unavailable

22

GEAR, 3RD WHEEL

148-17231-01-00

Unavailable

23

GEAR, 2ND WHEEL

148-17221-01-00

Unavailable

24

GEAR, 4TH WHEEL

148-17241-01-00

Unavailable

25

SHIM 1

148-17417-00-08

Unavailable

26

BUCKET, OIL

150-17488-00-00

Unavailable

27

BEARING(1FF)

93306-00519-00

Unavailable

28

COLLAR, DISTANCE

148-17462-00-00

Unavailable

29

OIL SEAL

93101-32017-00

Unavailable

30

SPROCKET, DRIVE

148-17461-50-00

Unavailable

30

SPROCKET, DRIVE

148-17461-60-00

Unavailable

30

SPROCKET, DRIVE

148-17461-70-00

Unavailable

30

SPROCKET, DRIVE

148-17461-80-00

Unavailable

31

WASHER, LOCK

148-17464-00-00

Unavailable

32

NUT, LOCK

148-17463-00-00

Unavailable

33

PLUG,TAPER

90336-09002-00

Unavailable

34

SEAL, DRIVE AXLE

146-17465-00-00

Unavailable

35

SHIM, DRIVE AXLE

148-17427-00-00

Unavailable
