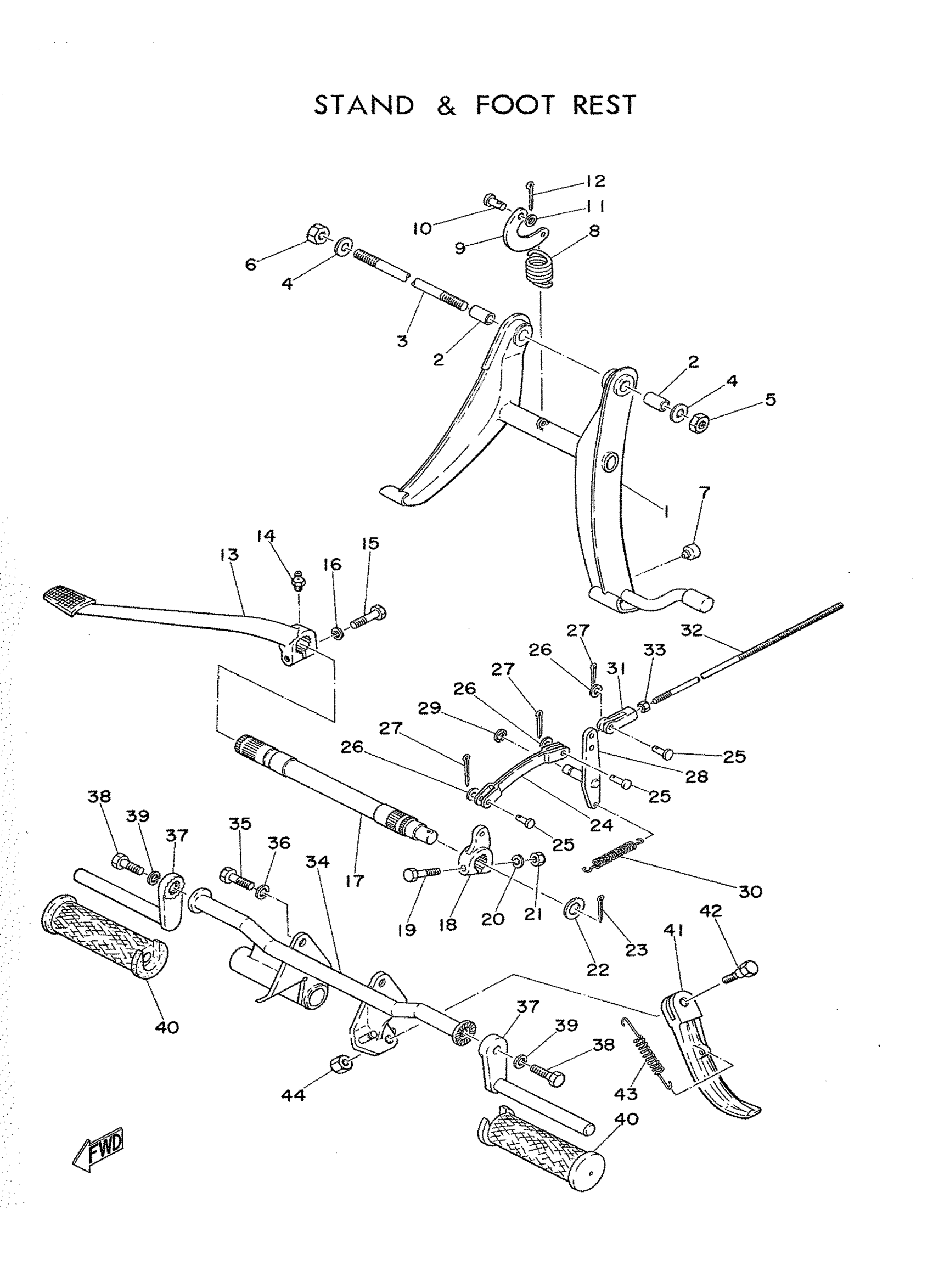

Yamaha YD3 (YDS2_1964) 148 1962 STAND AND FOOTREST Diagram

#

Description
Price

1

MAIN STAND

146-27111-00-00

Unavailable

2

COLLAR, MAIN STAND

146-27113-00-00

Unavailable

3

BOLT,STUD

90116-10096-00

Unavailable

4

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

5

NUT, SELF LOCKING

90185-10031-00

Unavailable

6

NUT (682)

95380-10700-00

Unavailable

7

STOPPER, MAIN STAND

146-27114-00-00

Unavailable

8

SPRING, MAIN STAND

146-27116-00-00

Unavailable

9

LINK, MAIN STAND

146-27115-00-00

Unavailable

10

PIN, JOINT

146-27228-00-00

Unavailable

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

PIN, COTTER

91490-20025-00

$1.99

13

PEDAL, BRAKE

148-27211-00-00

Unavailable

14

NIPPLE, GREASE

93700-06M03-00

Unavailable

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER, SPRING

92995-06100-00

Unavailable

17

SHAFT, BRAKE PEDAL

148-27212-00-00

Unavailable

18

LINK, BRAKE

148-27215-00-00

Unavailable

19

BOLT (682)

97095-06040-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable

22

WASHER PLATE 148272190000

90201-14215-00

Unavailable

23

PIN COTTER

91490-30025-00

Unavailable

24

JOINT, BRAKE

146-27223-00-00

Unavailable

25

PIN, JOINT

146-27228-00-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

27

PIN, COTTER (648)

91490-20015-00

Unavailable

28

LINK

148-27225-00-00

Unavailable

29

CIRCLIP

99080-07600-00

Unavailable

30

SPRING, PEDAL RETURN

148-27216-00-00

Unavailable

31

JOINT, BRAKE

146-27222-00-00

Unavailable

32

ROD, BRAKE

148-27231-00-00

Unavailable

33

NUT(650)

95380-06700-00

Unavailable

34

FOOTREST

148-27410-00-00

Unavailable

35

BOLT, HEXAGON

97013-08020-00

Unavailable

36

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

37

ARM, FOOTREST

146-27411-00-00

Unavailable

38

BOLT(N02)

97070-10035-00

Unavailable

39

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

40

COVER, FOOTREST

146-27413-00-00

Unavailable

41

STAND, SIDE

146-27311-00-00

Unavailable

42

BOLT

90109-08185-00

Unavailable

43

SPRING TENSION 150273160000

90506-25047-00

Unavailable

44

. NUT

95380-08700-00

Unavailable
