- YD3 (YDS2_1964) 148 1962
REAR WHEEL

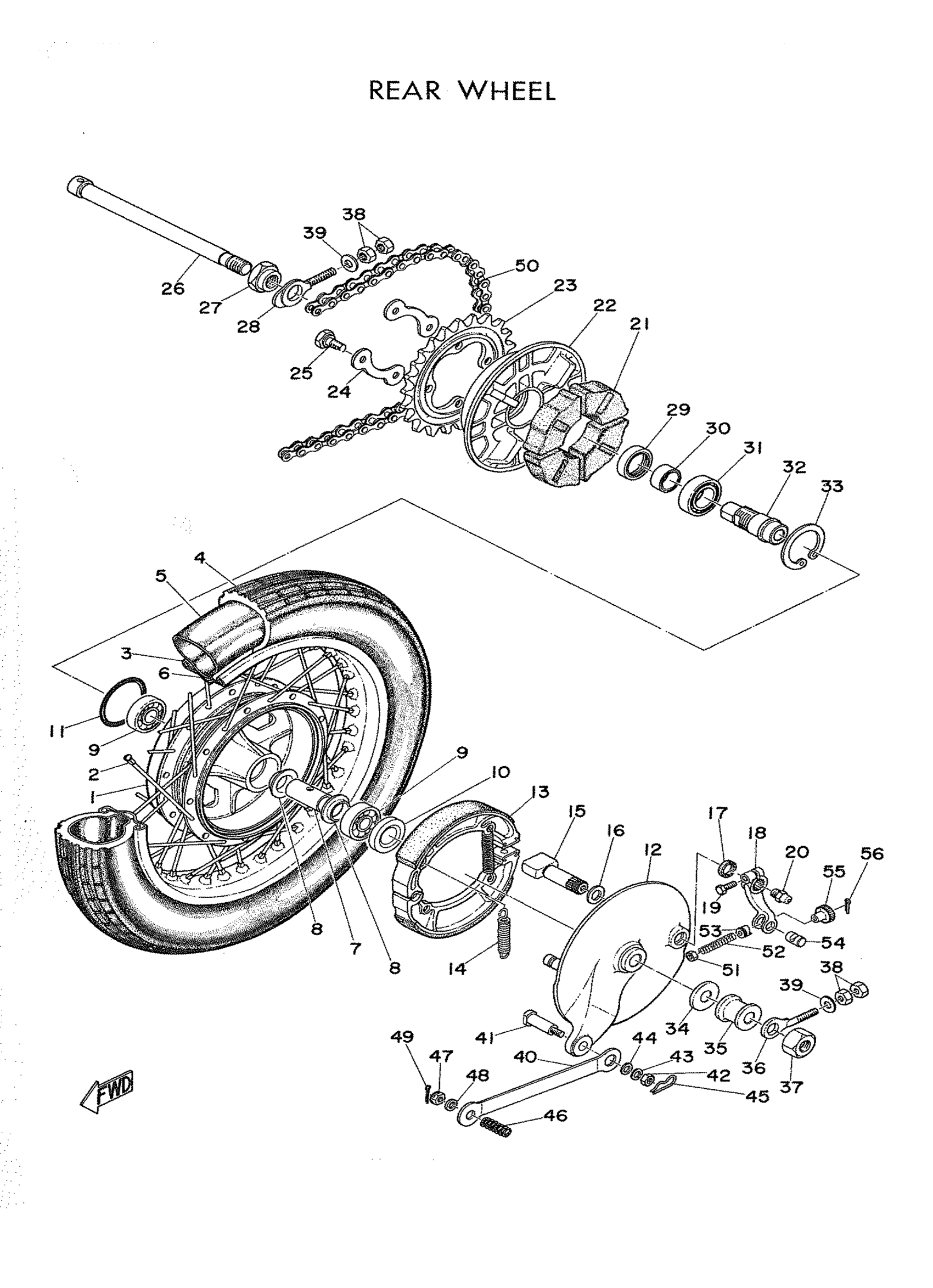

Yamaha YD3 (YDS2_1964) 148 1962 REAR WHEEL Diagram
#
1
HUB, REAR
148-25311-00-00
Unavailable
2
SPOKE SET, REAR
148-25304-00-00
Unavailable
3
RIM
94418-16025-00
Unavailable
4
TIRE
94132-16046-00
Unavailable
5
TUBE
94230-16011-00
Unavailable
6
BAND, RIM
94330-16058-00
$20.99
7
SPACER
90560-17140-00
Unavailable
8
FLANGE, SPACER
146-25315-00-00
$7.99
9
BEARING(4HM)
93306-30317-00
$39.99
10
OIL SEAL
93104-25008-00
Unavailable
11
O-RING (70E)
93210-54534-00
Unavailable
12
PLATE, BRAKE SHOE
148-25321-00-00
Unavailable
13
BRAKE SHOE KIT
5R3-W253E-00-00
Unavailable
14
SPRING, BRAKE SHOE RETURN
148-25333-00-00
Unavailable
15
CAMSHAFT
169-25351-00-00
Unavailable
16
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
17
SEAL, CAM SHAFT
148-25359-00-00
Unavailable
18
LEVER, CAMSHAFT
148-25355-00-00
Unavailable
19
BOLT(3DM)
97024-06020-00
Unavailable
20
NIPPLE, GREASE
93700-06M03-00
Unavailable
21
DAMPER, CLUTCH
148-25364-00-00
Unavailable
22
CLUTCH,HUB
168-25366-00-00
Unavailable
23
SPROCKET,DRIVN 33T
148-25433-10-00
Unavailable
24
WASHER
148-25412-00-00
Unavailable
25
BOLT (583)
90101-10303-00
Unavailable
26
AXLE, WHEEL
146-25381-00-00
Unavailable
27
NUT,SPEC'L SHAPE
90179-22124-00
Unavailable
28
PULLER, CHAIN (RH)
148-25389-00-00
Unavailable
29
OIL SEAL
93105-32003-00
Unavailable
30
COLLAR
90387-23181-00
Unavailable
31
BEARING
93306-20503-00
Unavailable
32
AXLE, SPROCKET
148-25387-00-00
Unavailable
33
CIRCLIP(26H)
99009-52500-00
Unavailable
34
COVER, BRAKE PLATE
148-25327-00-00
Unavailable
35
COLLAR, WHEEL
148-25383-00-00
Unavailable
36
PULLER, CHAIN (LH)
148-25388-00-00
Unavailable
37
NUT,HEXAGON
90170-16083-00
Unavailable
38
. NUT
95380-08700-00
Unavailable
39
WASHER, PLAIN
92990-08200-00
Unavailable
40
BAR, TENSION
148-25371-00-00
Unavailable
41
BOLT
90109-10327-00
Unavailable
42
NUT, CASTLE
95307-10900-00
Unavailable
43
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
44
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
45
CLIP 136253750000
90468-12006-00
Unavailable
46
SPRING, TENSION BAR
148-25374-00-00
Unavailable
47
NUT, CASTLE
95307-10900-00
Unavailable
48
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
49
PIN, COTTER (648)
91490-20015-00
Unavailable
50
CHAIN
94505-25094-00
Unavailable
50
. MASTER LINKS
94615-25001-00
Unavailable
51
NUT, HEXAGON
95380-06600-00
Unavailable
52
SPRING, (180-27236-00)
90501-10245-00
Unavailable
53
SEAT, SPRING
148-27239-00-00
Unavailable
54
PIN 1562723700
90249-12008-00
Unavailable
55
NUT (25K)
90179-06411-00
Unavailable
56
PIN, COTTER
91490-16020-00
Unavailable
