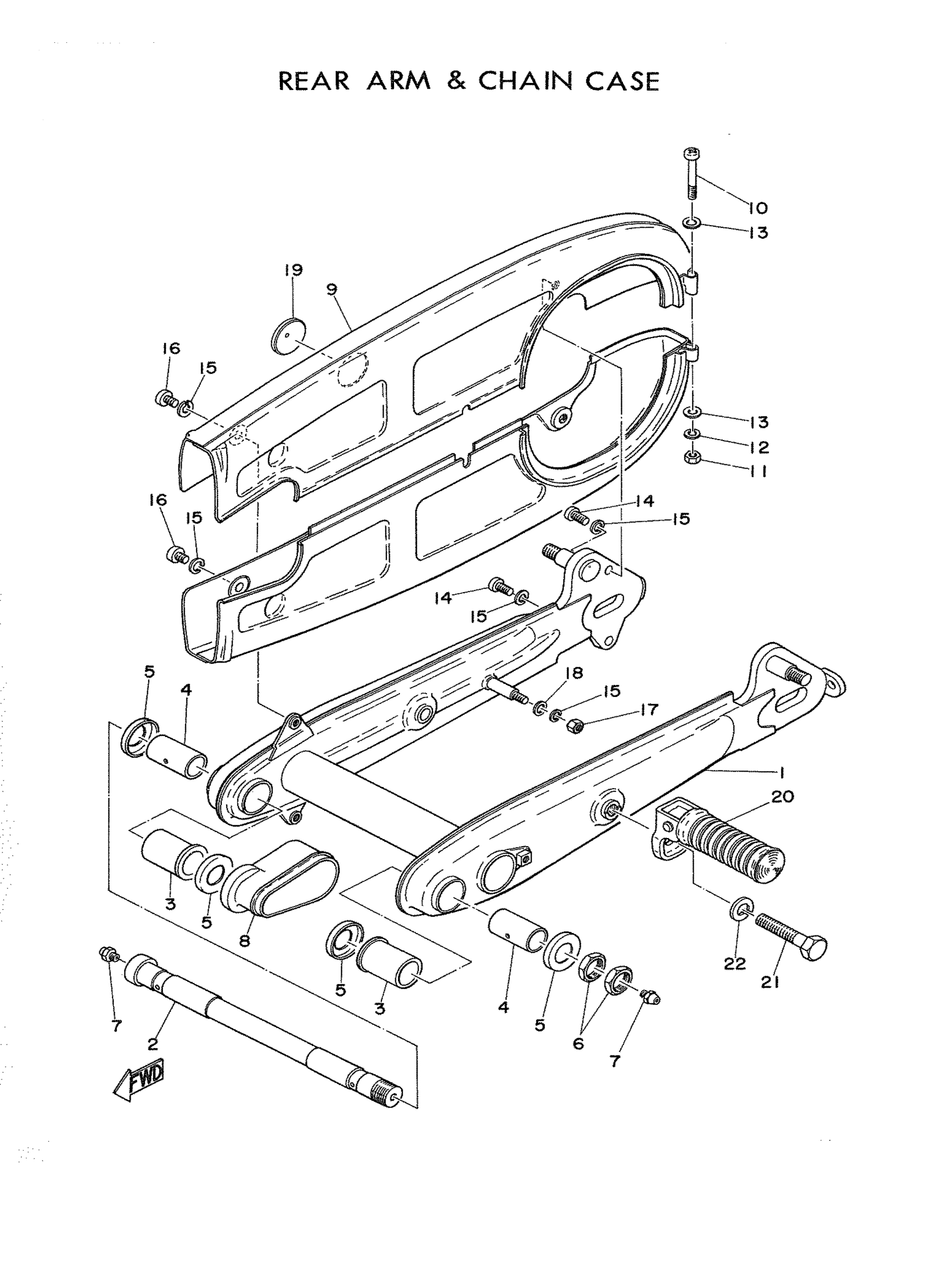

Yamaha YD3 (YDS2_1964) 148 1962 REAR ARM Diagram

#

Description
Price

1

REAR ARM

148-22110-00-00

Unavailable

2

SHAFT, PIVOT

148-22141-00-00

Unavailable

3

BUSH 1482212300

90386-22018-00

$36.99

4

COLLAR

90387-18451-00

Unavailable

5

COVER, THRUST

146-22128-00-00

Unavailable

6

NUT, PIVOT SHAFT

135-22143-00-00

Unavailable

7

NIPPLE, GREASE

93700-06M03-00

Unavailable

8

SEAL, GUARD

146-22151-00-00

Unavailable

9

CHAIN CASE

148-22311-00-00

Unavailable

10

SCREW PAN HEAD

98580-06545-00

$5.60

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

SCREW PAN HEAD

98580-06010-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

19

CAP

148-22315-00-00

Unavailable

20

REAR FOOTREST ASSY

120-27430-00-00

Unavailable

21

BOLT, HEXAGON

97013-10055-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
