Description

Price

1

PIPE, EXHAUST (LH)

148-14611-00-00

Unavailable

2

PIPE, EXHAUST (RH)

148-14621-00-00

Unavailable

3

RING, JOINT STOPPER

136-14778-00-00

Unavailable

4

NUT, RING

146-14612-00-00

Unavailable

5

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

6

GASKET, MUFFLER JOINT

148-14714-00-00

Unavailable

7

MUFFLER (LH)

148-14710-00-00

Unavailable

8

MUFFLER (RH)

148-14720-00-00

Unavailable

9

SILENCER,EXHAUST

156-14753-00-00

Unavailable

10

GASKET, EXHAUST

98507-05008-00

$3.55

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

BOLT, HEXAGON

97013-08016-00

$1.01

13

NUT(6L2)

95333-08600-00

$2.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

NUT (682)

95380-10700-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

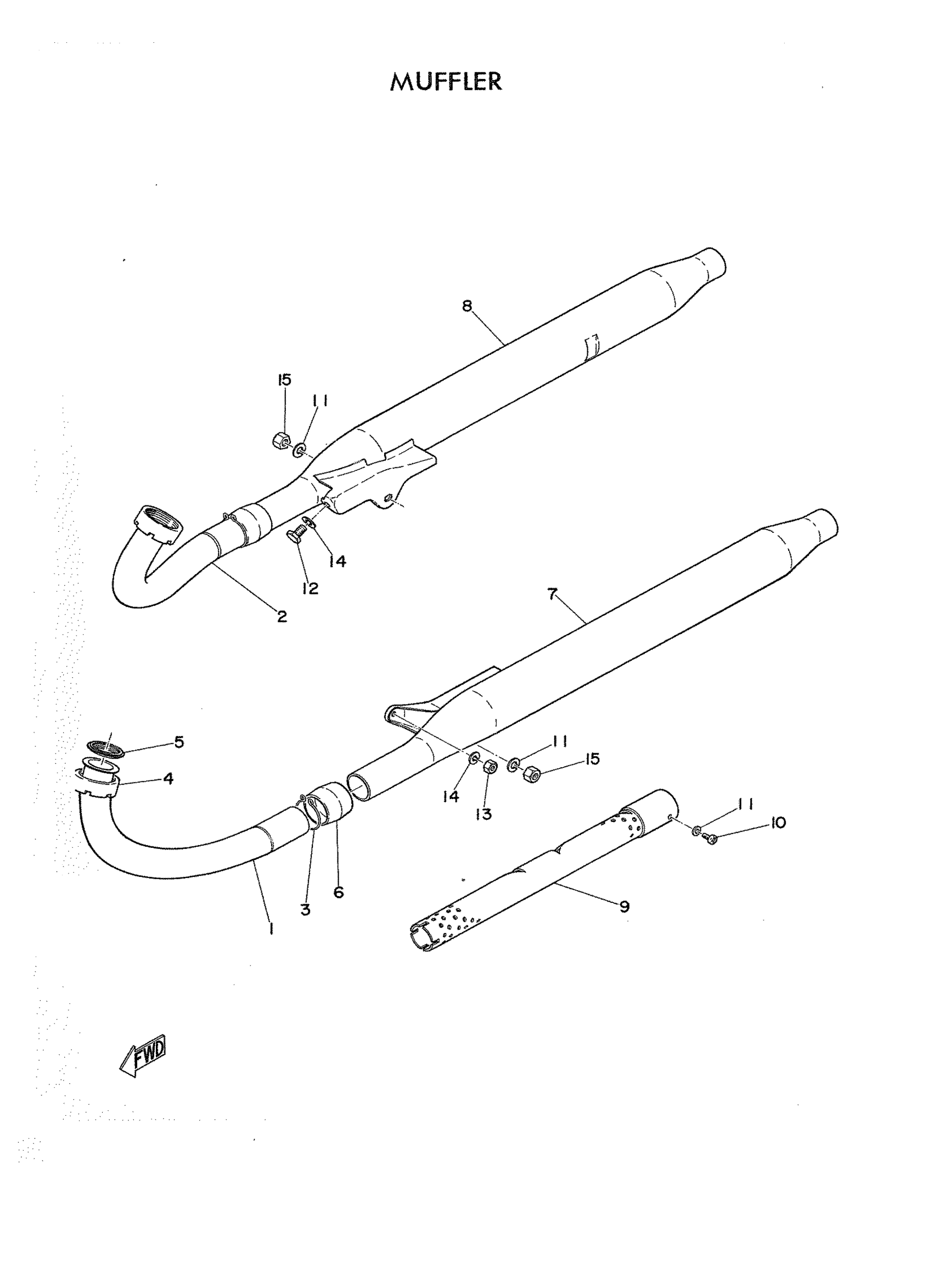

Yamaha YD3 (YDS2_1964) 148 1962 MUFFLER Diagram

PIPE, EXHAUST (LH)

PIPE, EXHAUST (RH)

RING, JOINT STOPPER

NUT, RING

GASKET, EXHAUST PIPE

GASKET, MUFFLER JOINT

MUFFLER (LH)

MUFFLER (RH)

SILENCER,EXHAUST

GASKET, EXHAUST

YBS67-10 WASHER, SPRING

BOLT, HEXAGON

NUT(6L2)

YBS67-8 WASHER, SPRING

NUT (682)

YBS66-6 WASHER, PLAIN
