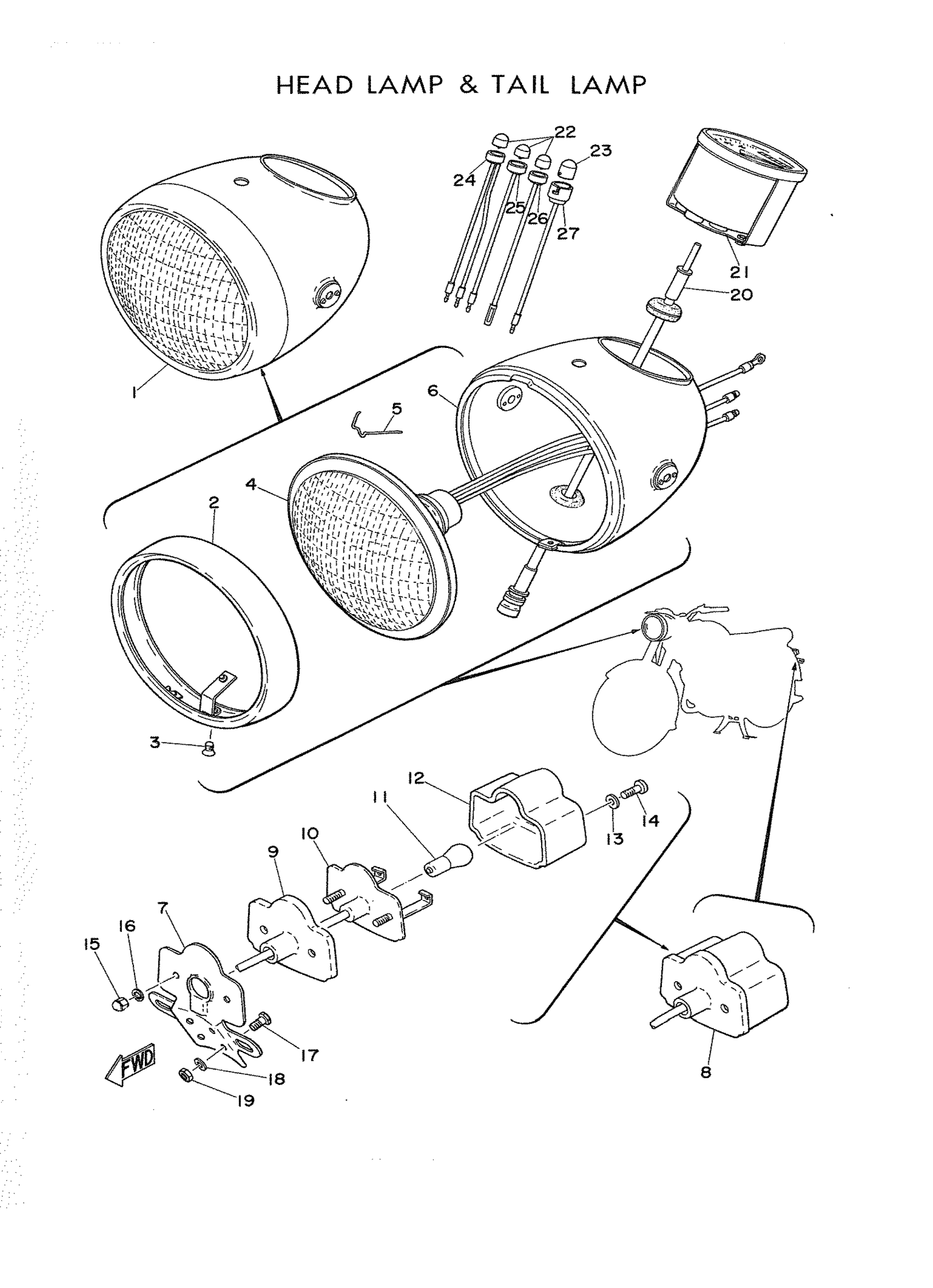

Yamaha YD3 (YDS2_1964) 148 1962 HEAD LAMP AND TAIL LAMP Diagram

#

Description
Price

1

HEAD LAMP BODY

148-84111-61-00

Unavailable

2

. RIM

148-84115-60-00

Unavailable

3

. SCREW, RIM FITTING

148-84125-00-00

Unavailable

4

LENS ASY

148-84320-60-00

Unavailable

5

SPRING, REFLECTOR SET

148-84324-00-00

$6.99

6

. BODY, HEAD LAMP

148-84311-00-00

Unavailable

7

BRACKET, LICENSE

148-84751-00-00

Unavailable

8

TAIL LAMP UNIT ASSY

148-84710-60-00

Unavailable

9

. COVER, TAILLIGHT

124-84516-60-00

Unavailable

10

. BASE, TAIL LAMP

148-84511-60-00

Unavailable

11

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

12

. LENS, TAILLIGHT

124-84521-60-00

Unavailable

13

. WASHER

124-84522-60-00

Unavailable

14

SCREW,PAN HEAD

92503-04015-00

Unavailable

15

NUT (J17)

95380-06800-00

$8.49

16

WASHER, TOOTH

92990-06300-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT

92801-06100-11

Unavailable

20

SPEEDOMETER CABLE ASSY

148-83550-00-00

Unavailable

21

SPEEDOMETER

148-83510-40-00

Unavailable

22

. BULB, METER

148-83516-20-00

Unavailable

23

. BULB, METER

123-83516-10-00

Unavailable

24

. SOCKET, FLASHER

148-83538-00-00

Unavailable

25

. SOCKET, CHARGE

148-83539-00-00

Unavailable

26

BRACKET,LICENCE

152-84551-60-35

Unavailable

27

. SOCKET, METER

148-83538-20-00

Unavailable
