1962 Yamaha YDS2_1964 (YD3) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1962 Yamaha YDS2_1964 (YD3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

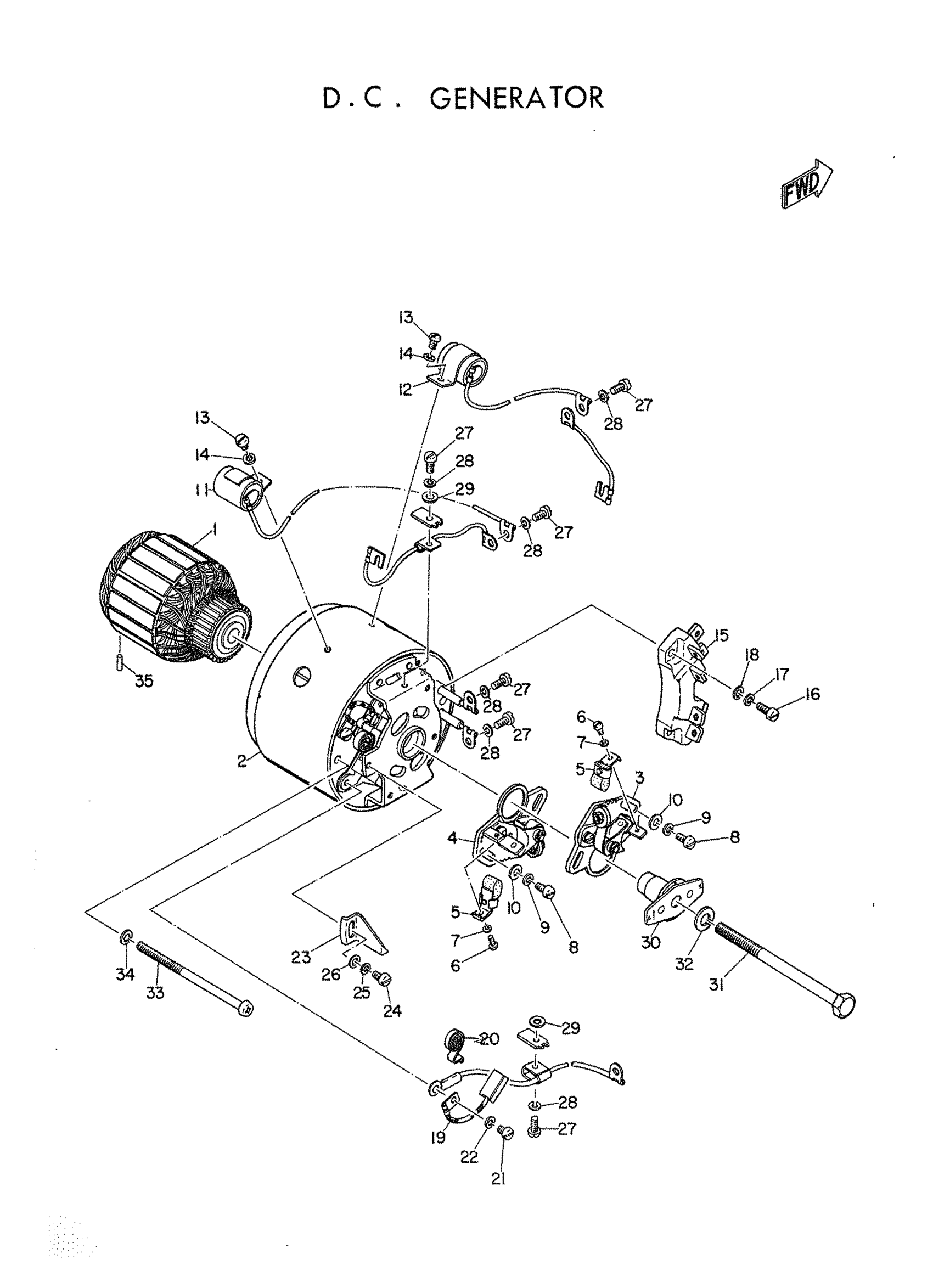

1962 Yamaha YDS2_1964 (YD3) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARMATURE

148-81255-10-00

1
Out of stock

2

STATOR ASSEMBLY

148-81110-10-00

1
Out of stock

3

CONTACT BREAKER ASSY (LH)

148-81221-11-00

1
Out of stock

4

CONTACT BREAKER ASSY (RH)

148-81222-10-00

1
Out of stock

5

CONDENSER

146-81126-10-00

1
Out of stock

6

LUBRICATOR

148-81231-10-00

1
Out of stock

8

BRUSH

146-81211-10-00

1
Out of stock

9

SPRING, BRUSH

146-81113-10-00

1
Out of stock

10

SCREW,PAN HEAD

164-81246-20-00

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

. SCREW

92503-03006-00

1
Out of stock

14

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

15

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

17

GASKET, EXHAUST

98507-05008-00

—

$2.69

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

GOVERNOR ASY

148-81153-01-00

1
Out of stock

20

SCREW, STATOR

146-81135-00-00

1
Out of stock

21

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

22

BOLT

148-81152-10-00

1
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

PIN, DOWEL

93603-14026-00

—
Out of stock
