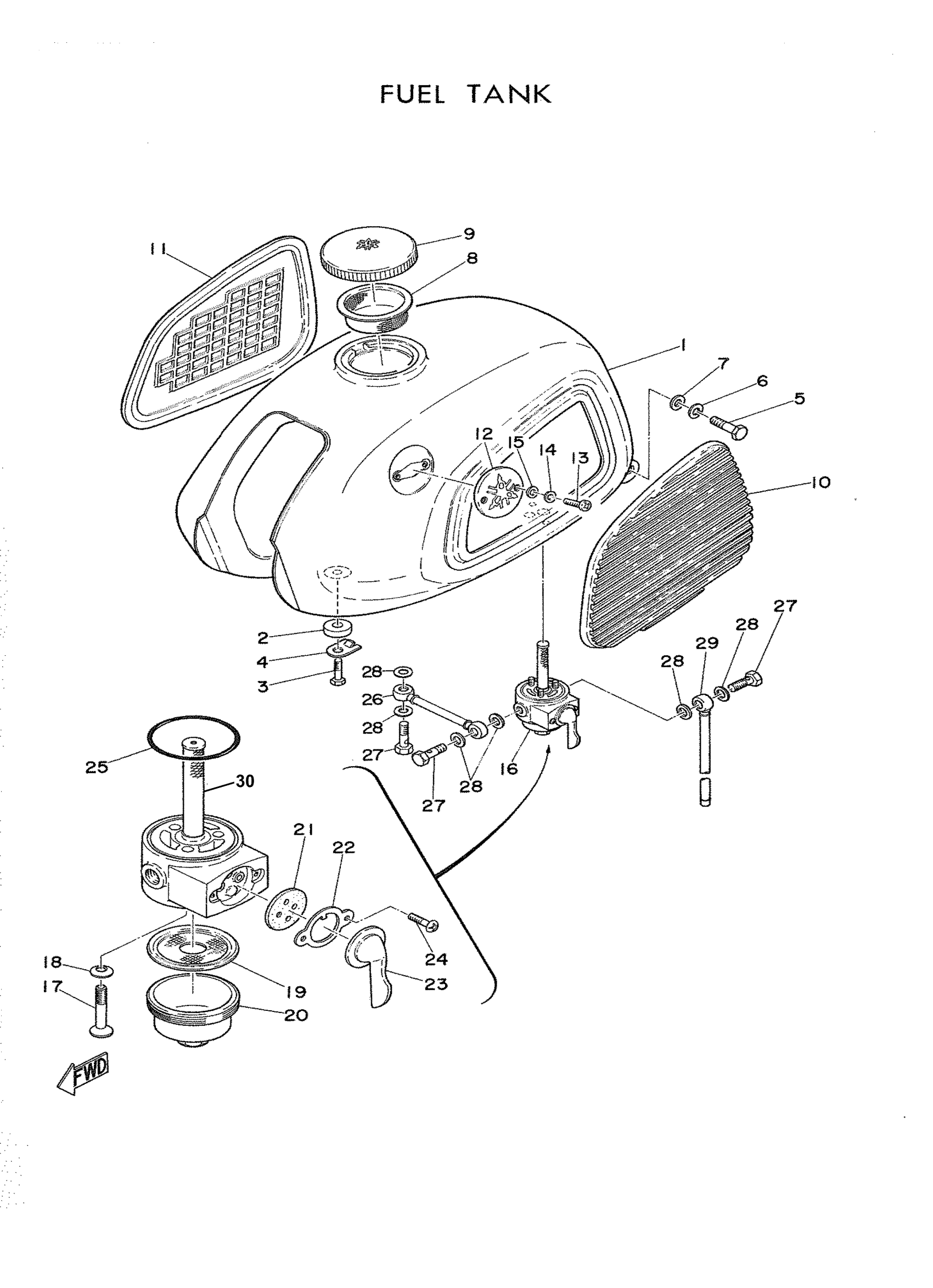

Yamaha YD3 (YDS2_1964) 148 1962 FUEL TANK Diagram
#
1
FUEL TANK
148-24110-00-00
Unavailable
2
DAMPER, TANK LOCATING
146-24181-00-00
Unavailable
3
BOLT(3DM)
97024-06020-00
$8.49
4
WASHER, LOCK
148-24169-00-00
Unavailable
5
BOLT(JA9)
90101-08691-00
$4.29
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
WASHER, PLAIN
92990-08200-00
Unavailable
8
STRAINER
146-24167-00-00
Unavailable
9
CAP ASSY
7V5-24610-01-00
$48.99
10
GRIP, KNEE (LH)
148-24171-00-00
Unavailable
11
GRIP, KNEE (RH)
148-24172-00-00
Unavailable
12
EMBLEM 1
137-24161-00-00
Unavailable
13
SCREW, PAN HEAD
92503-04008-00
Unavailable
14
WASHER,PLATE
90202-04004-00
Unavailable
15
WASHER,PLATE
90202-03002-00
Unavailable
16
FUEL COCK ASSEMBLY 1
146-24500-00-00
Unavailable
17
. SCREW
92701-05030-00
Unavailable
18
. GASKET
146-24513-00-00
Unavailable
19
. NET, FILTER
146-24515-00-00
Unavailable
20
. CUP
146-24521-00-00
Unavailable
21
. VALVE
146-24523-00-00
Unavailable
22
. PLATE, LEVER FITTING
146-24525-00-00
Unavailable
23
. LEVER, COCK
146-24524-00-00
Unavailable
24
SCREW,PAN HEAD
92501-03008-00
Unavailable
25
. GASKET, BODY
146-24512-00-00
Unavailable
26
PIPE,LEVEL
136-24331-01-00
Unavailable
27
BOLT, BANJO
146-24527-00-00
Unavailable
28
GASKET, PIPE
146-24528-00-00
Unavailable
29
PIPE, FUEL
146-24311-00-00
Unavailable
30
. STRAINER
146-24514-00-00
Unavailable
