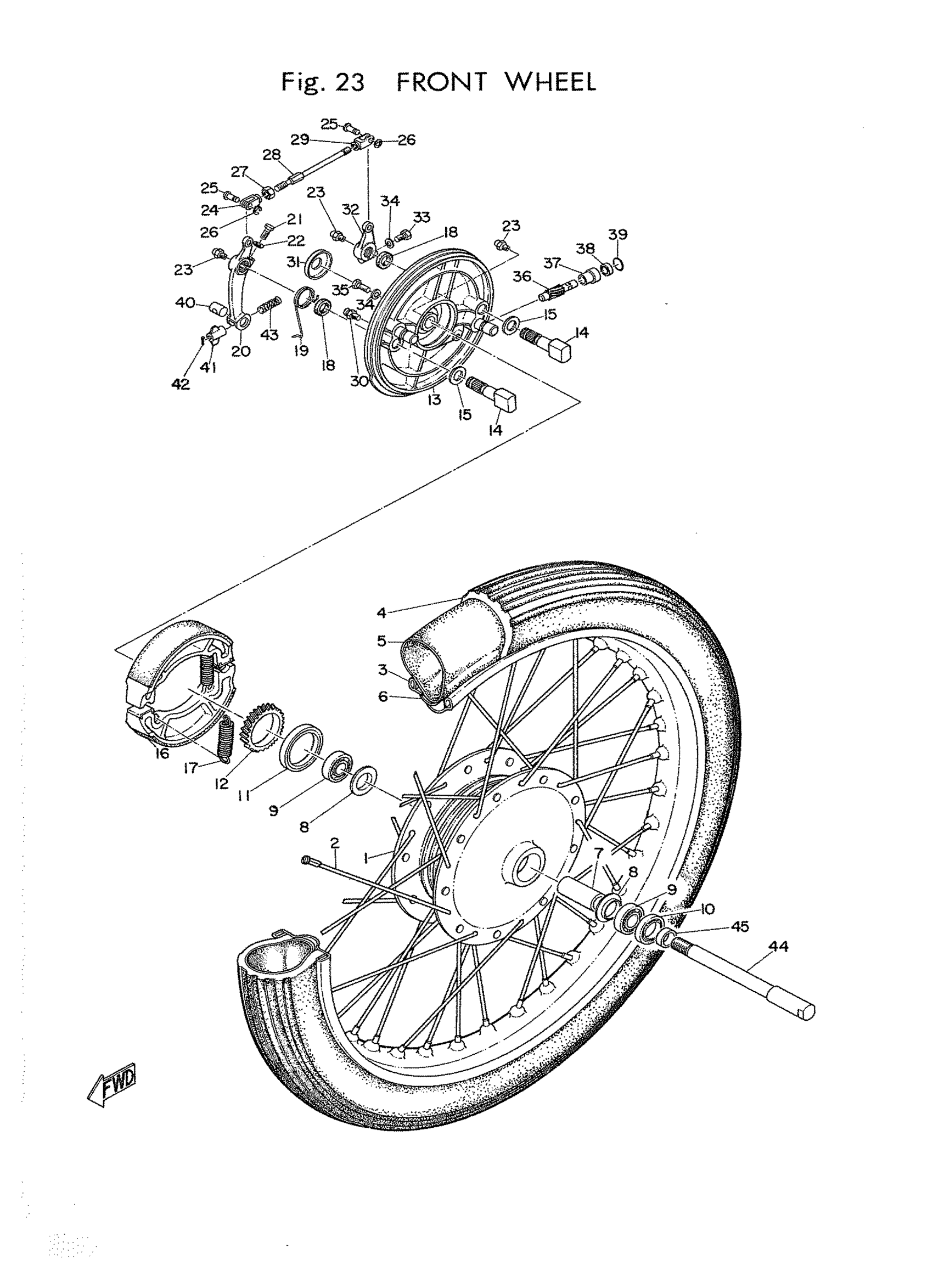

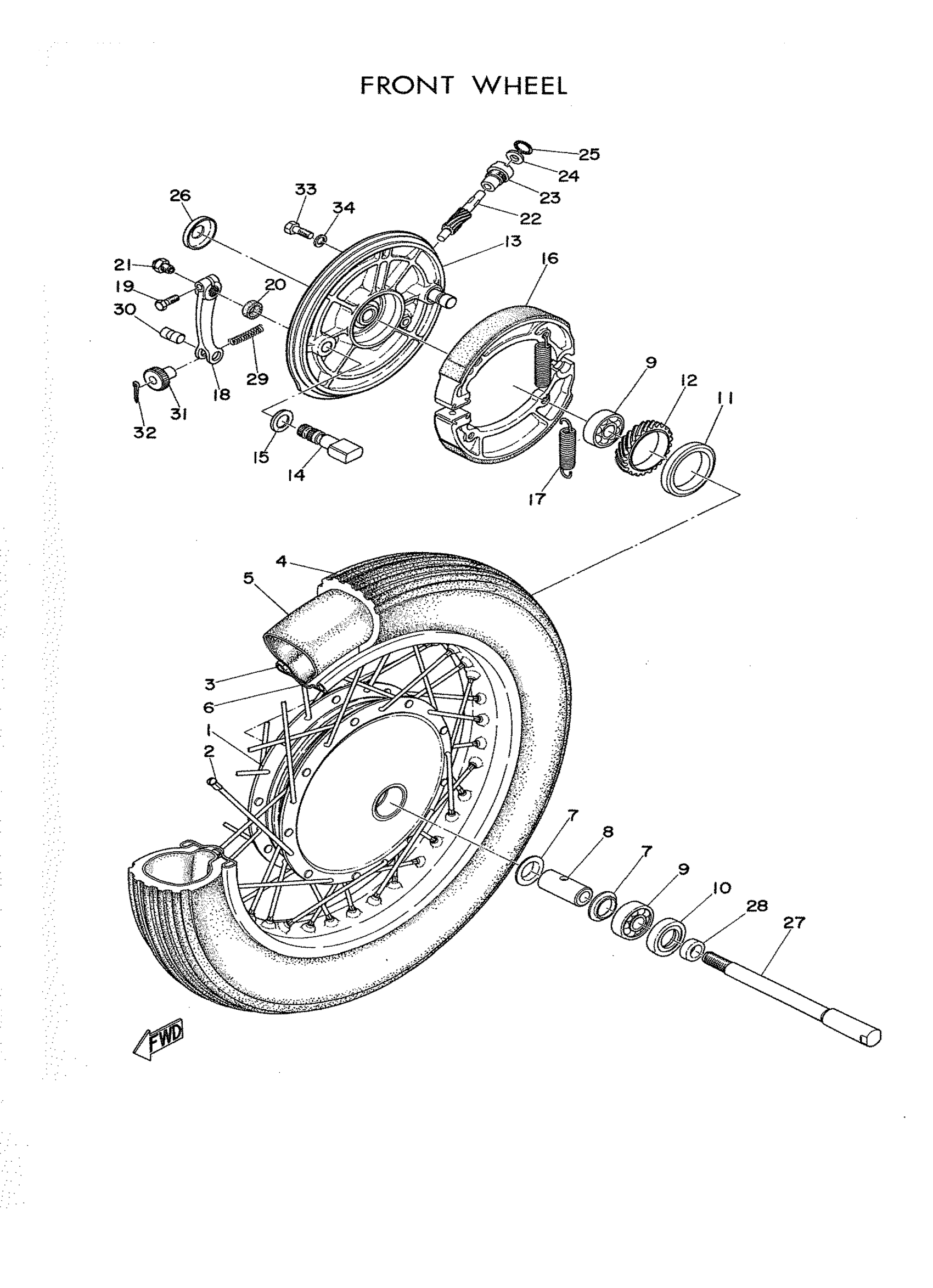

Yamaha YD3 (YDS2_1964) 148 1962 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

148-25111-00-00

Unavailable

2

SPOKE SET, FRONT

148-25104-00-00

Unavailable

3

RIM

94418-16025-00

Unavailable

4

TIRE

94132-16045-00

Unavailable

5

TUBE

94230-16011-00

Unavailable

6

BAND, RIM

94330-16058-00

$20.99

7

FLANGE, SPACER

146-25115-00-00

$6.99

8

SPACER, BEARING

148-25117-00-00

Unavailable

9

BEARING

93306-20202-00

Unavailable

10

OIL SEAL, OS-TYPE

93105-22001-00

Unavailable

11

OIL SEAL, OS-TYPE

93107-50003-00

Unavailable

12

GEAR, DRIVE

148-25135-00-00

Unavailable

13

PLATE, BRAKE SHOE

148-25121-00-00

Unavailable

14

CAMSHAFT

168-25151-00-00

Unavailable

15

SHIM, CAM SHAFT

148-25353-00-00

$6.99

16

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

17

SPRING, BRAKE SHOE RETURN

148-25333-00-00

Unavailable

18

LEVER, CAMSHAFT 1

148-25155-00-00

Unavailable

19

BOLT, HEXAGON

97017-06025-00

Unavailable

20

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

GEAR,METER

148-25138-00-00

Unavailable

23

BUSHING

109-25136-00-00

Unavailable

24

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

25

O-RING (26H)

93210-14579-00

Unavailable

26

COVER, BRAKE PLATE

148-25327-00-00

Unavailable

27

AXLE, WHEEL

148-25181-00-00

Unavailable

28

COLLAR

146-25183-00-00

Unavailable

29

SPRING,COMPRESSION

90501-06024-00

Unavailable

30

PIN 1562723700

90249-12008-00

Unavailable

31

NUT (25K)

90179-06411-00

Unavailable

32

PIN, COTTER

91490-16020-00

Unavailable

33

BOLT(3DM)

97024-06020-00

Unavailable

33

BOLT(3DM)

97024-06020-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable
