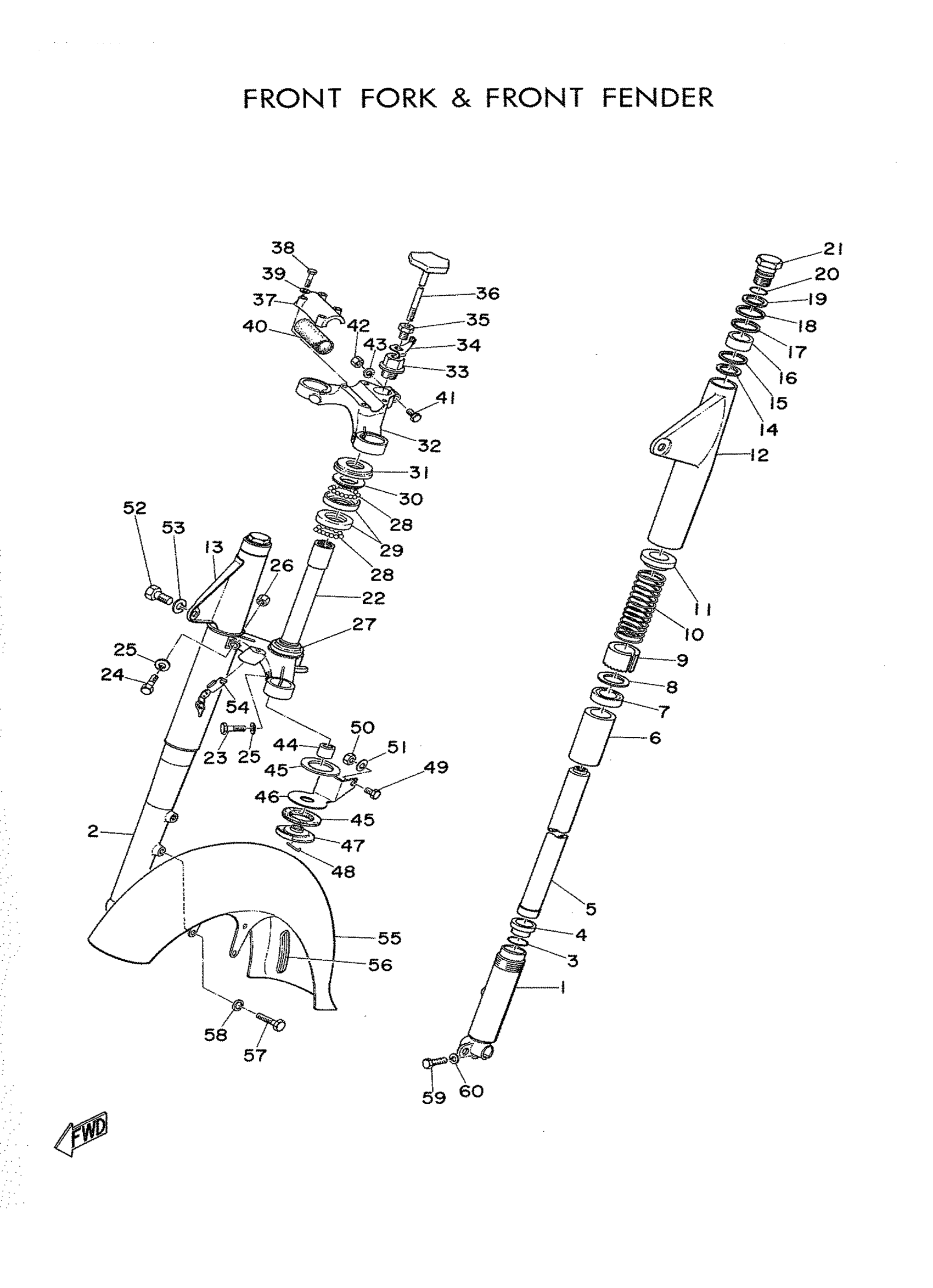

Yamaha YD3 (YDS2_1964) 148 1962 FRONT FORK AND FENDER Diagram

#

Description
Price

1

TUBE, OUTER (LH)

146-23126-00-00

Unavailable

2

TUBE, OUTER (RH)

146-23136-00-00

Unavailable

3

O-RING

146-23147-00-00

Unavailable

4

METAL, SLIDE

146-23125-00-00

Unavailable

5

TUBE, INNER

146-23124-00-00

Unavailable

6

NUT,OUTER TUBE

146-23127-00-00

Unavailable

7

OIL SEAL

156-23145-00-OO

Unavailable

8

SEAT, SPRING LOWER

146-23143-00-00

Unavailable

9

SEAL, DUST

146-23144-00-00

Unavailable

10

SPRING, FORK

146-23141-00-00

Unavailable

11

SEAT,SPRING UPPER

156-23142-00-00

Unavailable

12

COVER,UPPER 1

146-23121-00-81

Unavailable

13

COVER,UPPER 2

146-23131-00-81

Unavailable

14

WASHER

146-23139-00-00

Unavailable

15

PACKING

146-23138-00-00

Unavailable

16

COLLAR

146-23113-00-00

Unavailable

17

PACKING

146-23137-00-00

Unavailable

18

GUIDE, COVER UPPER

146-23115-00-00

Unavailable

19

WASHER, CAP

146-23112-00-00

Unavailable

20

PACKING(O-RING)

146-23114-00-00

Unavailable

21

BOLT, CAP

177-23111-00-00

Unavailable

22

UNDER BRACKET

146-23340-00-33

Unavailable

23

BOLT 1

146-23346-00-00

Unavailable

24

BOLT 1

146-23346-00-00

Unavailable

25

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

26

NUT (682)

95380-10700-00

Unavailable

27

RACE, BALL 1

B6E-23411-00-00

Unavailable

28

BALL

93501-04011-00

Unavailable

29

RACE, BALL 2

B6E-23412-00-00

Unavailable

30

RACE, BALL 1

B6E-23411-00-00

Unavailable

31

COVER, BALL RACE 1

146-23415-00-00

Unavailable

32

CROWN, HANDLE

146-23435-00-00

Unavailable

33

BOLT,UNION

90401-24022-00

Unavailable

34

SPRING, DAMPER

146-23428-00-00

Unavailable

35

GUIDE, DAMPER

146-23424-00-00

Unavailable

36

SHAFT,DAMPER

148-23419-09-00

Unavailable

37

HOLDER, HANDLE UPPER

146-23441-00-00

Unavailable

38

BOLT, HANDLE FITTING 2

146-23452-00-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

DAMPER, HANDLE

136-23445-00-00

Unavailable

41

BOLT

91203-08200-00

Unavailable

42

NUT

92803-08040-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

44

HOLDER, DAMPER

148-23434-00-00

Unavailable

45

DAMPER, FRICTION

156-23425-00-00

Unavailable

46

PLATE,DAMPER 2

146-23422-00-33

Unavailable

47

PLATE,DAMPER 1

169-23421-00-33

Unavailable

48

PIN, COTTER

156-23433-00-00

Unavailable

49

BOLT

9120-08015-00

Unavailable

50

NUT(6L2)

95333-08600-00

Unavailable

51

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

52

BOLT

97014-08040-00

Unavailable

53

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

54

STEERING LOCK ASSY

146-23480-00-00

Unavailable

55

FRONT FENDER COMPLETE

148-21510-00-00

Unavailable

56

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

57

BOLT(62E)

97013-08012-00

Unavailable

58

WASHER, SPRING

92995-06100-00

Unavailable

59

BOLT

97013-08035-00

Unavailable

60

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
