1962 Yamaha YDS2_1964 (YD3) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1962 Yamaha YDS2_1964 (YD3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

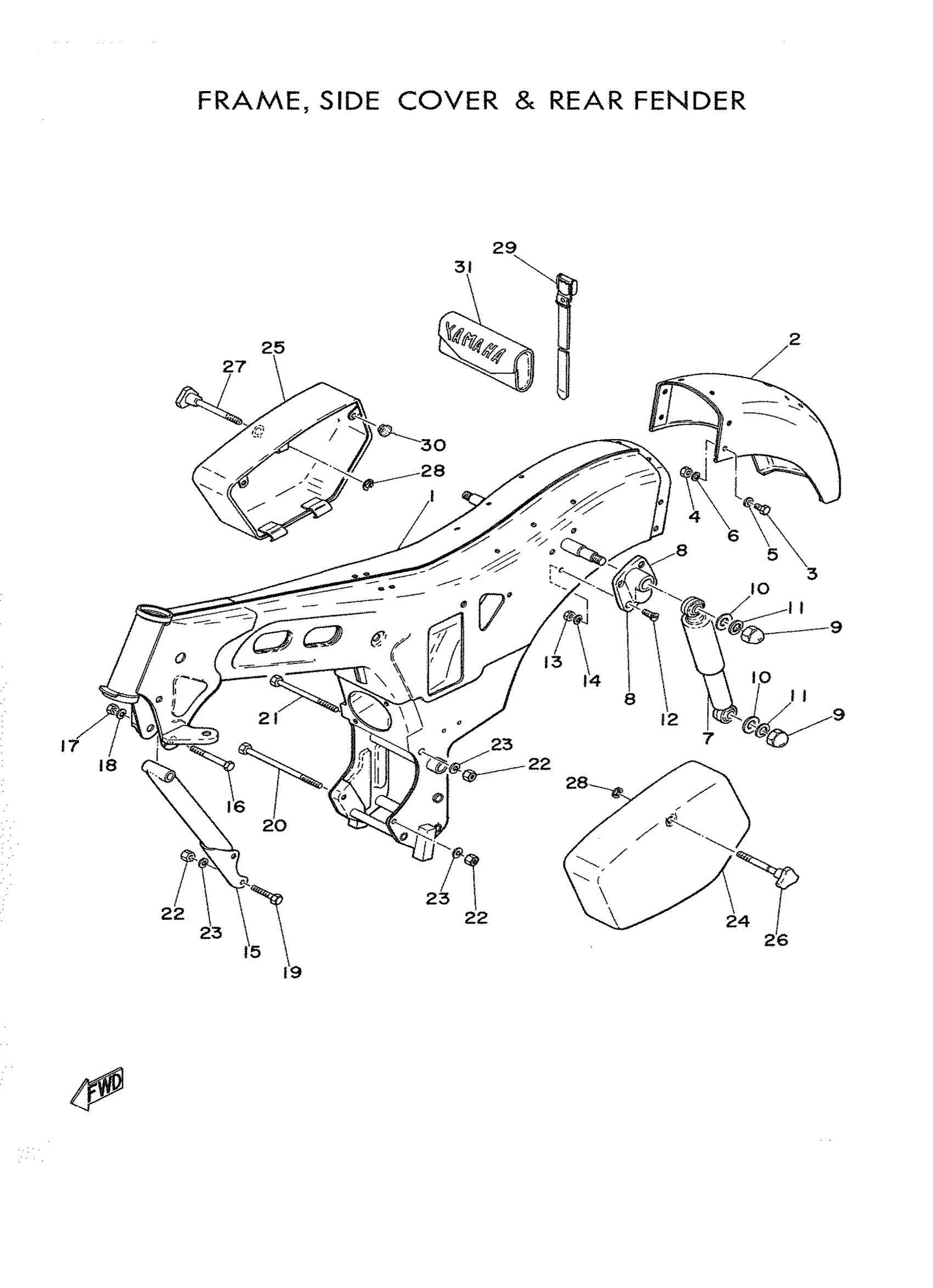

1962 Yamaha YDS2_1964 (YD3) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME ASSY

148-21110-00-00

1
Out of stock

2

REAR FENDER

148-21610-00-00

1
Out of stock

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

4

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

SHK/ABS ASY,REAR

148-22210-00-81

1
Out of stock

8

BRACKET,RR SHK/ABS

146-21381-00-33

1
Out of stock

9

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

10

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

WASHER, SPRING

150-21491-00-00

1
Out of stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

DOWN TUBE COMP.

146-21820-00-00

1
Out of stock

16

BOLT, FLANGE(7LU)

95817-10070-00

—

$5.11

In stock

17

NUT(3BM)

95314-10600-00

—

$1.74

In stock

18

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

19

BOLT

97013-08045-00

—
Out of stock

20

BOLT,HEXAGON

97301-08150-00

1
Out of stock

21

BOLT,HEXAGON

97321-08135-00

1
Out of stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

COVER, SIDE (LH)

148-21711-00-00

1
Out of stock

25

COVER, SIDE (RH)

148-21721-00-00

1
Out of stock

26

KNOB, SIDE COVER (LH)

146-21714-00-00

1
Out of stock

27

KNOB, SIDE COVER (RH)

146-21724-00-00

1
Out of stock

28

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

29

BAND, TOOL

146-21376-00-00

1
Out of stock

30

DAMPER

146-21717-00-00

1
Out of stock

31

TOOL KIT

171-28100-01-00

1
Out of stock
